Omron POWLI User Manual

14

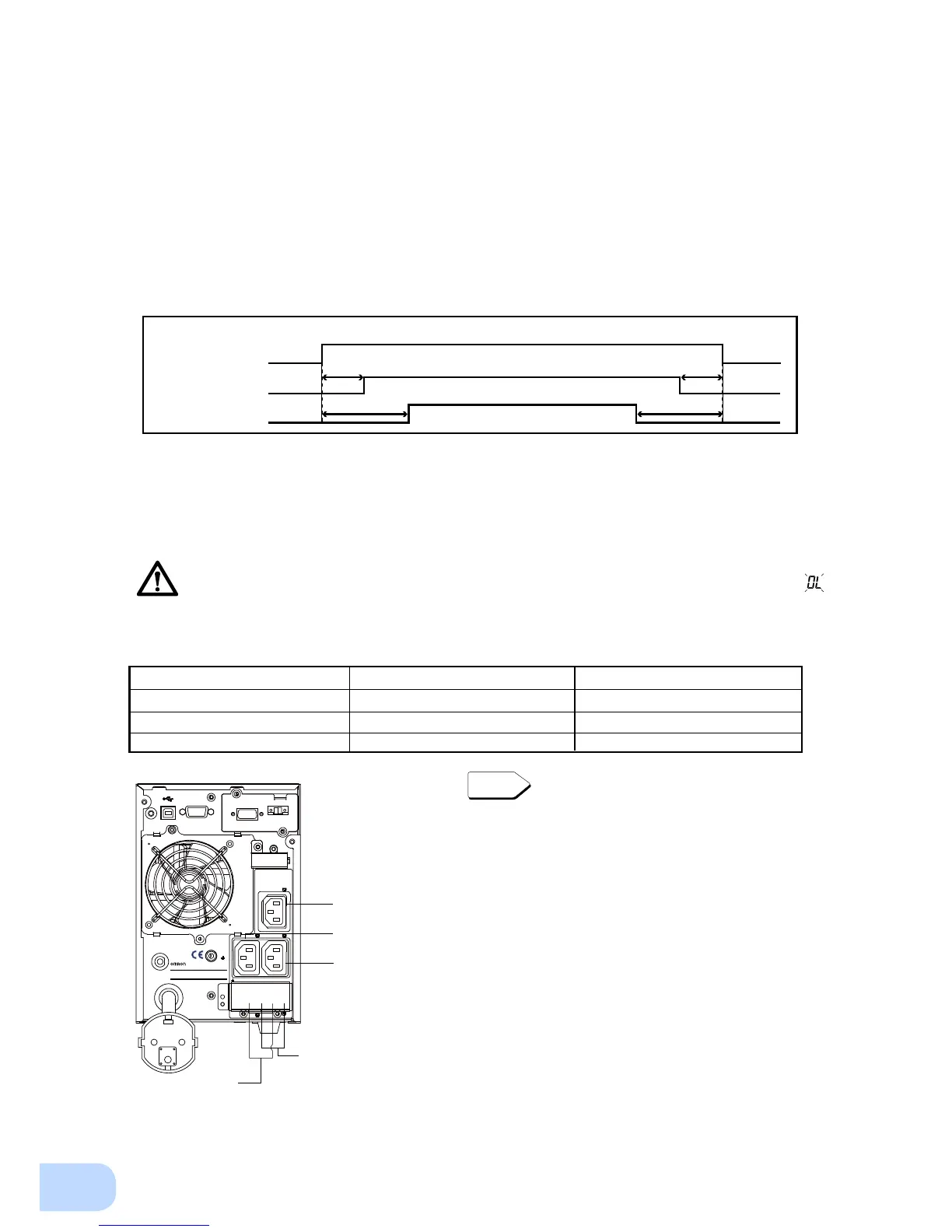

2. Installation and Connection
2-3-1 Connecting a device to the power supply output (BU1002SWG)
(1) Connect devices that require backup to the unit's power supply output receptacle or output terminal
block.
Group A
Group B
Group B
Group C
Group C
USB
RS232C
OPTION SLOT
OUTPUT
AC220-240V
50/60Hz 4.6A Max 1
φ
3W
OUPUT POWER
1kVA / 700W Max.
AC INPUT
OVER CURRENT
PROTECTION 10A
INPUT AC220-240V
50/60Hz 5.8A 1
φ
3W
COOLING FAN
Uninterrup tible P ower Supply
MODEL : BU1002SWG
Rated Voltage: AC220-240V
Max. Current: 5.8A Rated Freq.:50/60Hz
GND
B
A
C
G
C
B
L2C L2B L1C L1B
OMRON Corporation MADE IN TAIWAN
Make sure that the total capacity of the devices connected to the output receptacle does
not exceed the output rated capacity of the BU1002SWG. If the overload indication (
) is
displayed, reduce the number of connected devices.
BU1002SWG (Rated value of output capacity: Max. 1kVA/700W)
“Power supply output” group Output receptacle Output terminal block
Group A C13: 1 (Rated capacity: 15A) –
Group B C13: 1 (Rated capacity: 15A) 1 line (Rated capacity: 20A)
Group C C13: 1 (Rated capacity: 15A) 1 line (Rated capacity: 20A)
Power supply output group A
Output ON
Time setting
Time setting
Time setting
Time setting
Output OFF
Power supply output group B
Power supply output group C
Group control of power supply output
See Page 13
See also
* In the factory setting, the time is set to 0 second.
2. Power supply output group B, C
•
The output start times for power supply output group B and C are independent of power supply out-
put group A, so they can be delayed or set to precede the output stop time.
•
The output start/stop time control funtion is available when using the included “PowerAct Pro” UPS
monitoring software, “UPS Power Manager” or “SNMP/Web card”.
•
Output ON/OFF can be controlled with the included UPS monitoring software while the BU1002SWG is
operating.
•
The delay settings and ON/OFF control described here can be performed independently for power
supply output group B and power supply output group C.
This function can be used to set the startup order of servers, peripheral devices, etc.
The output receptacles can also be forcibly turned ON/OFF remotely.
