Omron POWLI - BS Signal Range Settings; BS Signal Range Configuration

37
4
BU1002SWG / BU3002SWG
●
BS signal valid range setting (setting switch
7
)
…
Factory setting: OFF
OFF: The BS signal is always valid (receivable).
 Theunit’s“poweroutput”canbestoppedbyinputtinga“ON”backuppowersupplystopsignal(BS)
that continues for 10 seconds or more.
ON: The BS signal is valid (receivable) only when in Battery Mode. (The signal is not received when in
Commercial Power Mode.)
 Theunit’s“poweroutput”canbestoppedbyinputtinga“ON”backuppowersupplystopsignal(BS)
that continues for 0.01 (10 ms) seconds or more.
Use this setting in commercial operation when you do not want to stop operations when a backup
power supply stop signal (BS) is received.
•Auto startup operation when power is restored
Auto startup when power is restored is associated with setting switch
2
.
However, the unit does not start up when the BS signal is ON.
1 2 53 4 86 7
ON DIP
*1*1
*1
AC input

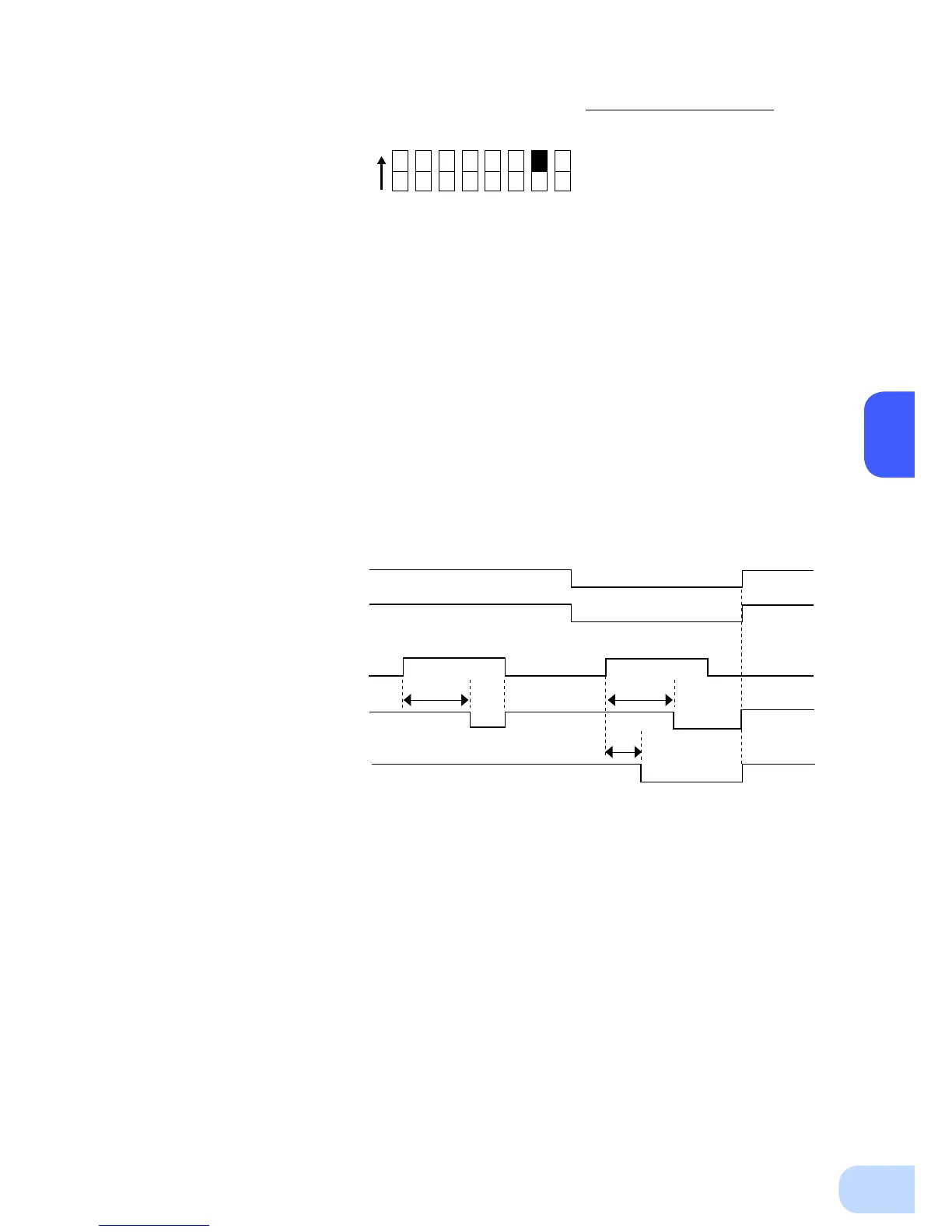

●BS signal valid range setting (setting switch 7 )
BS signal
Power supply output
(Setting switch OFF)
Power supply output
(Setting switch ON)
Note 1: Operation when setting switch 2 is OFF (auto startup is performed). When it is ON (auto startup is not performed) auto startup is not
performed.
10 sec. 10 sec.
0.01
sec.
ON
OFF
ON
OFF
ON
OFF
ON
OFF
Commercial Power Mode
Battery Mode
Operationg Mode
