Omron POWLI - Battery Replacement and Recycling; Attaching Front Panel and Recycling Steps

50
6. Maintenance and Inspection
7.

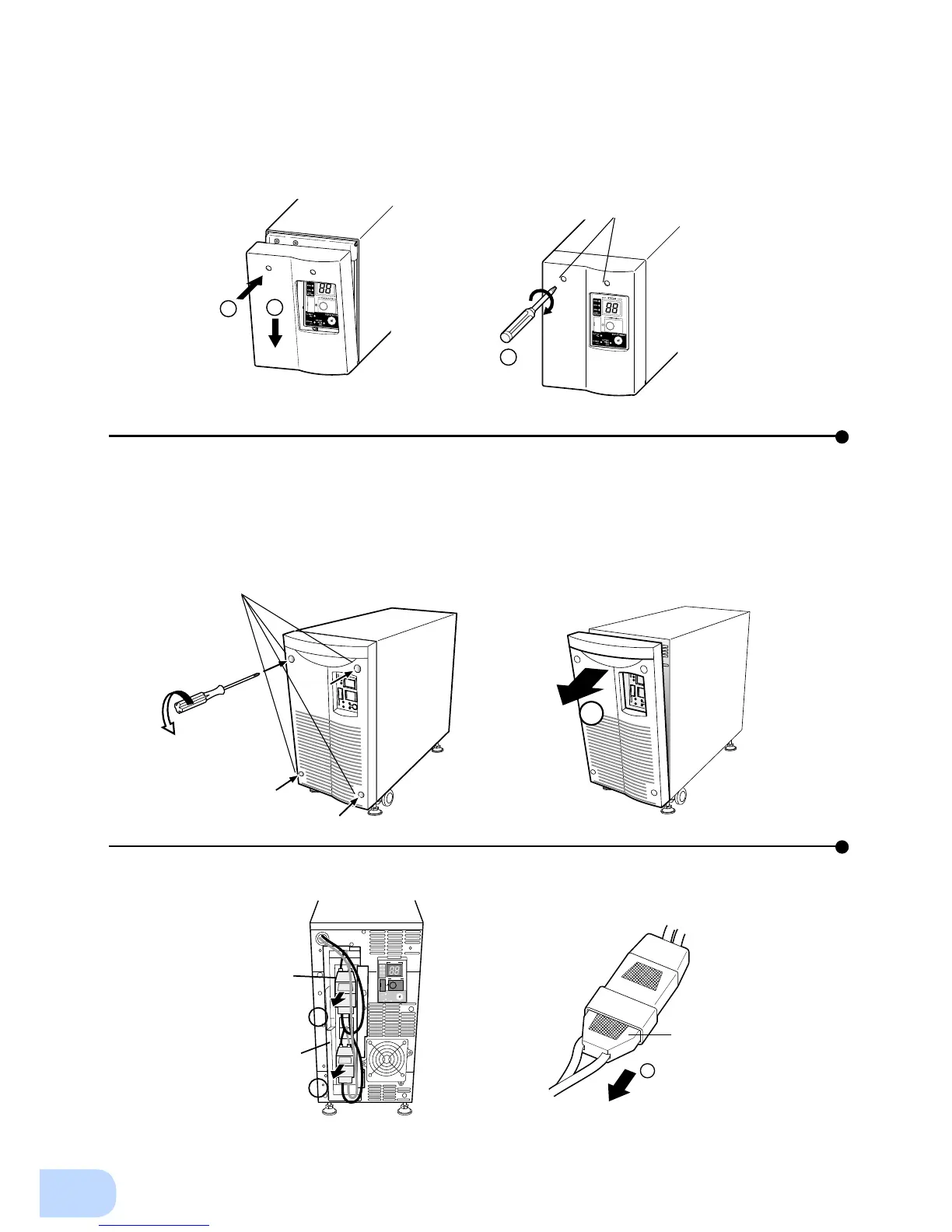

Attach the front panel.
Insert the lug at the bottom of the front panel into the hole in the main body
➀
and push it towards the
main body.
➁
Use a screwdriver to securely tighten (clockwise) the 2 screws at the top of the front panel.
➂
Battery replacement is now complete.
1
2
3
■
Procedure for recycling the battery
<BU3002SWG>
1.
Use a screwdriver to loosen (anti-clockwise rotation) the 4 screws on the front panel of the unit, until they
turn freely. (The screws cannot be removed from the front panel.)
Pull the front panel towards you to remove it.
➀
Disconnect by holding here.
2.
Remove the battery connectors from the lower plate cover
➀
and disconnect each of the connectors.
➁
2
1
Plate cover
Battery connector
1
STATUS
POWER ON/OFF
BEEP STOP/TEST
BYPASS
BATTERY
WEAK
OUTPUT
LOAD/
BATTERY
1
Tighten the
2 screws.
Loosen the
4 screws.
