Omron POWLI User Manual

58
7. Using the UPS monitoring software and contact signal
2. Install the included UPS monitoring software on each computers.
Software to install: PowerAct Pro
How to install: Refer to the separate “UPS monitoring software installation guide”.
* When connecting 2 or more computers to the UPS

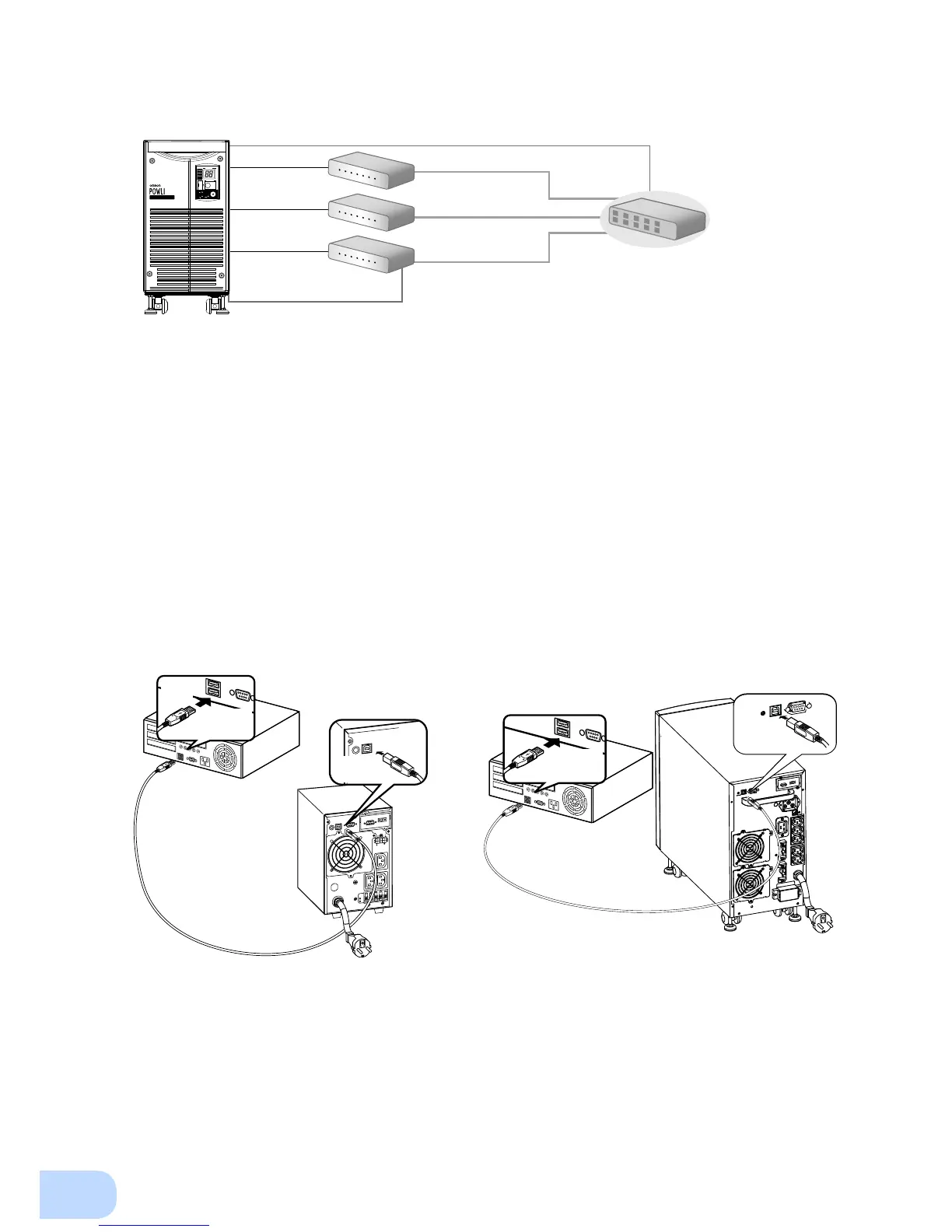

Switching hub
UPS
PC server 3
Power cable
Power cable
Power cable
LAN connection
Remote connection
The included connection cable (RS-232C or USB)
Power cable
PC server 2
PC server 1
Network
STATUS
POWER ON/OFF
BEEP STOP/TEST
BYPASS
BATTERY
WEAK
OUTPUT
LOAD/
BATTERY
BU3002SWG
●
When using UPS Power Manager “UPS monitoring software for Mac”
1. Connect the UPS to a computer.
Cable: Included USB communication cable
* Only 1 computer can be connected to the UPS
2. Install the included UPS monitoring software on the computer.
Software to install: UPS Power Manager
How to install: Refer to the separate “UPS monitoring software quick installation guide”.
<USB>
BU1002SWG
Connector
Connect to
USB
terminal
Connect to USB
port on PC
Included connection cable(USB)
Connector
Connect to
USB Port
on UPS
Connector
Connect to
USB
terminal
Connect to USB
port on PC
Included connection cable(USB)
Connector
Connect to
USB Port
on UPS
BU3002SWG
