Standards Compliance
5
5.2 European Standards
SIEPYEUOQ2A01A AC Drive Q2A Technical Manual 185
A - SW (ON) B - Screw (OFF)

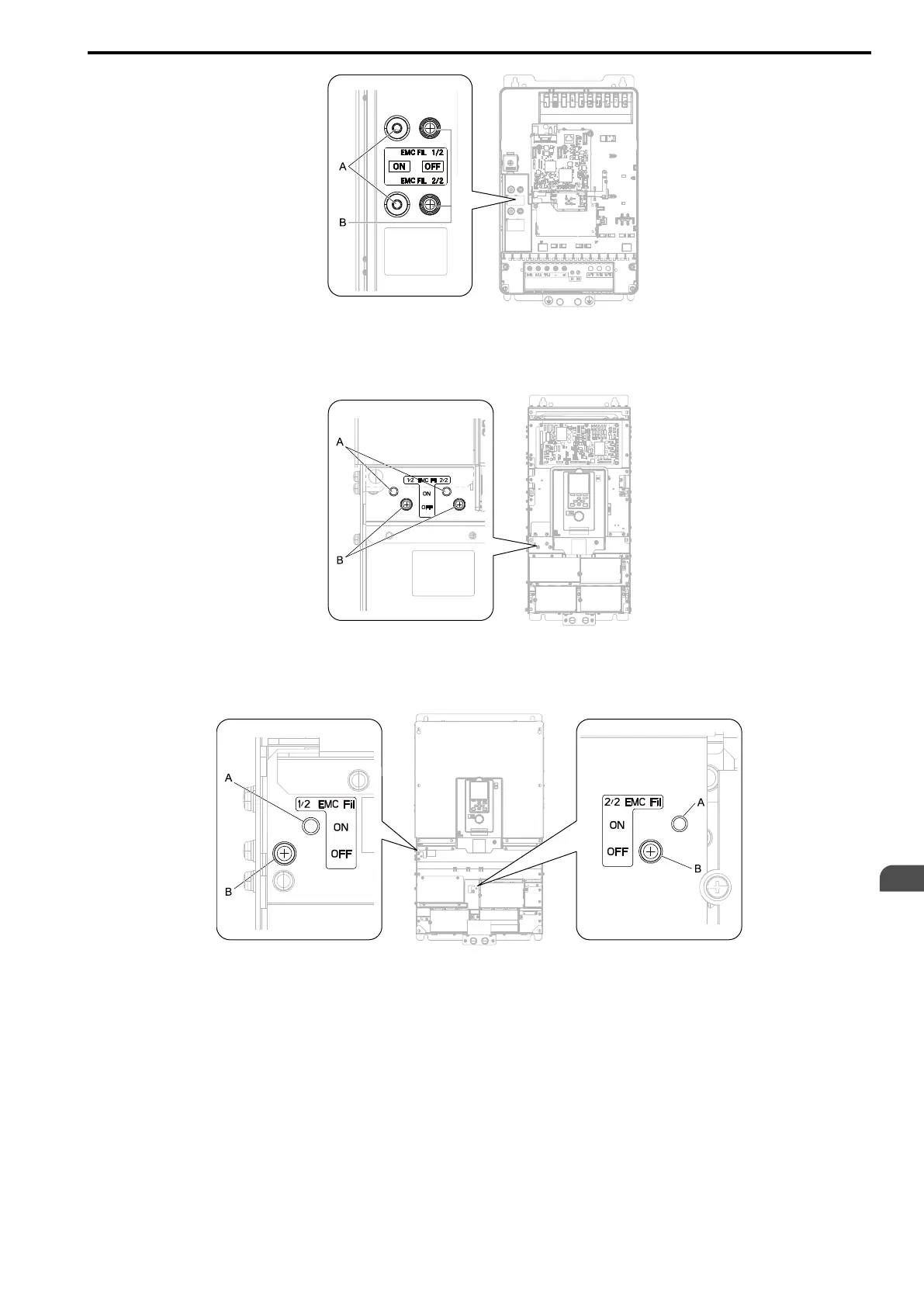

Figure 5.11 EMC Filter Switch Location (4075, 4089 - 4168)
A - SW (ON) B - Screw (OFF)
Figure 5.12 EMC Filter Switch Location (4208 - 4296)
A - SW (ON) B - Screw (OFF)
Figure 5.13 EMC Filter Switch Location ( 4371, 4389)
