5.2 European Standards
188 SIEPYEUOQ2A01A AC Drive Q2A Technical Manual

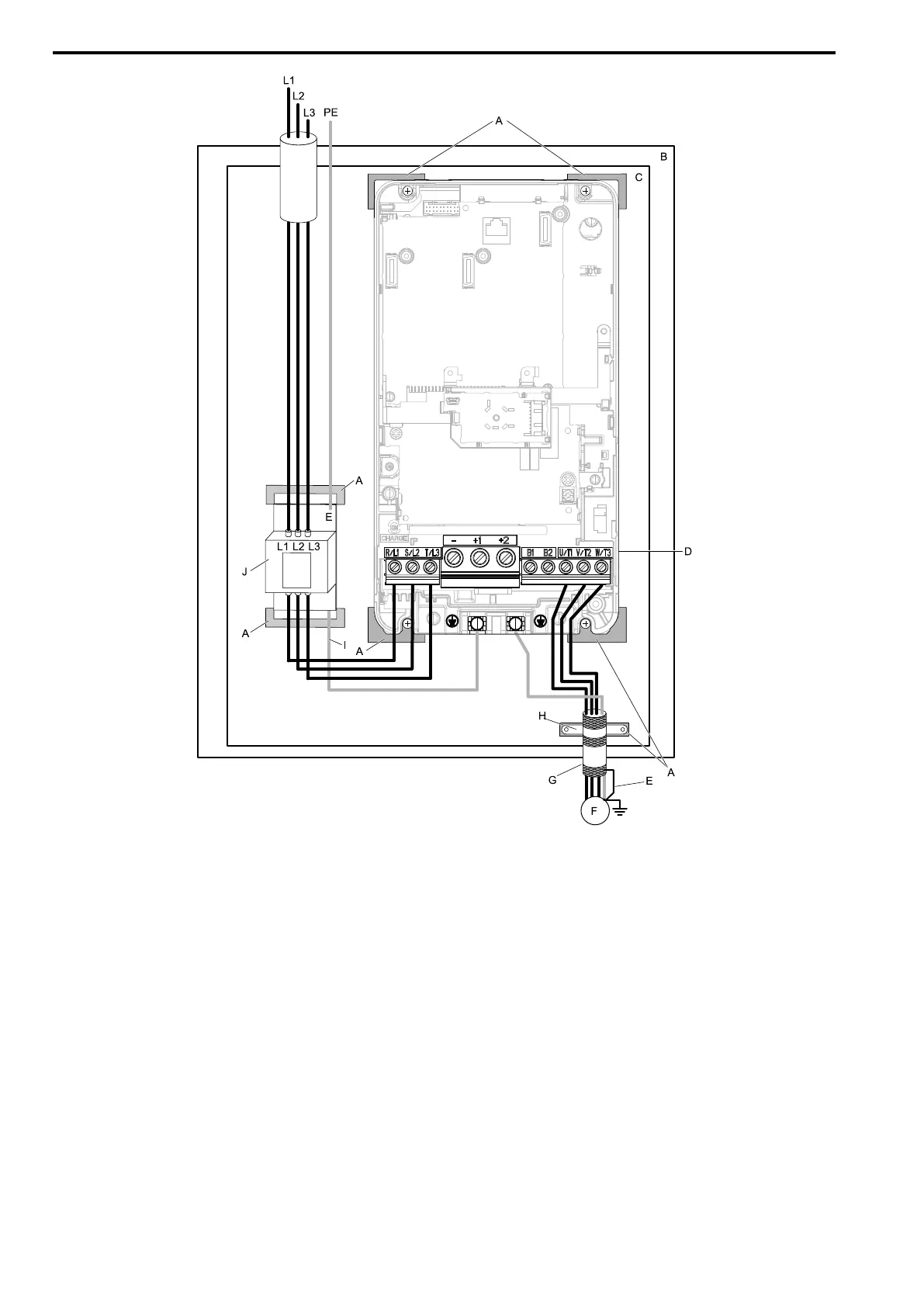

A - Grounding surface (Remove any
paint or sealant.)
B - Enclosure panel
C - Metal plate
D - Drive
E - Ground the shield.
F - Motor
G - Motor cable (Braided shield
cable: max. 10 m (32.8 ft.))
H - Cable clamp
I - Grounding wire
J - EMC noise filter
Figure 5.17 EMC Noise Filter and Drive Installation Procedure
5. Connect the DC reactor to decrease harmonic distortion. Refer to DC Reactor on page 189 to select a DC
reactor.
Note:
To maintain compliance with IEC/EN 61000-3-2 on drive models 4002, and 4004, install a DC reactor.
Ground Wiring
WARNING! Electrical Shock Hazard. Do not remove covers or touch circuit boards while the drive is energized. Failure to obey
can cause death or serious injury.
WARNING! Electrical Shock Hazard. Ground the neutral point on the power supply to comply with the EMC Directive before
turning on the EMC filter or if there is high resistance grounding. If the EMC filter is switched ON without the neutral point being
grounded or if there is high resistance grounding, it can cause death or serious injury.
