Mechanical
Installation
2
2.4
Moving
the
Drive
SIEPYEUOQ2A01A
AC
Drive
Q2A
T
echnical
Manual
35
W
ARNING!
Crush
Hazard.
Do
not
try
to
flip
over
a
hanging
drive
or
leave
a
hanging
drive
unattended.
Failure
to
obey
can
cause
death
or
serious
injury
from
falling
equipment.
NOTICE:
If
you
attach
a
horizontal
wire
to
the
drive,
the
wire
can
scratch
and
damage
the
drive
if
touches
the
drive.
Use
a
jig
or
pad
to
prevent
damage
to
the
drive.
A
-
Hanging
bracket
(4)

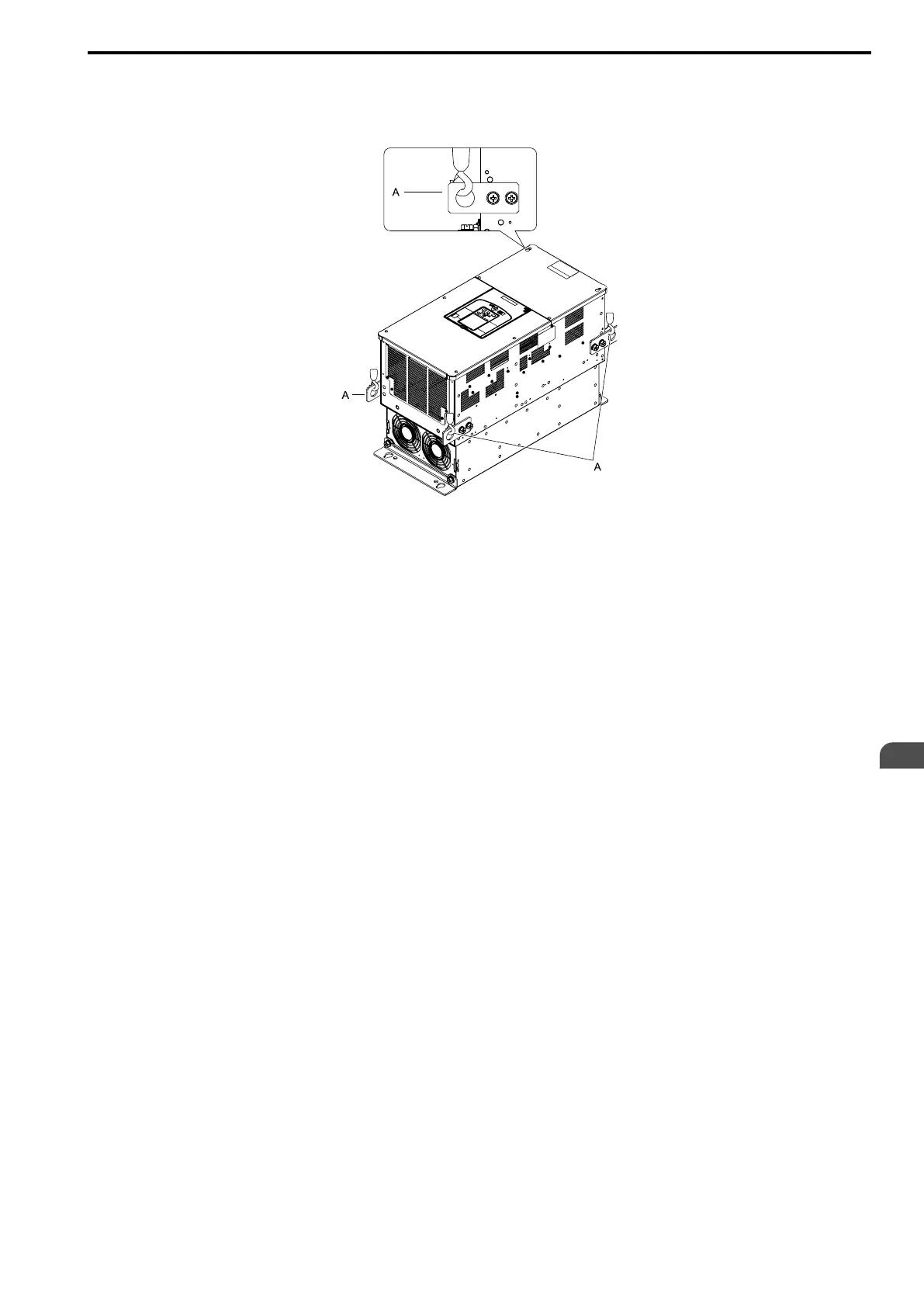

Figure
2.6
Horizontal
Suspension
34
