3.2 Standard Connection Diagram
68 SIEPYEUOQ2A01A AC Drive Q2A Technical Manual

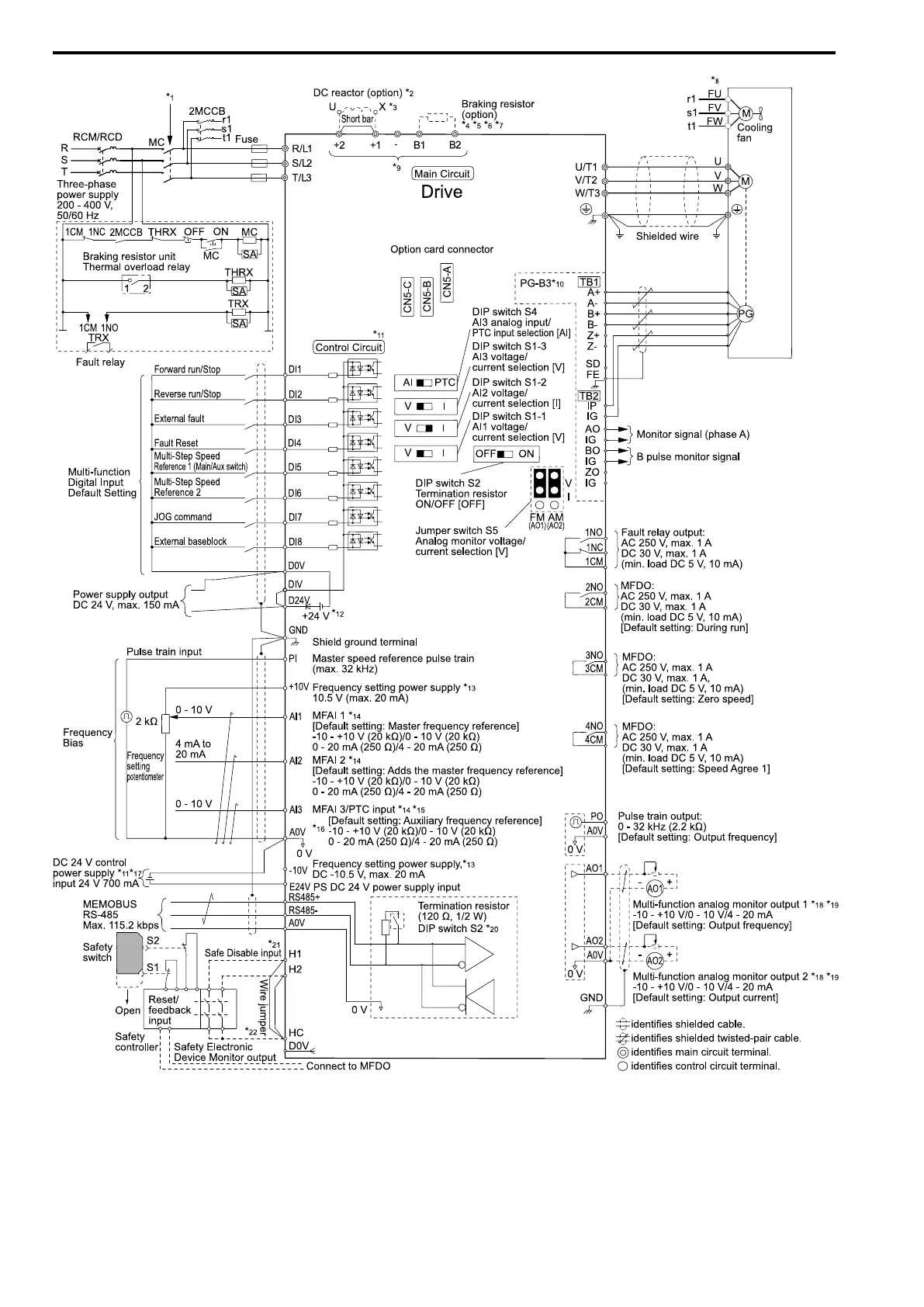

Figure 3.1 Standard Drive Connection Diagram
*1 Set the wiring sequence to de-energize the drive with the fault relay output. If the drive outputs a fault during
fault restart when you use the fault restart function, set L5-02 = 2 [Fault@Reset Select = Enable Fault
Output] to de-energize the drive. Be careful when you use a cut-off sequence. The default setting for L5-02 =
1 [Fault@Reset Select = Disable Fault Output].
*2 When you install a DC reactor, you must remove the jumper between terminals +1 and +2.
