10.6 Drive Exterior and Mounting Dimensions
374 SIEPYEUOQ2A01A AC Drive Q2A Technical Manual
■ 4371, 4389

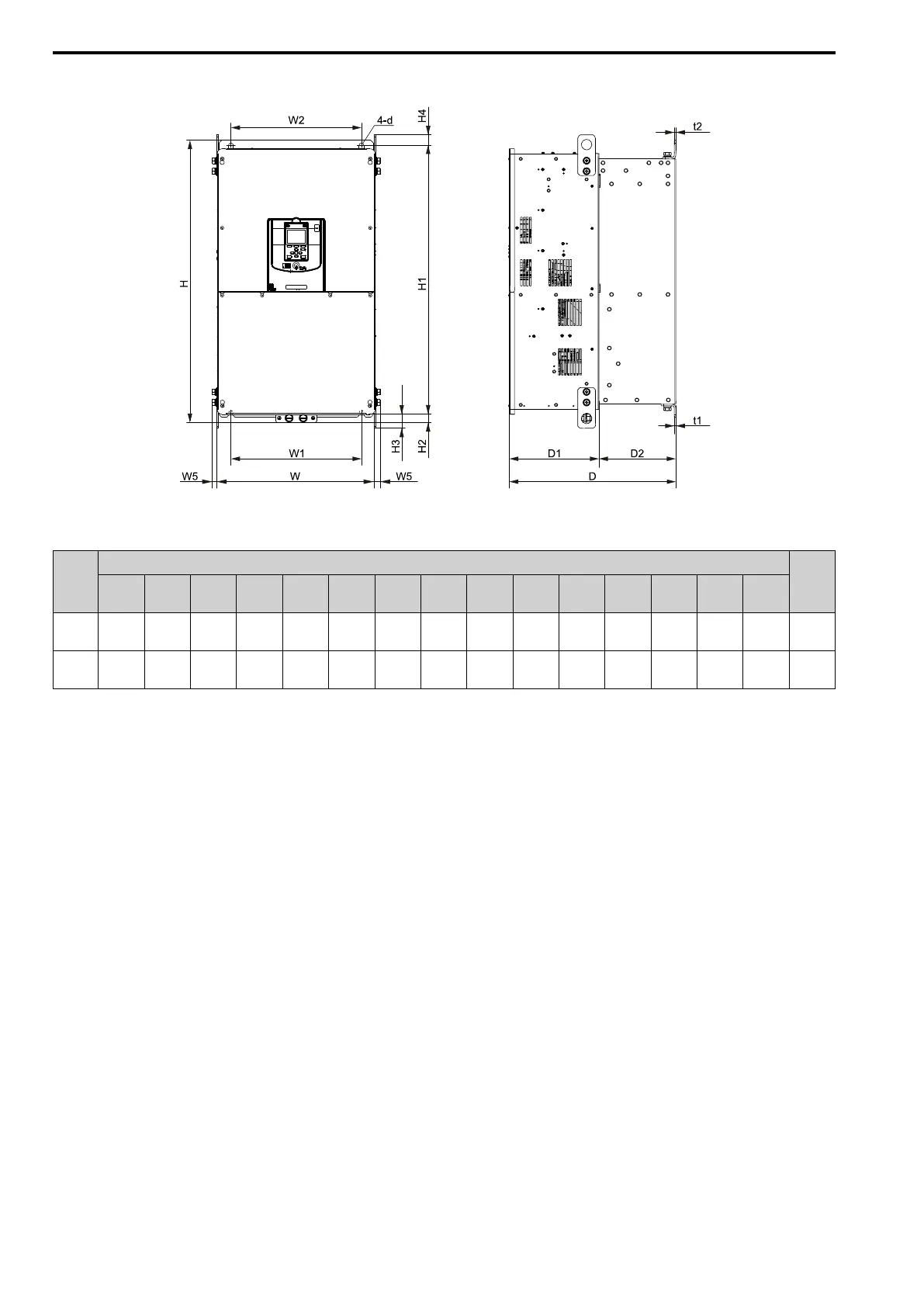

Figure 10.8 Exterior and Mounting Dimensions Diagram 8
Table 10.25 400 V class (IP20)
Model
Dimensions mm (in.)
Weight
kg (lb.)
W H D D1 D2 W1 W2
W5
(max.)
H1 H2 H3 H4 t1 t2 d
4371
440
(17.32)
800
(31.50)
472
(18.58)
254
(10.00)
218
(8.58)
370
(14.57)
370
(14.57)
20
(0.787)
757
(29.80)
28
(1.10)
44
(1.73)
30
(1.18)
4.5
(0.177)
4.5
(0.177)
M12
122
(269.0)
4389
440
(17.32)
800
(31.50)
472
(18.58)
254
(10.00)
218
(8.58)
370
(14.57)
370
(14.57)
20
(0.787)
757
(29.80)
28
(1.10)
44
(1.73)
30
(1.18)
4.5
(0.177)
4.5
(0.177)
M12
126
(277.8)
