3.3 Main Circuit Wiring
72 SIEPYEUOQ2A01A AC Drive Q2A Technical Manual

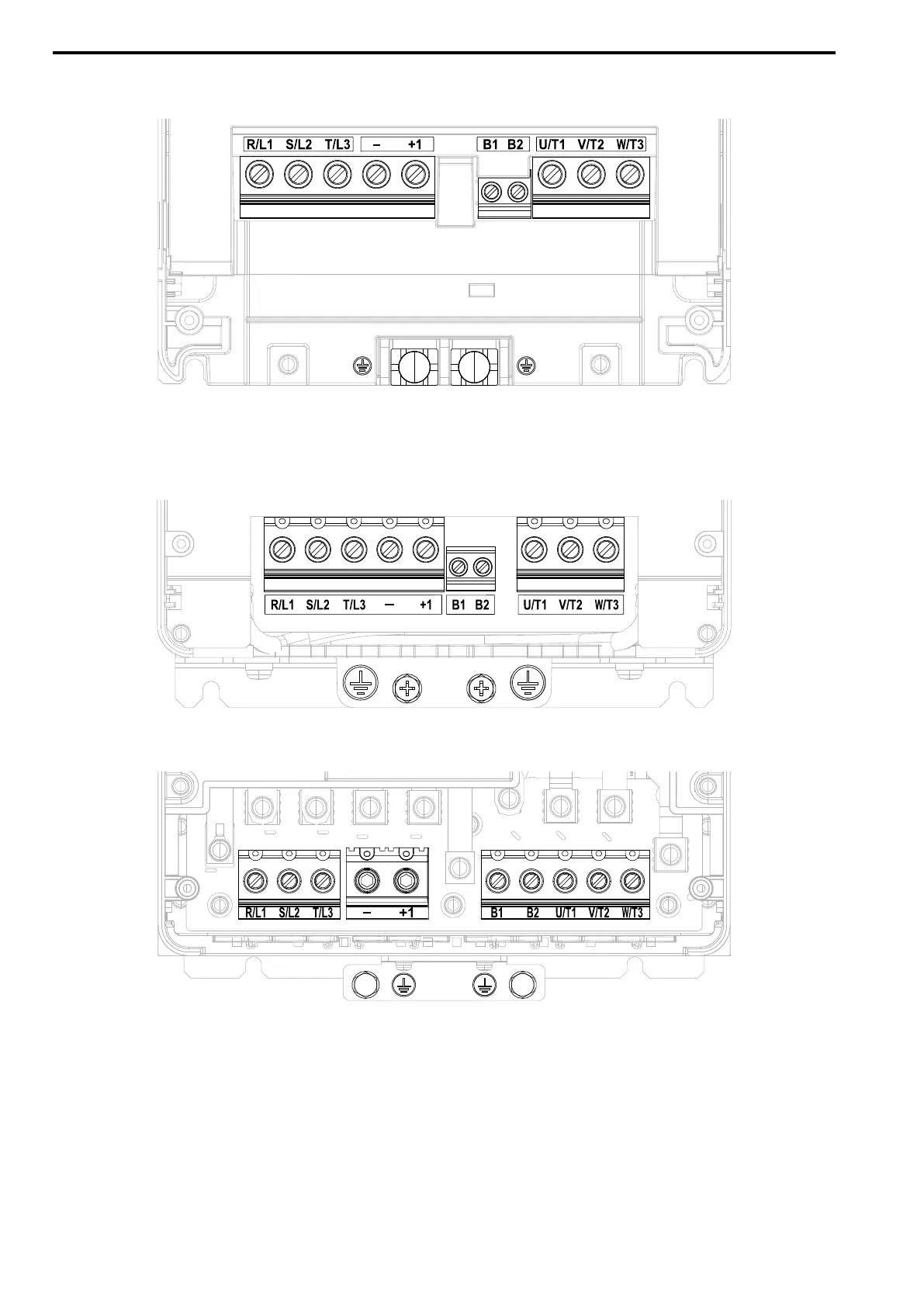

Figure 3.6 Configuration of Main Circuit Terminal Block for Drive Model 4060
Figure 3.7 Configuration of Main Circuit Terminal Block for Drive Model 4075
Figure 3.8 Configuration of Main Circuit Terminal Block for Drive Model 4089
