18 Frequency inverters

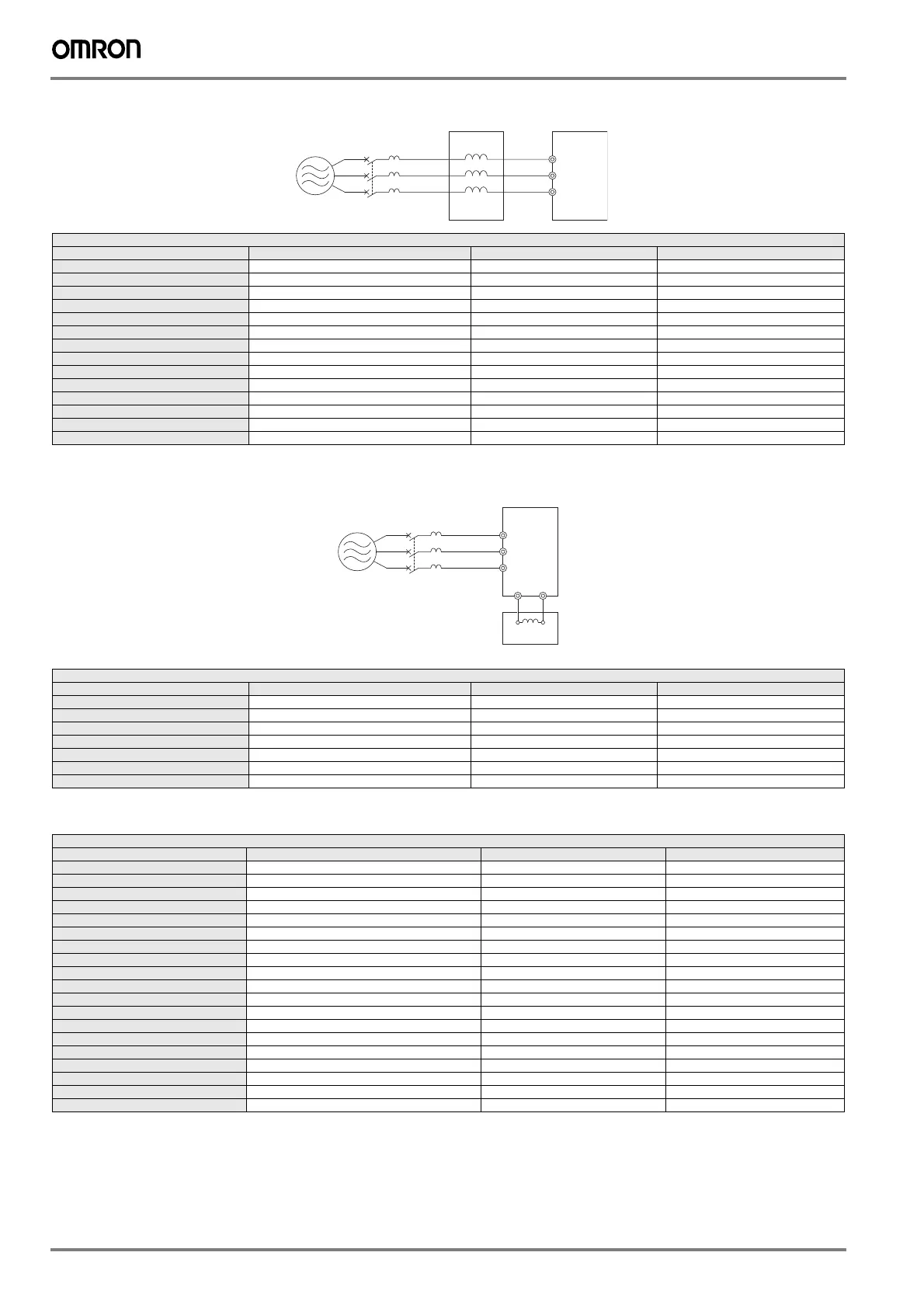

Input AC reactor
DC reactor
Output AC reactor
400 V class
Max. applicable motor output (kW)
*1
*1. The motor sizes are for heavy duty applications.
Reference Current value (A) Inductance (mH)
0.55 AX-RAI07700042-DE
4.2 7.7
0.75 AX-RAI07700050-DE
5.0 7.7
1.5 AX-RAI03500090-DE 9.0 3.5
2.2 AX-RAI03500100-DE 10.0 3.5
3.0 to 3.7 AX-RAI01300170-DE 17.0 1.3
5.5 to 11.0 AX-RAI00740335-DE 33.5 0.74
15.0 to 18.5 AX-RAI00360500-DE 50.0 0.36
22.0 to 30.0 AX-RAI00290780-DE 78.0 0.29
37.0 to 45.0 AX-RAI00191150-DE 115.0 0.19
55.0 to 75.0 AX-RAI00111850-DE 185.0 0.11
90.0 to 110.0 AX-RAI00072700-DE 270.0 0.07
150.0 AX-RAI00043350-DE 335.0 0.04
185.0 to 220.0 AX-RAI00034500-DE 450.0 0.03
260.0 AX-RAI00025350-DE 535.0 0.025
400 V class
Max. applicable motor output (kW)
*1
*1. The motor sizes are for heavy duty applications.
Reference Current value (A) Inductance (mH)
0.55 to 0.75 AX-RC43000020-DE
2.0 43.0
1.5 AX-RC10100069-DE 6.9 10.1
2.2 to 3.0 AX-RC06400116-DE 11.6 6.4
3.7 AX-RC04410167-DE 16.7 4.41
5.5 AX-RC03350219-DE 21.9 3.35
7.5 AX-RC02330307-DE 30.7 2.33
11.0 to 15.0 AX-RC01750430-DE 43.0 1.75
400 V class
Max. applicable motor output (kW)
*1
*1. The motor sizes are for heavy duty applications.
Reference Current value (A) Inductance (mH)
0.55 AX-RAO16300038-DE
3.8 16.3
0.75 AX-RAO11800053-DE 5.3 11.8
1.5 AX-RAO07300080-DE 8.0 7.3
2.2 to 3.0 AX-RAO04600110-DE 11.0 4.6
3.7 AX-RAO03600160-DE 16.0 3.6
5.5 AX-RAO02500220-DE 22.0 2.5
7.5 AX-RAO02000320-DE 32.0 2.0
11.0 AX-RAO01650400-DE 40.0 1.65
15.0 to 18.5 AX-RAO01300480-DE 48.0 1.3
22.0 AX-RAO00800750-DE 75.0 0.8
30.0 AX-RAO00680900-DE 90.0 0.68
37.0 to 45.0 AX-RAO00531100-DE 110.0 0.53
55.0 AX-RAO00401490-DE 149.0 0.4
75.0 AX-RAO00331760-DE 176.0 0.33
90.0 AX-RAO00262170-DE 217.0 0.26
110.0 AX-RAO00212600-DE 260.0 0.21
150.0 AX-RAO00173250-DE 325.0 0.17
185.0 to 220.0 AX-RAO00134440-DE 440.0 0.13
260.0 AX-RAO00115250-DE 525.0 0.11
MCCB
Power supply
AC reactor
Q2A
R/L1U
V
W
X
Y
Z
S/L2
T/L3
Power
supply
Q2A
DC reactor
R/L1
+1 +2
MCCB
S/L2
T/L3
