2.8 Change the Drive Enclosure Type
58 SIEPYEUOQ2A01A AC Drive Q2A Technical Manual
A - Front of drive B - Screw holes on bottom

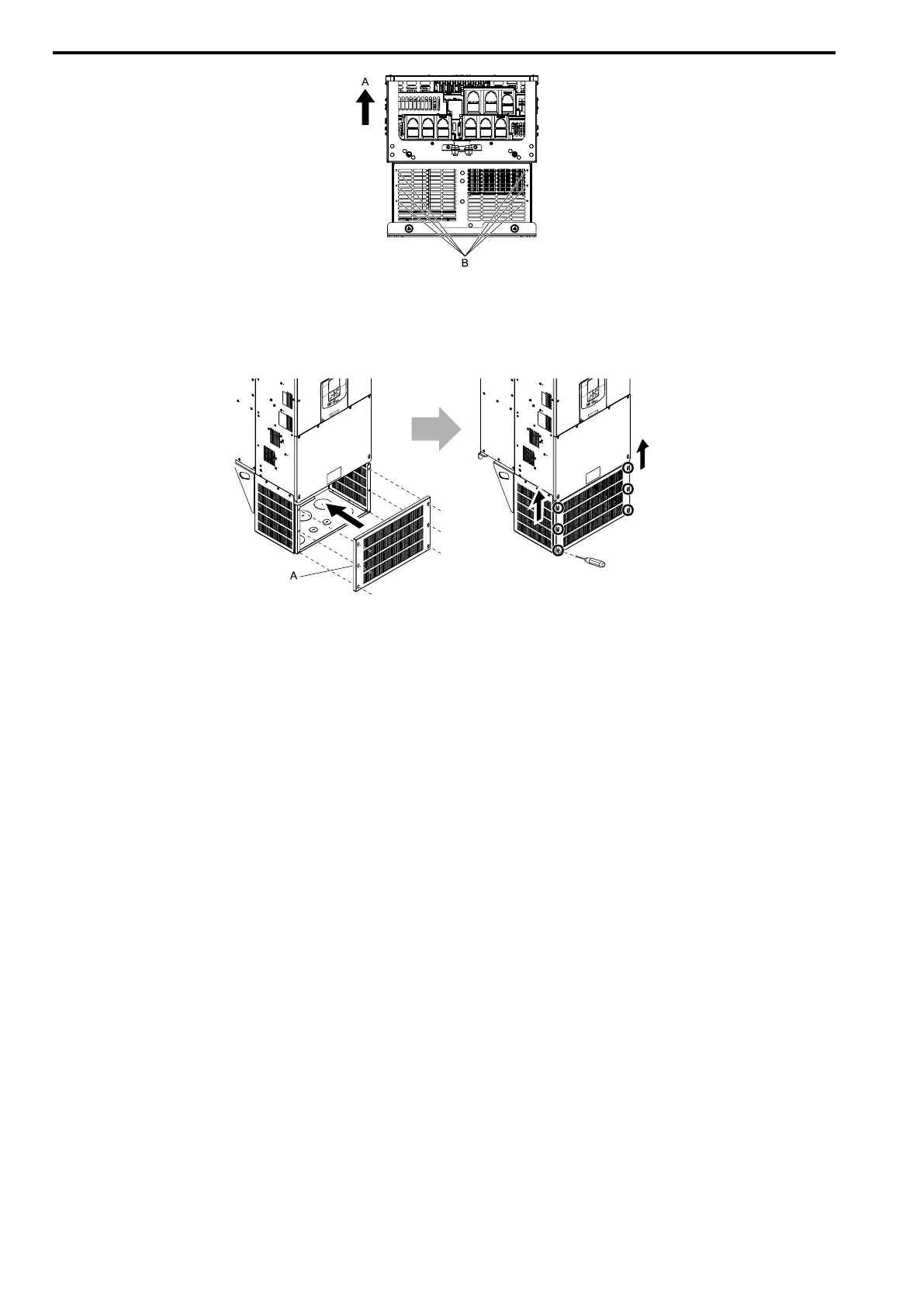

Figure 2.64 Locations of Screw Holes on Bottom
3. Align the screw holes on conduit bracket 2 with the screw holes on conduit bracket 1.
Tighten the screws to a tightening torque of 0.98 N∙m to 1.33 N∙m (8.67 lb.∙in. to 11.77 lb.∙in.).
A - Conduit bracket 2
Figure 2.65 Attach Conduit Bracket 2
To Next Page
