Parameter Details
12
12.5 E: MOTOR
SIEPYEUOQ2A01A AC Drive Q2A Technical Manual 611

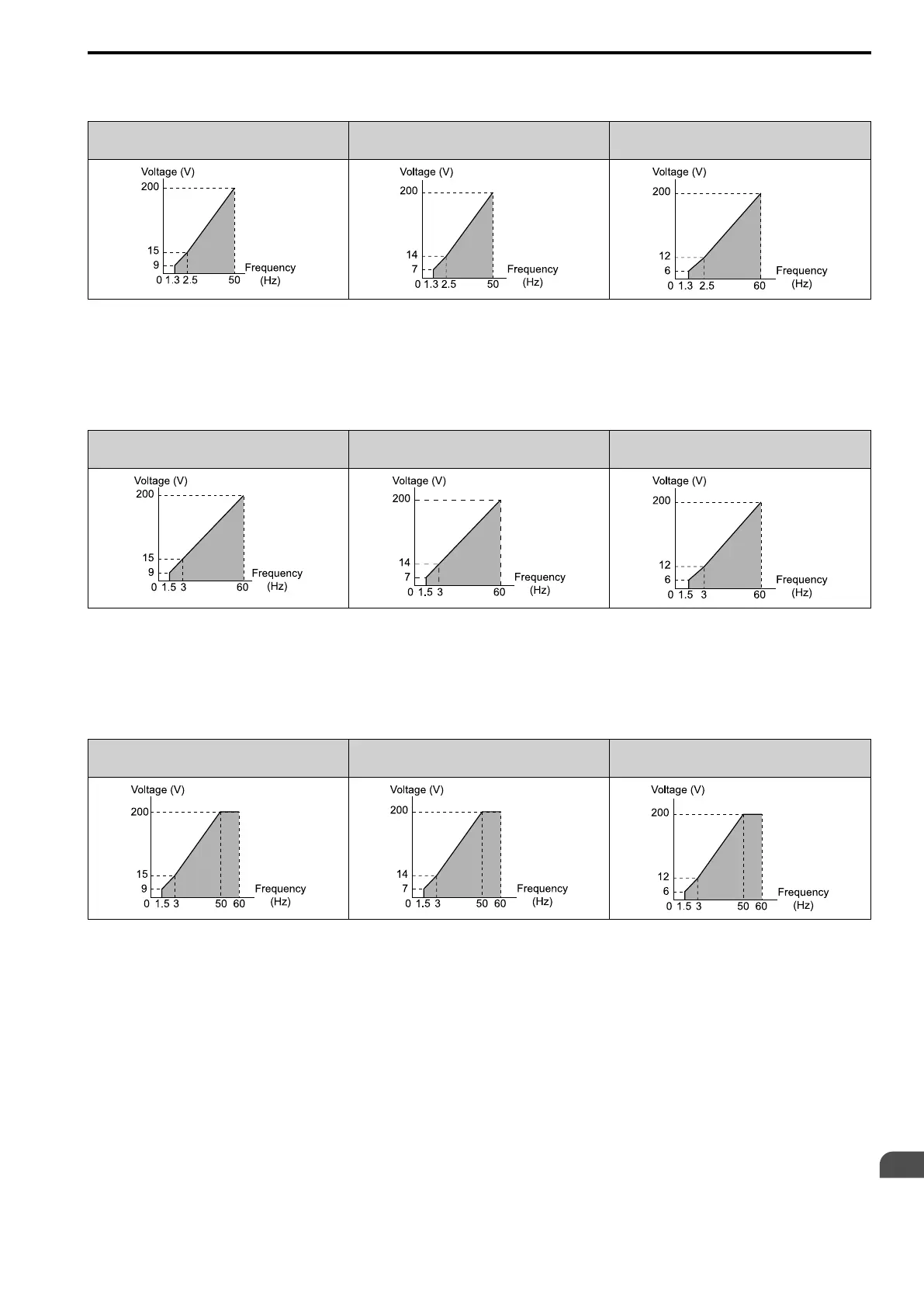

Note:
The voltage values in the figures are for 200 V class drives. Multiply the values by 2 for 400 V class drives.
HD: 4002 - 4012
ND: 4002 - 4009
HD: 4018 - 4103
ND: 4012 - 4089
HD: 4140 - 4675
ND: 4103 - 4675
1 : CT_60-60Hzmax
Use this constant torque pattern for general applications. Use this pattern when the load torque is constant and
there is no rotation speed. For example, linear conveyor systems.
Note:
The voltage values in the figures are for 200 V class drives. Multiply the values by 2 for 400 V class drives.
HD: 4002 - 4012
ND: 4002 - 4009
HD: 4018 - 4103
ND: 4012 - 4089
HD: 4140 - 4675
ND: 4103 - 4675
2 : CT_50-60Hzmax
Use this constant torque pattern for general applications. Use this pattern when the load torque is constant and
there is no rotation speed. For example, linear conveyor systems.
Note:
The voltage values in the figures are for 200 V class drives. Multiply the values by 2 for 400 V class drives.
HD: 4002 - 4012
ND: 4002 - 4009
HD: 4018 - 4103
ND: 4012 - 4089
HD: 4140 - 4675
ND: 4103 - 4675
3 : CT_60-72Hzmax
Use this constant torque pattern for general applications. Use this pattern when the load torque is constant and
there is no rotation speed. For example, linear conveyor systems.
Note:
The voltage values in the figures are for 200 V class drives. Multiply the values by 2 for 400 V class drives.
