2-4 External and Mounting Dimensions
This section provides the external dimensions and mounting dimensions of Servo Drives, Servomotors,
Decelerators, and peripheral devices.
The Servo Drives are described in order of increasing rated output of the applicable Servomotors.
2-4-1 Servo Drive Dimensions
Single-phase 100 VAC: R88D-1SN01L-ECT (100 W)
Single-phase/3-phase 200 VAC: R88D-1SN01H-ECT/-1SN02H-ECT
(100 to 200 W)
3.2
170±0.5
40
50 185
4570
5
180
4
2-M4
40
28±0.5
6
180

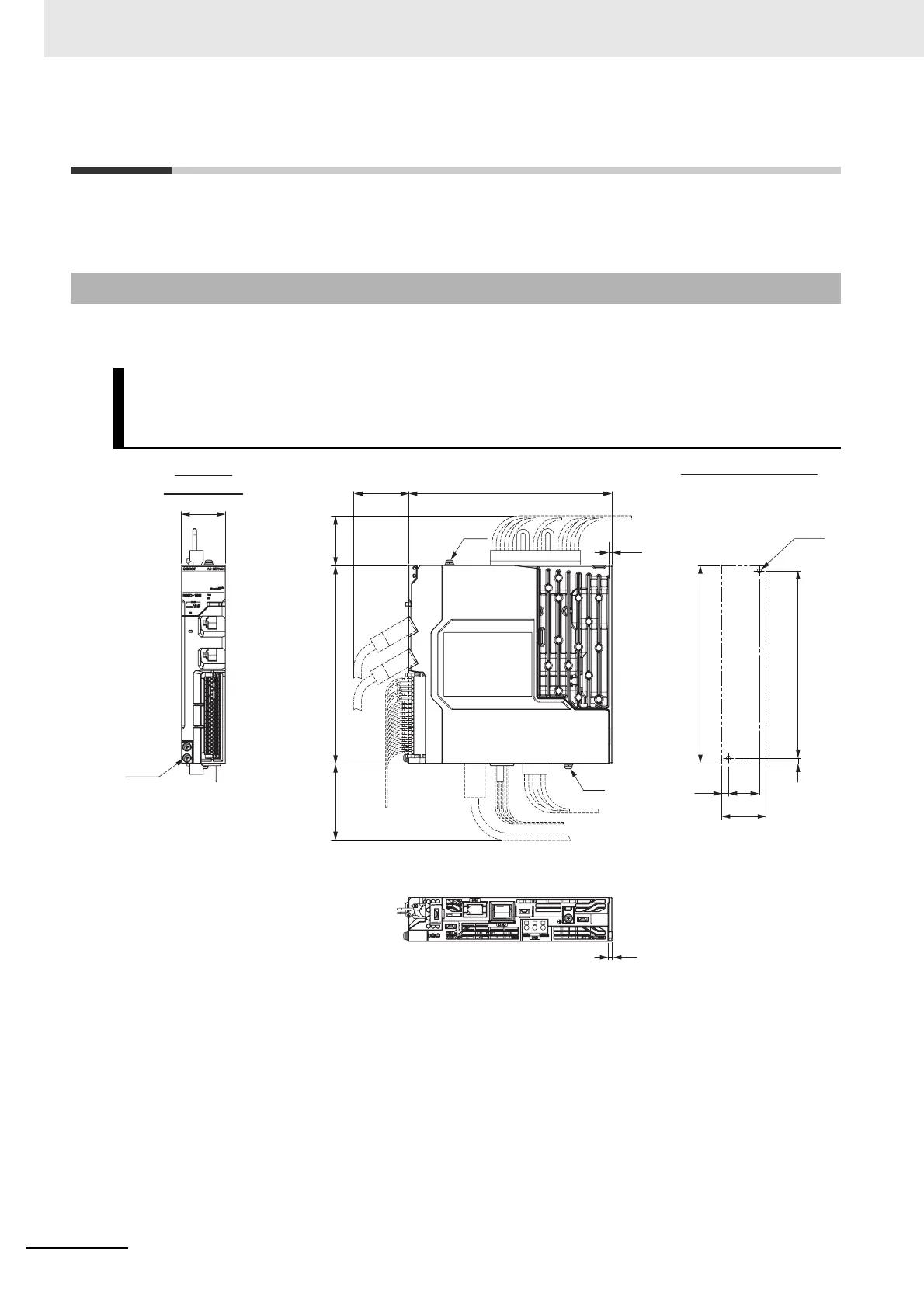

External
dimensions
Mounting dimensions
M4
2-M4
M4
To Next Page
