Omron R88D-1SN10F-ECT User Manual

2 Models and External Dimensions
2 - 46
AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)

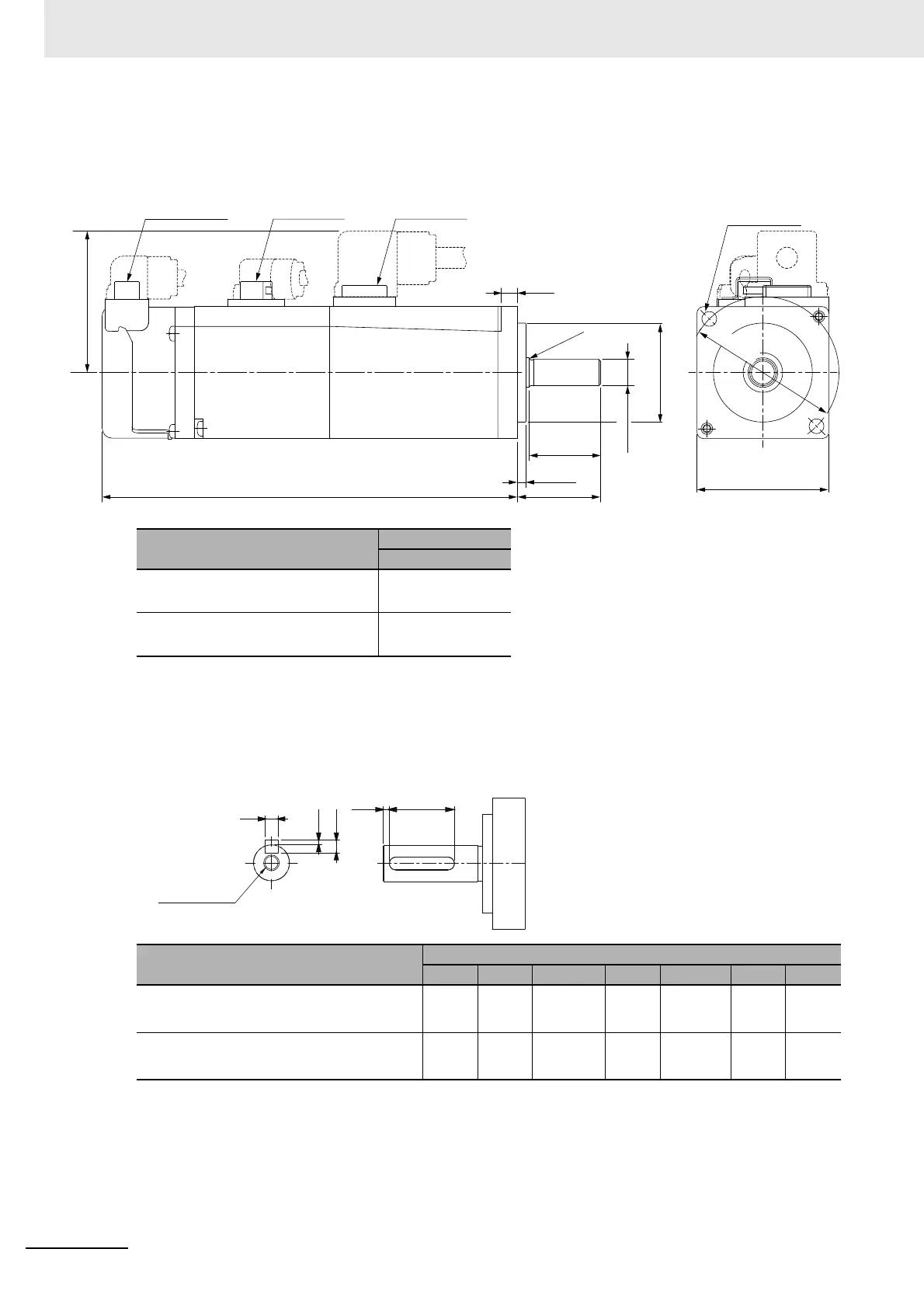

 100 W (with Brake)
R88M-1M10030S-B(O/S2/OS2)
R88M-1M10030T-B(O/S2/OS2)
Note The standard shaft type is a straight shaft. Models with a key and tap are indicated with “S2” at the end of
the model number.
Models with an oil seal are indicated with “O” at the end of the model number.
Shaft-end with key and tap
Model
Dimensions [mm]
LL
R88M-1M10030S-B(S2)
R88M-1M10030T-B(S2)
126±1
R88M-1M10030S-BO(S2)
R88M-1M10030T-BO(S2)
131±1
Model
Dimensions [mm]
QA QK W T U QE LT
R88M-1M10030S-B(S2/OS2) 2 12 3 M3 8
R88M-1M10030T-B(S2/OS2) 2 12 3 M3 8
40×40±0.8
LL
5±0.5
2.5±0.3
21.5±0.1
25±0.5
(43)
8
0
-0.009 dia.
0
30-0.021 dia.
46±0.3 dia.
Encoder connector Brake connector
Motor connector
2-4.5±0.35 dia.
R0.5 max
T
W
U
QA QK
Key and tap cross section
QE (tap)
LT (tap depth)
-0.025
0
3
-0.2
0
1.2
-0.025
0
3
-0.2
0
1.2
