3 - 95
3 Specifications
AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)
3-4 Cable and Connector Specifications
3

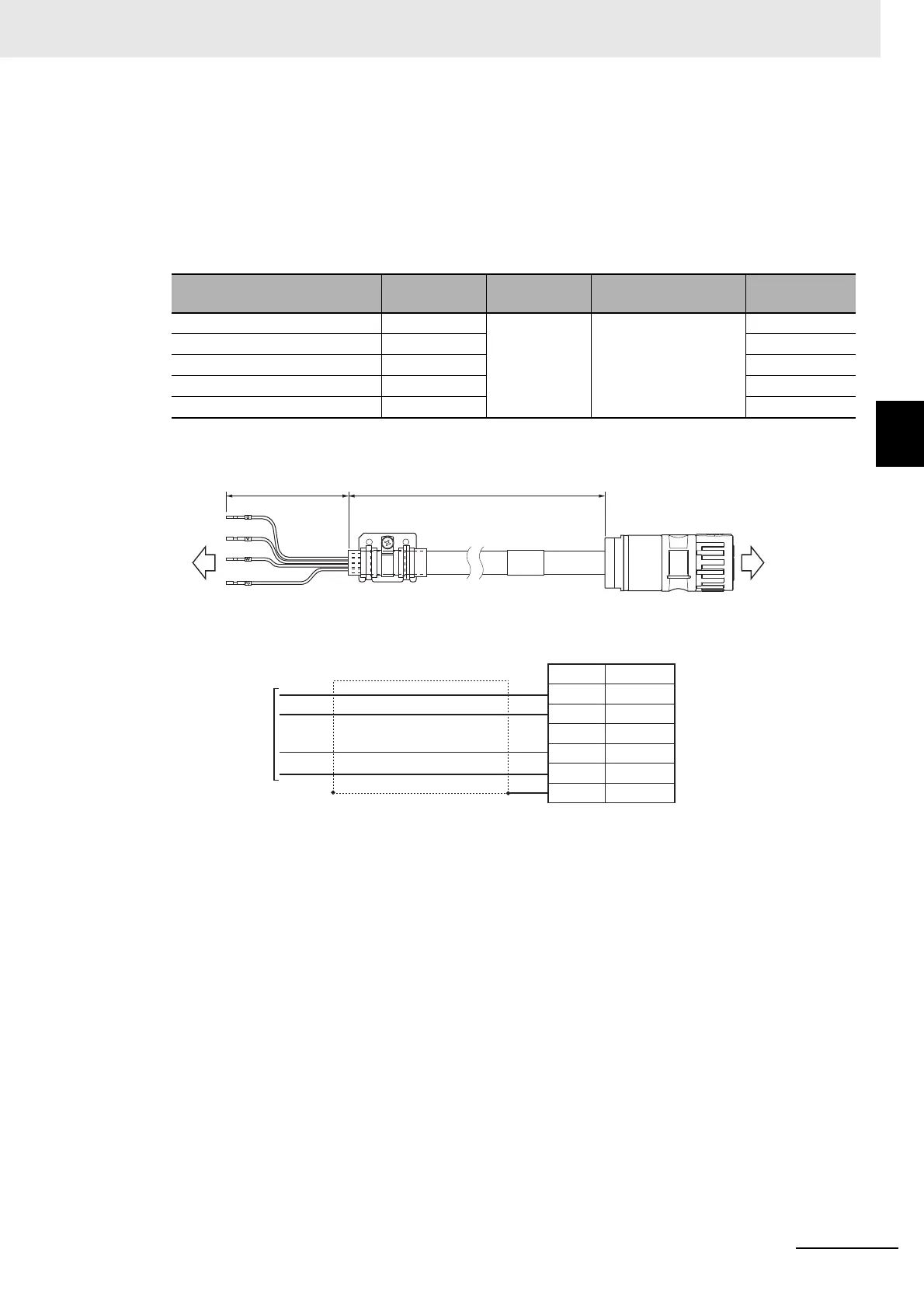

3-4-2 Motor Power Cable Specifications
 R88A-CA1JSF
Applicable Servomotors
400 V:
1,500-r/min Servomotors of 11 kW, 15 kW
Cable types
Connection configuration and external dimensions [mm]
Wiring
*1. Connect the cable to the servo drive enclosure using the shield clamp.
*2. PE and shell are set in the connectors at Servomotor’s side.
Model Length [L]
Outer diame-
ter of sheath
Minimum bending
radius
Weight
R88A-CA1J003SF 3 m 17.3 dia. 173 mm Approx. 2.4 kg
R88A-CA1J005SF 5 m Approx. 3.3 kg
R88A-CA1J010SF 10 m Approx. 6.0 kg
R88A-CA1J015SF 15 m Approx. 8.7 kg
R88A-CA1J020SF 20 m Approx. 11.5 kg
L380
Servomotor
side
R88M-1
Servo Drive
side
R88D-1SN
Blue
Red
White
Green/Yellow
Servo Drive side
Semi-strip
Cable
Servomotor side
Contact
Name
Phase U
Phase V
Phase W
Shield
Connector
Servomotor side connector
NC
FG
Shell
*2
PE
*2
*1
Symbol
AWG10 × 4C UL758
1623327
Power: 1623379
M40 Series (Phoenix Contact)
A
B
C
D
