Omron R88D-1SN10F-ECT User Manual

3 - 121
3 Specifications
AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)
3-4 Cable and Connector Specifications
3

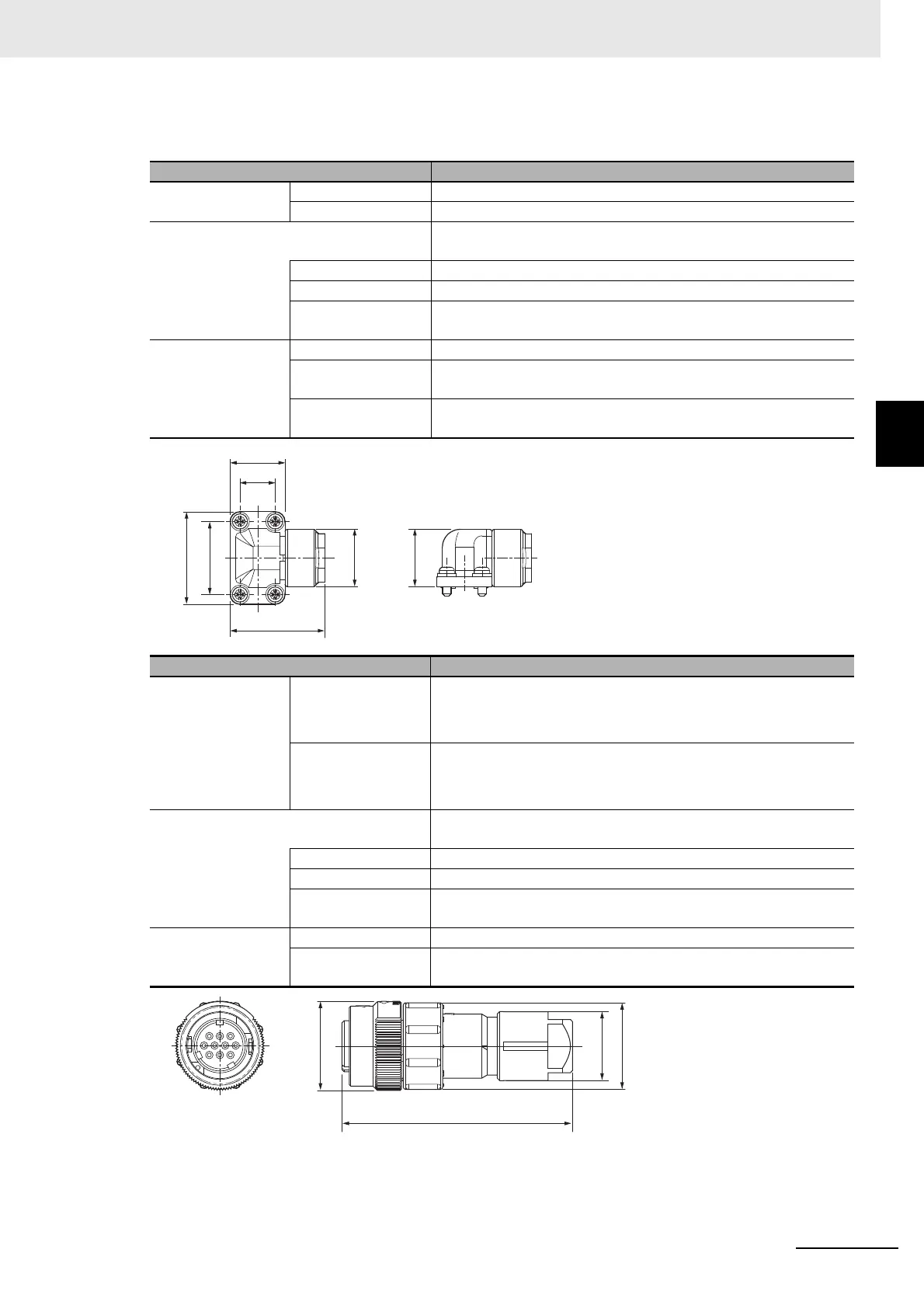

3-4-5 Connector Specifications
 Servomotor Connector
Item Specifications
Applicable Servo-
motor
100 V 3,000-r/min Servomotors of 50 to 400 W
200 V 3,000-r/min Servomotors of 50 to 750 W
Connector This is a crimping-type connector. For required tools, contact the
manufacturers directly.
Angle plug JN6FR07SM1 (Japan Aviation Electronics)
Connector pin LY10-C1-A1-10000 (Japan Aviation Electronics)
Angle plug and con-
nector pin
R88A-CNK02R (OMRON)
Applicable cable Applicable wire AWG 22 max.
Insulating cover
outer diameter
1.3 mm dia. max.
Outer diameter of
sheath
5.0±0.5 mm dia.
Item Specifications
Applicable Servo-
motor
200 V 3,000-r/min Servomotors of 1 to 3 kW
2,000-r/min Servomotors of 1 to 3 kW
1,000-r/min Servomotors of 900 W to 3 kW
400 V 3,000-r/min Servomotors of 750 W to 3 kW
2,000-r/min Servomotors of 400 W to 3 kW
1,000-r/min Servomotors of 900 W to 3 kW
Connector This is a crimping-type connector. For required tools, contact the
manufacturers directly.
Straight plug JN2DS10SL1-R (Japan Aviation Electronics)
Contact JN1-22-22S-10000 (Japan Aviation Electronics)
Straight plug and
contact
R88A-CN104R (OMRON)
Applicable cable Applicable wire AWG 21 max.
Outer diameter of
sheath
5.7 to 7.3 mm dia.
13 dia.
13
21
16.6
12.5
8
21.5
20 dia.
19.5 dia. 15.6 dia.
52 max.
