4 Configuration and Wiring
4 - 4
AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)
 Single-unit Installation
 Side-by-side Installation

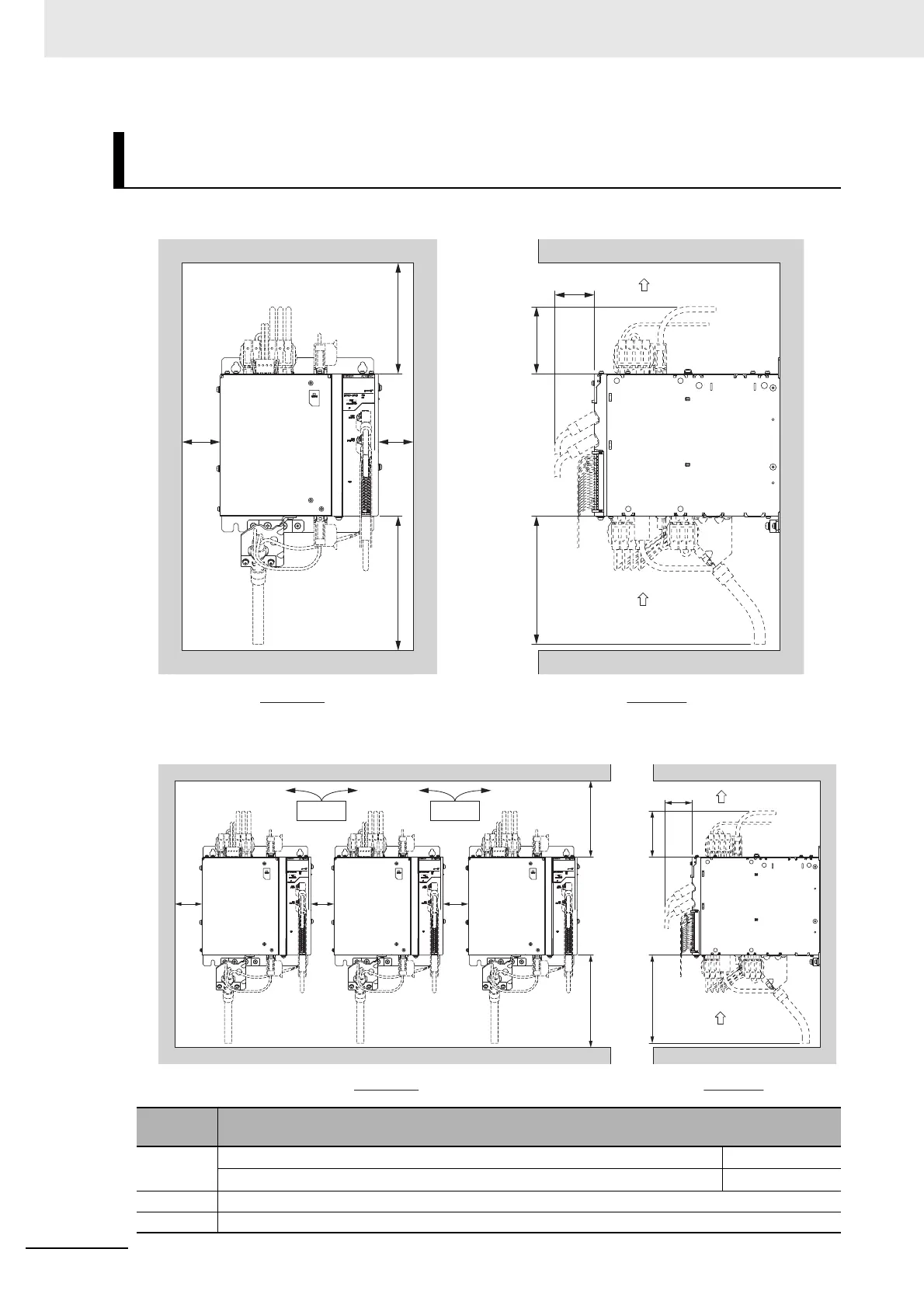

Space Conditions around Servo Drives with its capacity 5.5 kW or
more
Dimen-
sion
Distance
T R88D-1SN55H-ECT/-1SN75H-ECT/-1SN55F-ECT/-1SN75F-ECT 200 mm min.
R88D-1SN150H-ECT/-1SN150F-ECT 280 mm min.
B 500 mm min.
S1 40 mm min.
Side viewFront view
C 3
C 1
C 2
S 1 S 1
T
B
Air intake
Air outlet
Side viewFront view
FanFan
S
2
C 3
T
S 2 S 1
B
C 1
C 2
Air outlet
Air intake
