Omron R88D-1SN10F-ECT

4 - 37
4 Configuration and Wiring
AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)
4-2 Wiring
4

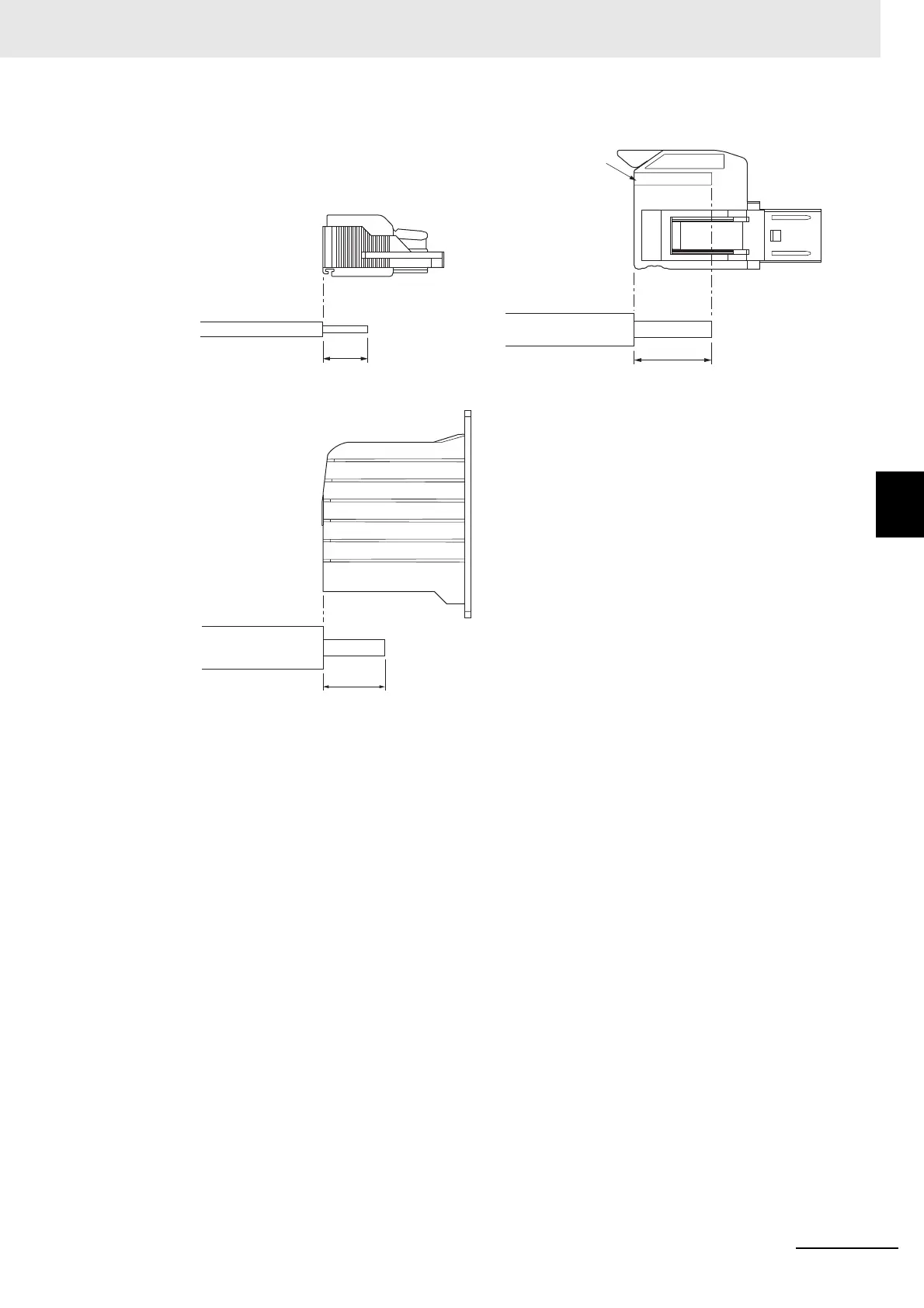

4-2-2 Procedure for Wiring Terminal Block and Procedure for Mounting Shield Clamp to Servo Drive
• R88D-1SN150H-ECT
Strip length
10-11 mm
Wire
Wire
STRIP GAUGE
(CND)
Strip length
18-20 mm
Strip length
Wire size 10-25 mm
2
: 18±0.5 mm
Wire size 35-50 mm
2
: 20±0.5 mm
(CNB/CNE)
Terminal block (CNA/CNC)
Wire
