4-3 Wiring Conforming to EMC Directives
4
4-3-2 Selecting Connection Component

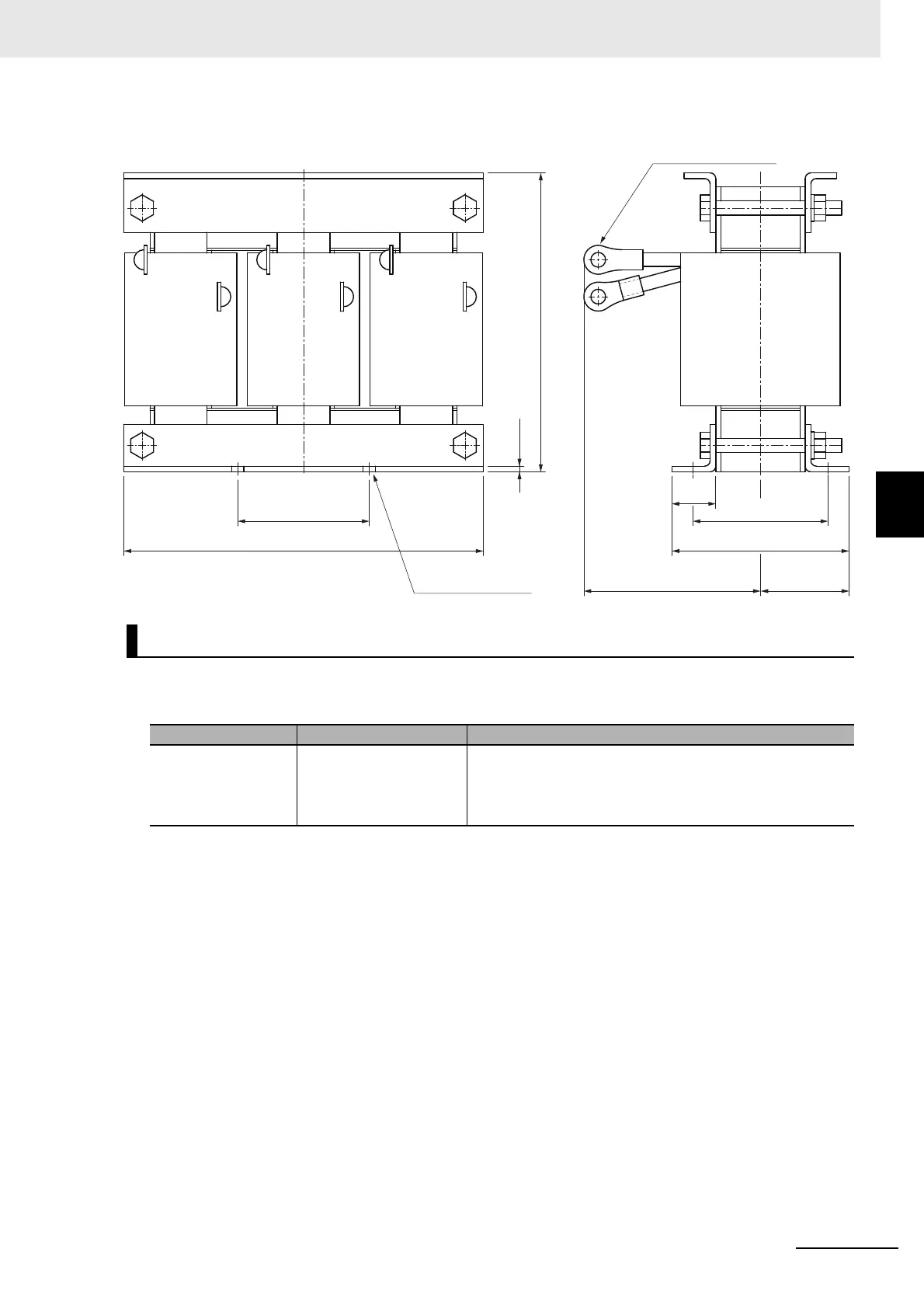

UZDA-B-OMR1S150F
Use a ferrite core to reduce switching noise caused by PWM output of Servo Drive and radiated noise
caused by internal oscillator circuit. The recommended product is shown as below.
Ferrite Core
Product model Manufacturer Purpose
E04SR301334 SEIWA ELECTRIC MFG Install between a Servo Drive and an external regeneration
resistor.
Install it to 30 mm or less from a Servo Drive. Number of
windings are 1 turn.
175 max.
(3.2)
205±1
75±1
U
X
W
V
YZ
105 max.
101±2
77±2
(25)
(51)
4-mounting hole
for M6 bolt
6-terminal for M8 bolt
