4-2-4 Procedure for Change of Cable Outlet Direction for Connector Type M23 or M40

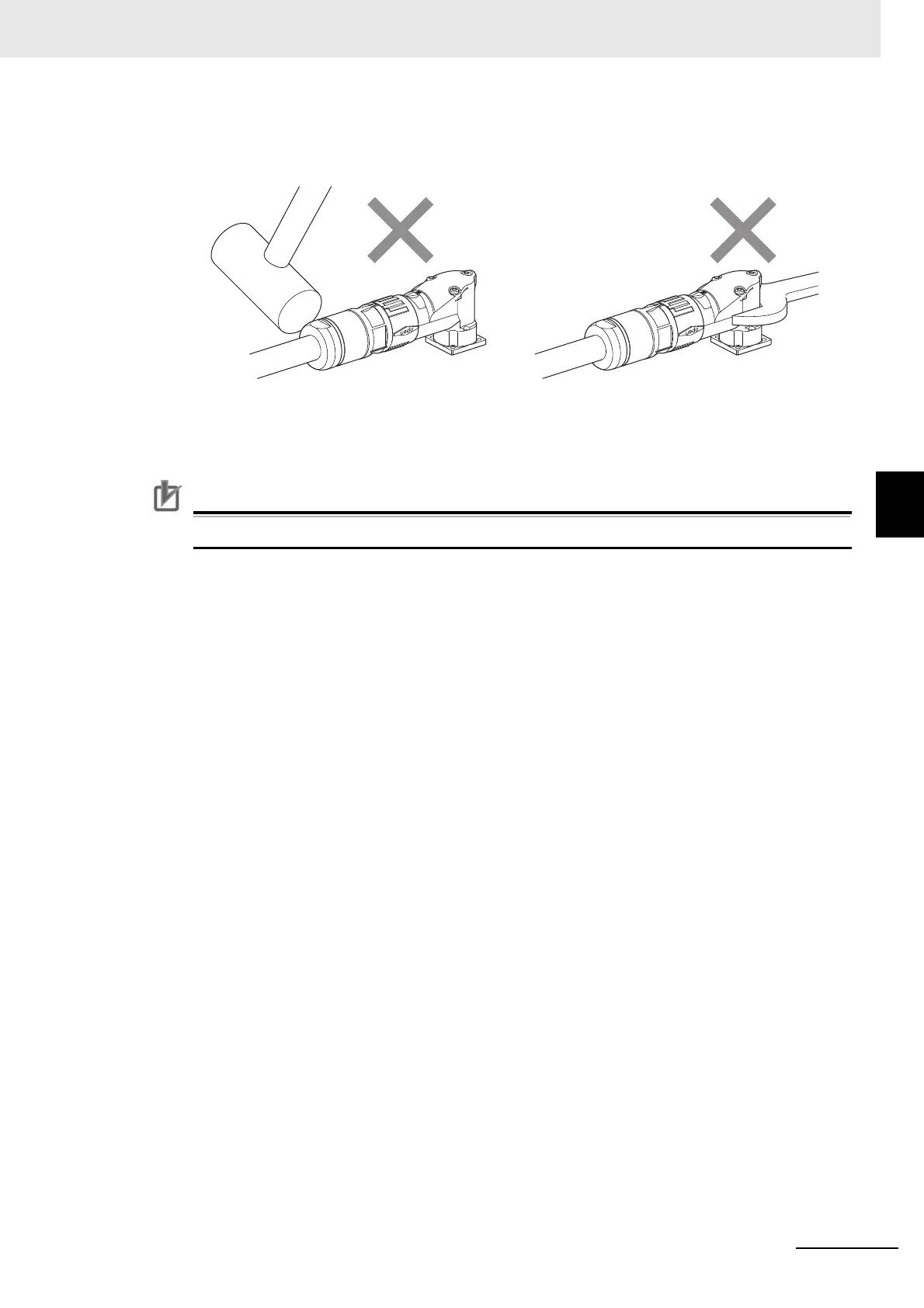

Use your hand, instead of tool, etc. when changing the cable outlet direction. Otherwise, a large
amount of force is applied easily even toward not-specified direction and may cause failure of
the connector.
Do not pull out a cable during the change of cable outlet direction. Doing so may cause failures
of a connector and a cable. Also, the change shall be up to five times. The change over five
times may result in failure of the connector.
Precautions for Correct Use
Wire cables not to contact with Servomotors, which have high temperature.
