2 Models and External Dimensions
AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)
2-4 External and Mounting Dimensions
2
2-4-8 Reactor Dimensions

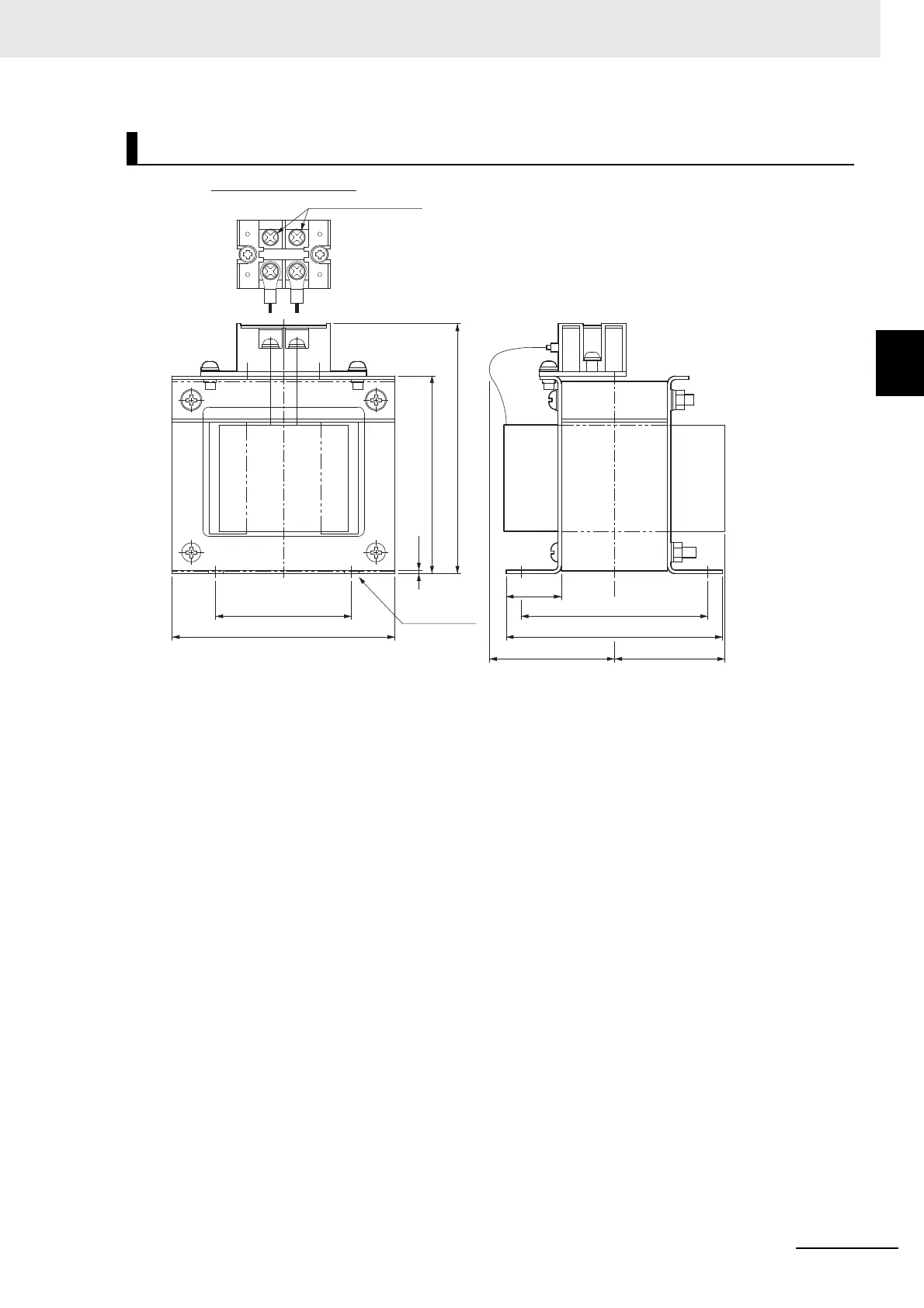

R88A-PD2037
105
64
(1.6)
93
102
88
(26)
2-terminal M4 screw
Terminal block top view
UX
4-mounting hole
for M6 bolt
120 max.
55 max.60 max.
