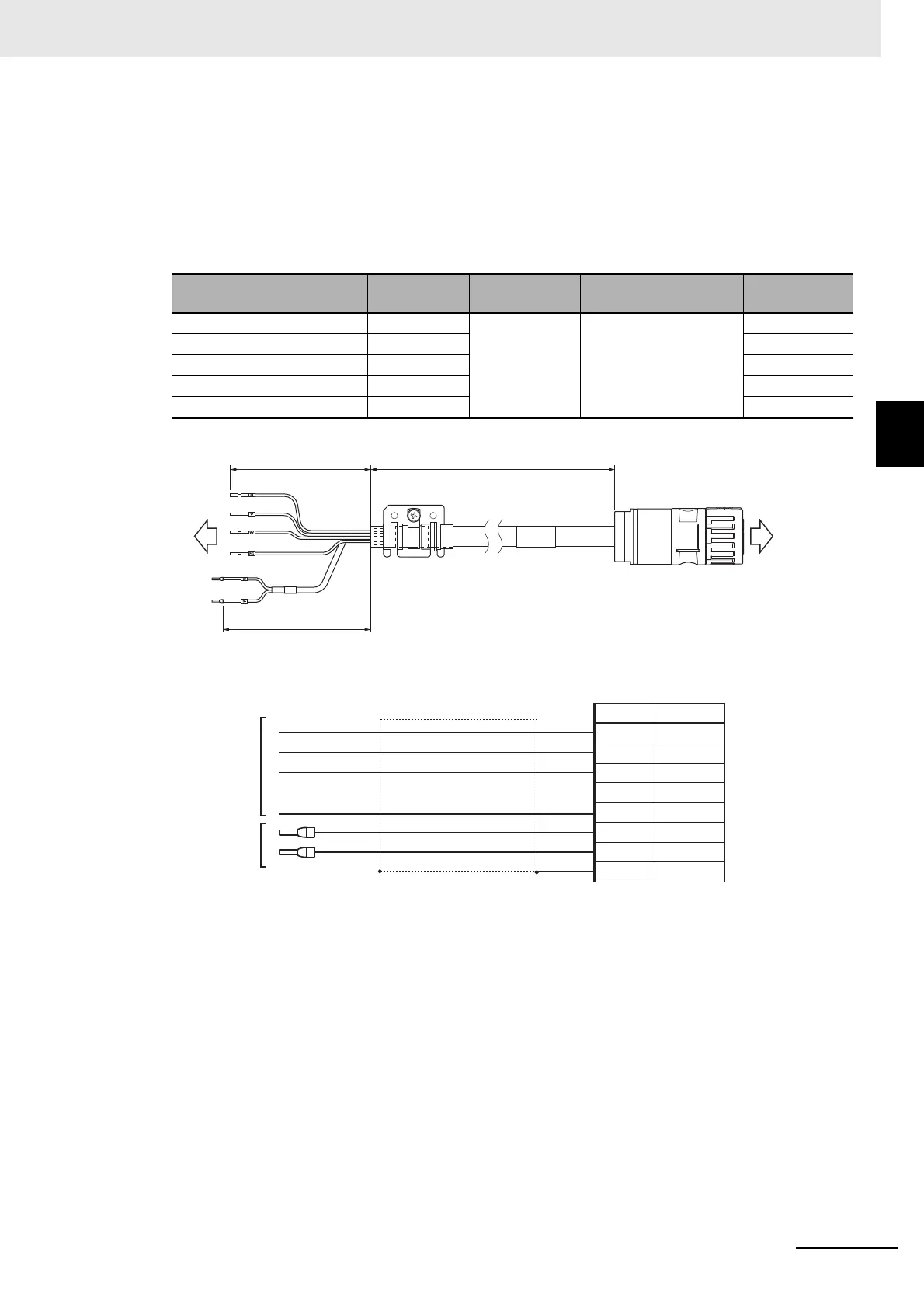

3-4 Cable and Connector Specifications
3
3-4-2 Motor Power Cable Specifications
 R88A-CA1JBF
Applicable Servomotors
400 V:
1,500-r/min Servomotors of 11 kW, 15 kW
Cable types
Connection configuration and external dimensions [mm]
Wiring
*1. Connect the cable to the servo drive enclosure using the shield clamp.
*2. PE and shell are set in the connectors at Servomotor’s side.
Model Length [L]
Outer diameter
of sheath
Minimum bending
radius
Weight
R88A-CA1J003BF 3 m 17.3 dia. 173 mm Approx. 2.4 kg
R88A-CA1J005BF 5 m Approx. 3.3 kg
R88A-CA1J010BF 10 m Approx. 6.0 kg
R88A-CA1J015BF 15 m Approx. 8.7 kg
R88A-CA1J020BF 20 m Approx. 11.5 kg
L380
420
Ferrule
966067-2 (TE)
Servomotor
side
R88M-1
Servo Drive
side
R88D-1SN
Blue
Red
White
Green/Yellow
Servo Drive side
Semi-strip
Cable
Servomotor side
Contact
Name
Phase U
Phase V
Phase W
Brake
Brake
Shield
Connector
Servomotor side connector
Power: 1623379
Brake: 1623604
1623327
1
2
Symbol
A
B
C
D
NC
FG
M40 Series (Phoenix Contact)
*1
PE
*2
Shell
*2
Black
Black
Ferrule
966067-2
(TE)
AWG10 × 4C UL758
AWG21 × 2C UL758
