3-4-5 Connector Specifications
This connector is used for brake cables.
Use it when you prepare a brake cable by yourself.

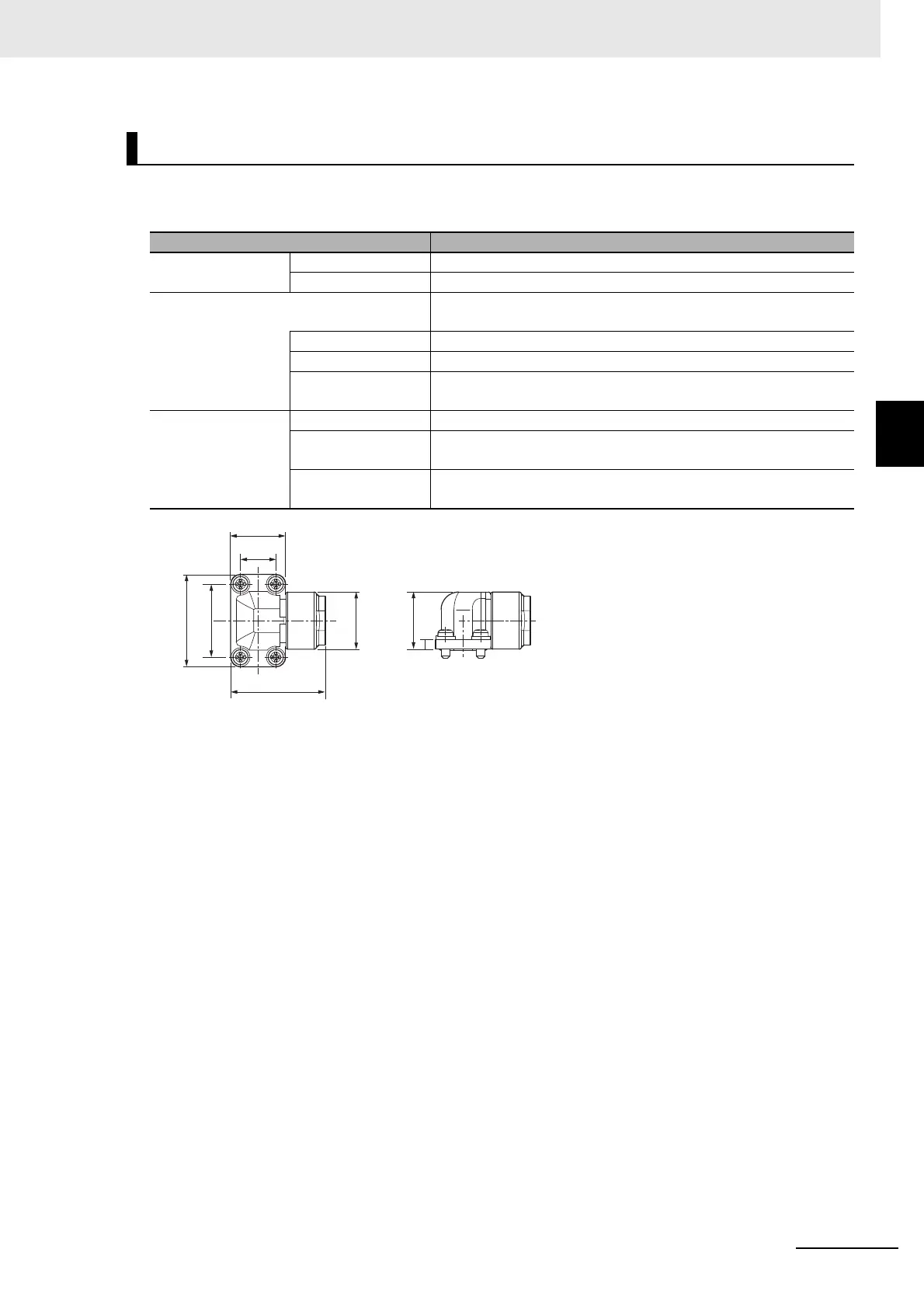

Brake Cable Connector
Item Specifications
Applicable Servo-
motor
100 V 3,000-r/min Servomotors of 50 to 400 W
200 V 3,000-r/min Servomotors of 50 to 750 W
Connector This is a crimping-type connector. For required tools, contact the
manufacturers directly.
Angle plug JN6FR02SM1 (Japan Aviation Electronics)
Socket contact LY10-C1-A1-10000 (Japan Aviation Electronics)
Angle plug and
socket contact
R88A-CN111B (OMRON)
Applicable cable Applicable wire AWG 22 to 26
Insulating cover
outer diameter
0.8 to 1.3 mm dia.
Outer diameter of
sheath
4.5 to 5.5 mm dia.
