AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)
• The power cables must be twisted or tightly bundled.
• Wire the power and signal lines separately.

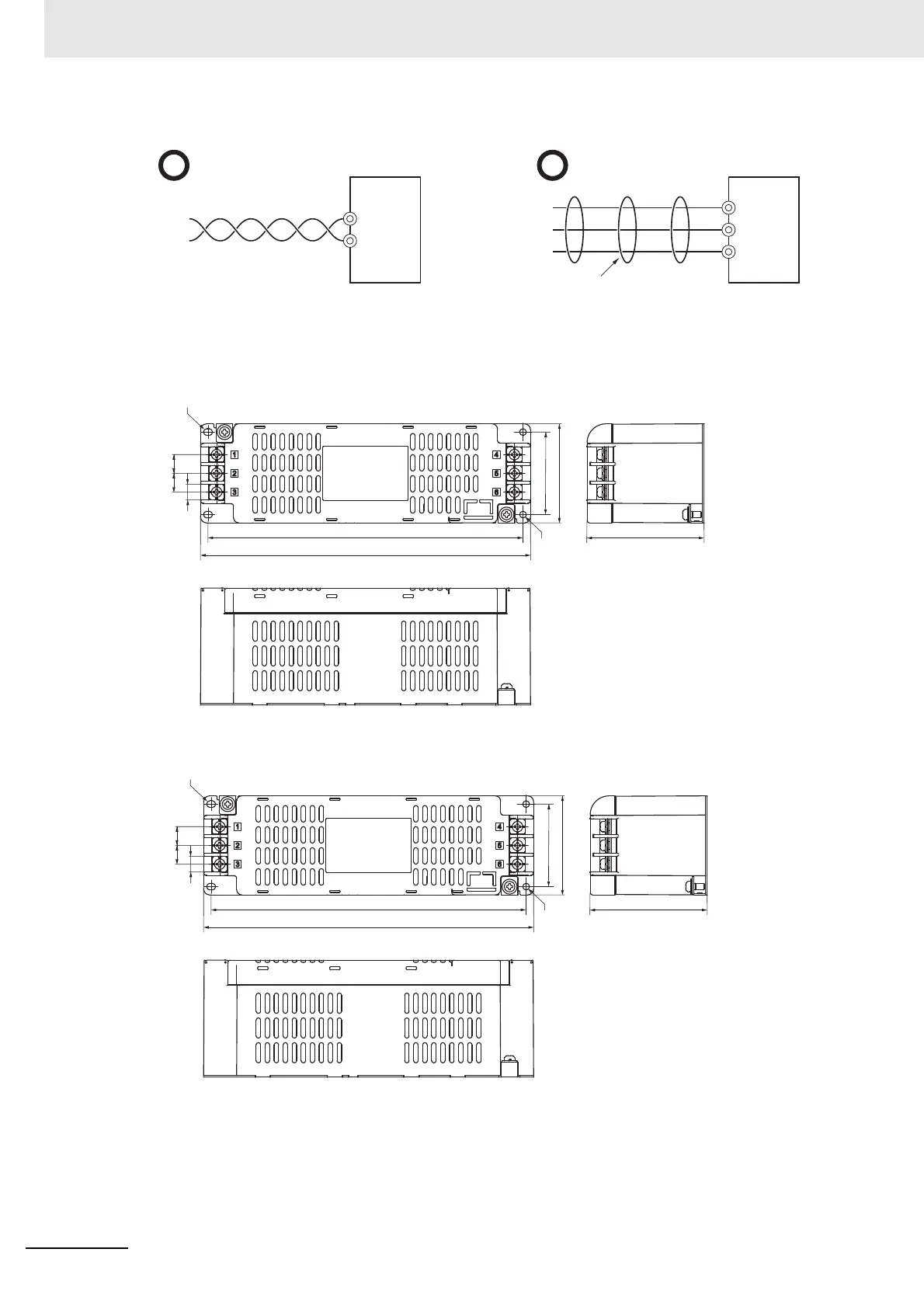

 External Dimensions of Book-type Noise Filter
HF2020A-SZC-33DDD/HF3020C-SZC (-33DDD)
HF3040C-SZA-33EDD/ HF3040C-SZA-47DDD/ HF3050C-SZB-33EDD
Twist Tight bundle
Servo Drive
L1
L1
L2
L3
L2
Servo Drive
Bundle
10.5
12.5
R2.25 × 6
12.5
220
210
66
4.5 dia.
55
78
(13)
(16)
R2.25 × 7
(16)
270
260
80
5.5 dia.
70
84
