Omron S8JX-G Series

S8JX
21
S8JX-G S8JX-P

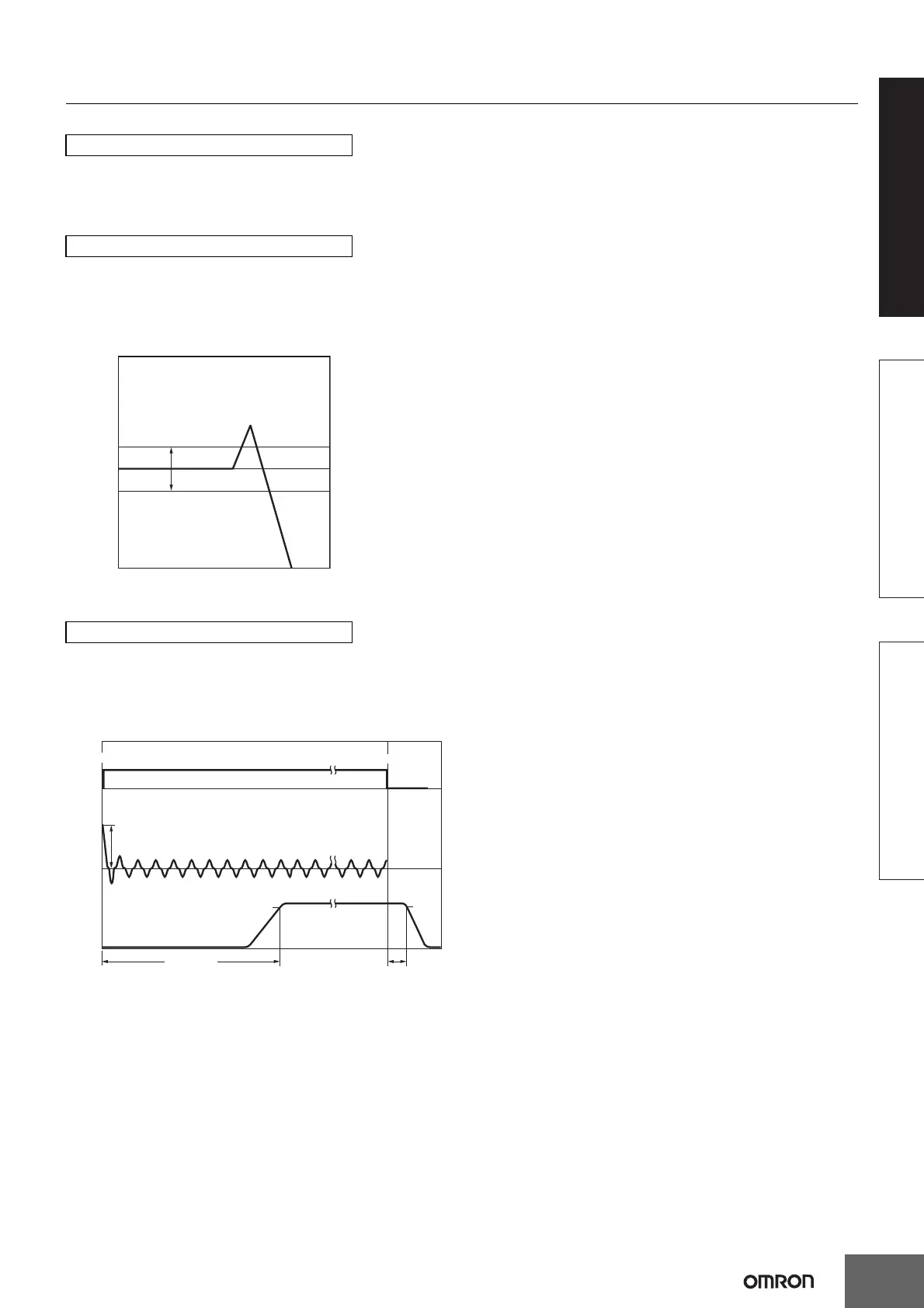

Common Precautions
Overvoltage Protection
Consider the possibility of an overvoltage and design the system so that the load will not be subjected to an excessive voltage even if the feedback
circuit in the power supply fails. When an excessive voltage that is approximately 130% of the rated voltage or more is output, the output voltage
is shut OFF, preventing damage to the load due to overvoltage. Reset the input power by turning it OFF for at least seven minutes and then turning
it back ON again.
Consider the possibility of an overvoltage and design the system so that the load will not be subjected to an excessive voltage even if the feedback
circuit in the Power Supply fails. When an excessive voltage that is approximately 120% of the rated voltage or more is output, the output voltage
is shut OFF, preventing damage to the load due to overvoltage (Except 300-W 24V, 48V models ). Reset the input power by turning it OFF for at
least three minute and then turning it back ON again.
(Reference value)
Note: Do not turn ON the power again until the cause of the overvoltage has been removed.
Overheat Protection
If the internal temperature rises excessively as a result of fan failure or any other reason, the overheat protection circuit will be triggered to shut
OFF the output voltage and simultaneously the protection-ON alarm indicator will be lit. Reset the input power by turning it OFF for at least three
minutes and then turning it back ON again.
Inrush Current, Startup Time, Output Hold Time
Note: A maximum startup time of 500 ms is required (650 ms for 300 W). Construct a system configuration that considers the startup time of other
devices.
15-/35-/50-/100-/150-W Models
300-/600-W Models
300-W 5V, 12V/600-W Model
Output voltage (V)
Overvoltage protection
Operating
Variable range
Rated output
Voltage
0 V
Startup time Hold time (20 ms min.)
AC input
voltage
AC input
current
Output
voltage
Inrush current on input application
90%
96.5%
Input ON
Input OFF
