S8JX
45
S8JX-G S8JX-P
Common Precautions

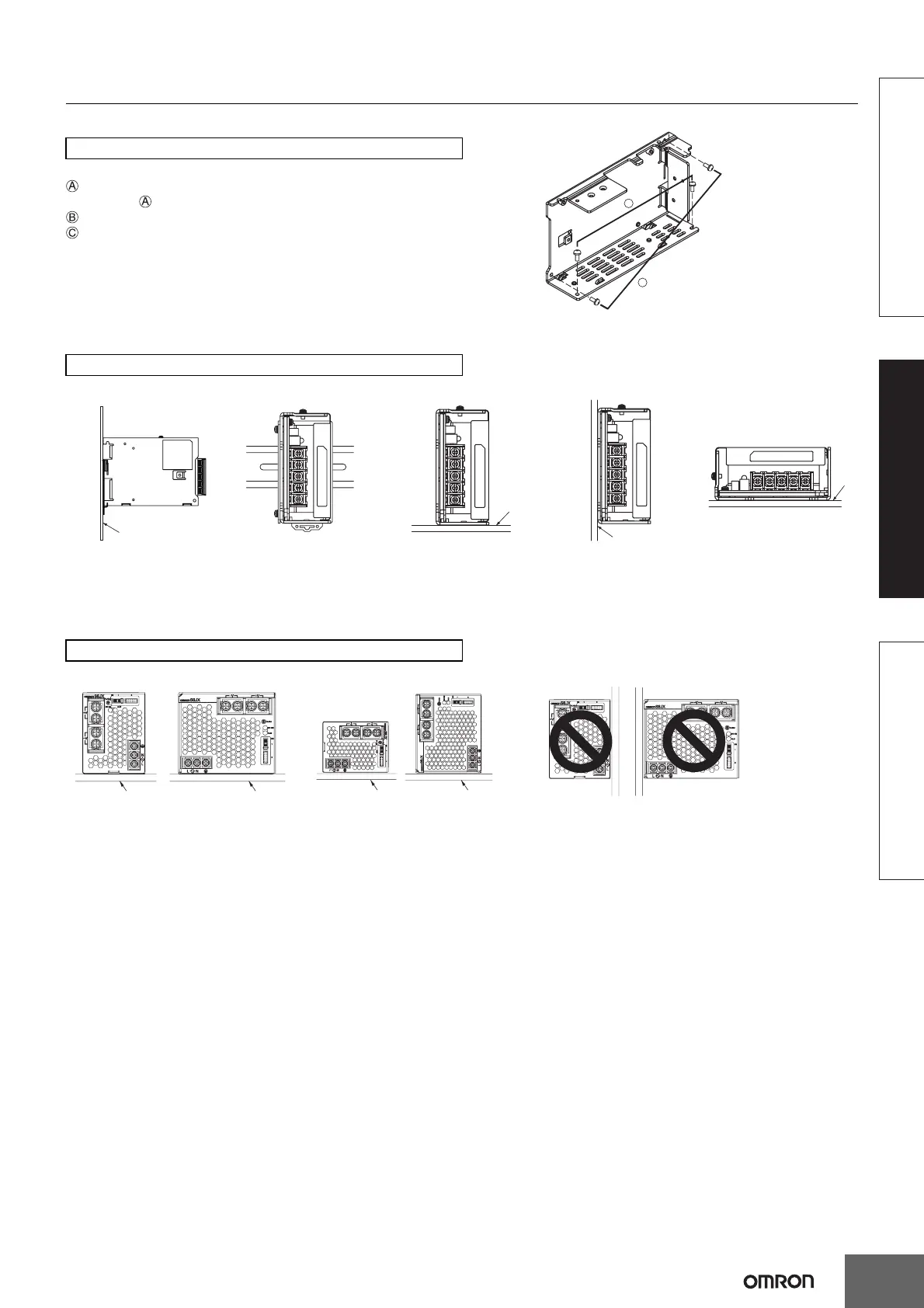

Mounting
The following three mounting methods are possible.
. Front-mounting: Refer to Mounting Bracket Provided with Front-mounting Power
Supplies on page 54.
. Bottom-mounting
. Side-mounting
Note: Additional mounting methods are also available using DIN Rail-mounting
models.
Standard Mounting
Note: 1. Improper mounting will interfere with heat dissipation and may occasionally result in deterioration or damage of internal parts. Use the
standard mounting method only.
2. When mounting the Power Supply, mounting it to a metal plate (*) is recommended.
3. Install the Power Supply so that the air flow circulates around the Power Supply, as the Power Supply is designed to radiate heat by
means of natural air flow.
Note: 1. Improper mounting will interfere with heat dissipation and may occasionally result in deterioration or damage of internal parts. Use the
standard mounting method only.
2. When mounting the Power Supply, mounting it to a metal plate (*) is recommended.
3. Do not cover the air holes (provided at fan mounted side and the opposite side) to have enough air-cooling.
50-/100-/150-W Models
50-/100-/150-W Models
300-/600-W Models
C
B
Front-mounting
*
DIN Rail-mounting
Bottom-mounting
*
Vertical Side-mounting
*
Horizontal Side-mounting
*
∗
300W 600W
∗
∗ ∗
300W 600W
300W 600W
Front-mounting
Bottom-mounting
Side-mounting
