Omron S8JX-G Series

S8JX
59
S8JX-G S8JX-P

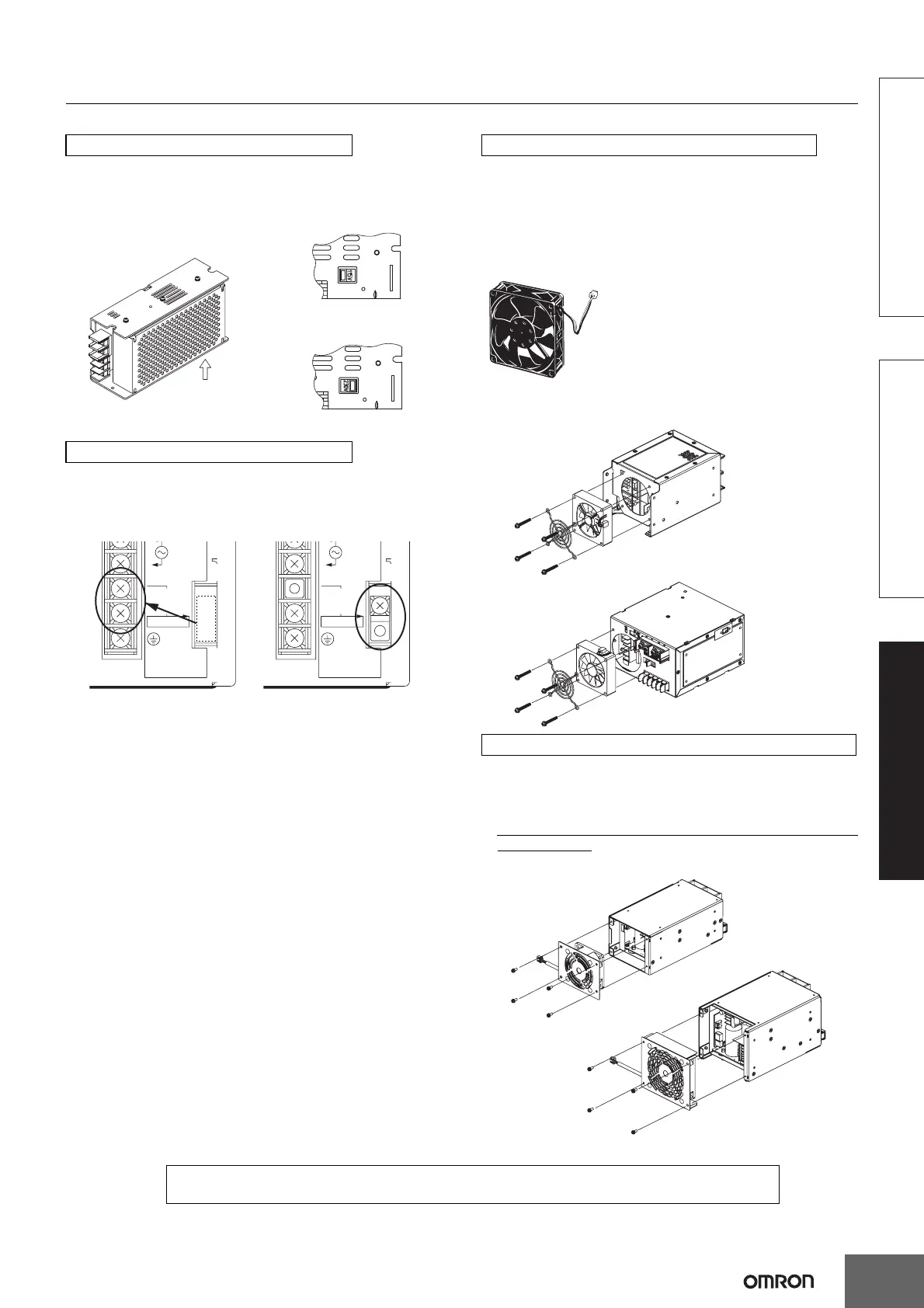

Common Precautions
Switching the AC Input Voltage between 100 and 200 VAC
The input voltage can be switched between 100 V and 200 V by using
the input voltage switch. Make the setting shown in the following
figure for the voltage that will be used. (The input voltage is factory-
set to 200 V.)
The input voltage can be switched between 100 and 200 V by shorting
or opening the input voltage selection terminals. Set the required
voltage as shown below. (The voltage is factory-set to 200 V.)
Note: A 300-W model is shown above.
Fan Replacement
The service life of the fan is approximately 50,000 hours (at 25°C).
The service life varies, however, depending on the ambient
temperature or other surrounding environmental conditions such as
dust. As a preventive maintenance measure, replace the fan within
approx. two years if it is used at an ambient temperature of 40°C.
Purchase the S82Y-JX FAN Replacement Fan (sold separately) to
replace the fan.
Replace the fan as shown in the following illustration.
•
Please contact your OMRON sales representative regarding fan
replacement. Fans will be replaced at cost. In addition, a replacement
fan unit (Model S82Y-JXP
@@ FAN) is available. Please use the curve
below as a guideline for the timing of fan replacement.
• Fan replacements made by the customer fall outside the scope of
safety standards.
Replacement should be implemented as shown below.
S8JX-G Series 150-W, 5-V Models
S8JX-G Series 300-/600-W Models
The input voltage switch is at the back
on the bottom of the Power Supply.
"230V": 200 to 240 VAC
"115V": 100 to 120 VAC
SHORT BAR
N
L
VOLTAGE SELECT
SHORT 100-120V
OPEN 200-230V
SHORT BAR
N
L
VOLTAGE SELECT
SHORT 100-120V
OPEN 200-230V
200-V input100-V input
Short with the short bar. Remove the short bar
and leave the terminals open.
S8JX-G Series 300-W 5V, 12V/600-W Model
S8JX-P Series 300-/600-W Models
In the interest of product improvement, specifications are subject to change without notice.
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
Fan Set:
Fan (above), instruction sheet
