Common Precautions
Engineering Data

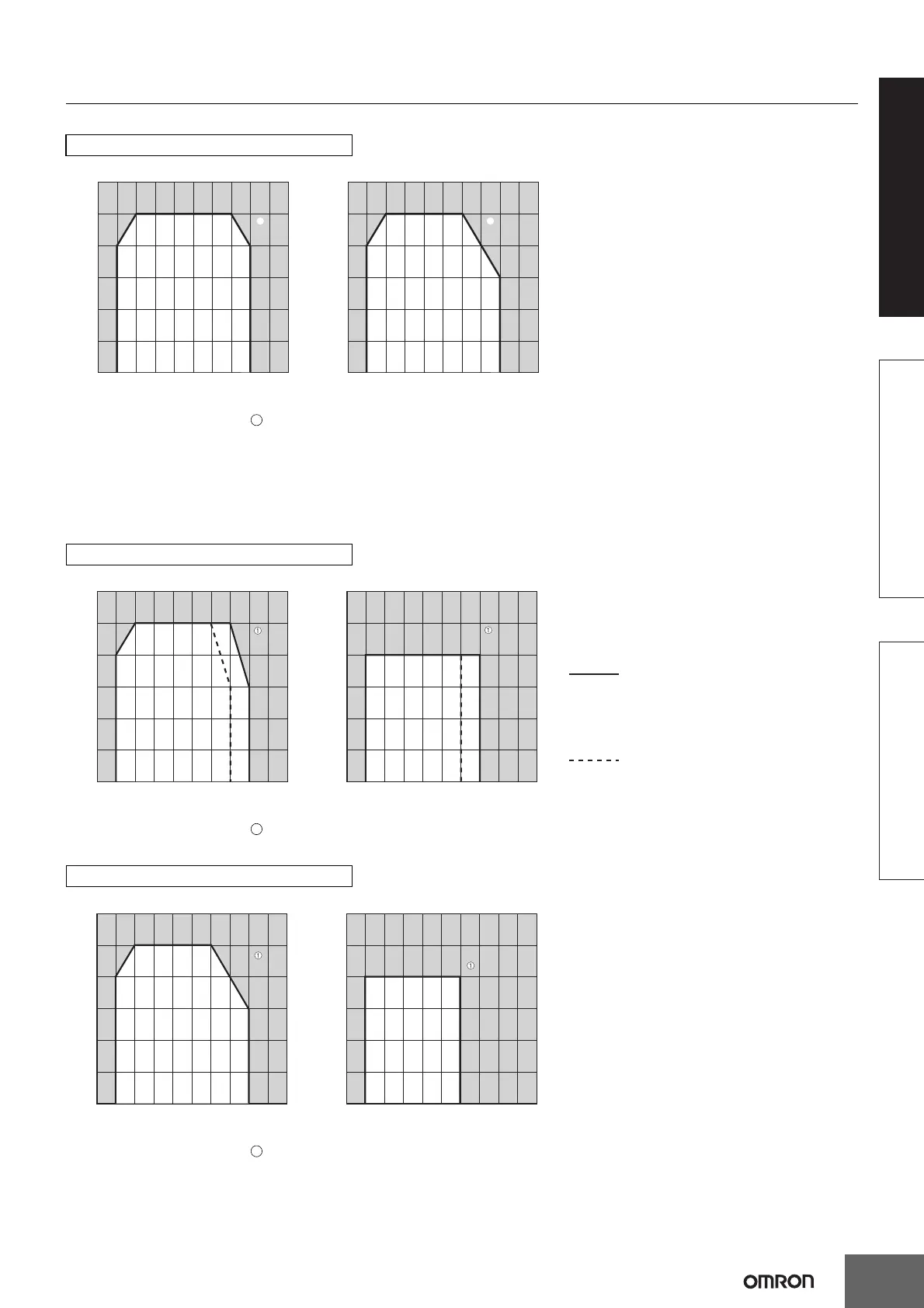

Derating Curves (Standard Mounting)
Open type Power Supplies Covered Power Supplies
Note: 1. Internal parts may occasionally deteriorate or be damaged. Do not use the Power Supply in areas outside the derating curve (i.e., the
area shown by shading in the above graph).
2. If there is a derating problem, use forced air-cooling.
3. For Customers Using a DC Input
When using an input voltage of less than 100 VDC, reduce the load calculated with the above derating curve by at least the following
coefficients.
35-W and 100-W (5-V or 12-V output) models: 0.8
50-W/150-W models: 0.85 (DC power cannot be input only to the S8JX-G15005@@.)
15-W and 100-W (24-V or 48-V output): 0.9
Single Unit Operation Parallel Operation
Note: 1. Internal parts may occasionally deteriorate or be damaged. Do not use the Power Supply in areas outside the derating curve (i.e., the
area shown by shading in the above graph).
2. If there is a derating problem, use forced air-cooling.
Single Unit Operation Parallel Operation
Note: 1. Internal parts may occasionally deteriorate or be damaged. Do not use the Power Supply in areas outside the derating curve (i.e., the
area shown by shading in the above graph).
15-/35-/50-/100-/150-W Models
300-/600-W 24V, 48V Models
600-W 5V, 12V Models
−20 −10 0 10 20 30 40 50 60 70 80
120
100
80
60
40
20
0
Load rate (%)
−20 −10 0 10 20 30 40 50 60 70 80
120
100
80
60
40
20
0
Load rate (%)
Ambient Temperature (°C) Ambient Temperature (°C)
A
A
1
Solid line
Dotted line
Front-mounting,
Bottom-mounting,
DIN Rail mounting,
Side mounting
(300W 5V, 12V/
600W 24V, 48V Models)
Side mounting
(300W 24V, 48V Models)
−20 −10 0 10 20 30 40 50 60 70 80
120
100
80
60
40
20
0
Load rate
(
%
)
−20 −10 0 10 20 30 40 50 60 70 80
120
100
80
60
40
20
0
Load rate (%)
Ambient Temperature (°C) Ambient Temperature (°C)
1
−20 −10 0 10 20 30 40 50 60 70 80
120
100
80
60
40
20
0
−20 −10 0 10 20 30 40 50 60 70 80
120
100
80
60
40
20
0
Load rate (%) Load rate (%)
Ambient Temperature (°C) Ambient Temperature (°C)
1
