S8JX
18
S8JX-G
S8JX-P

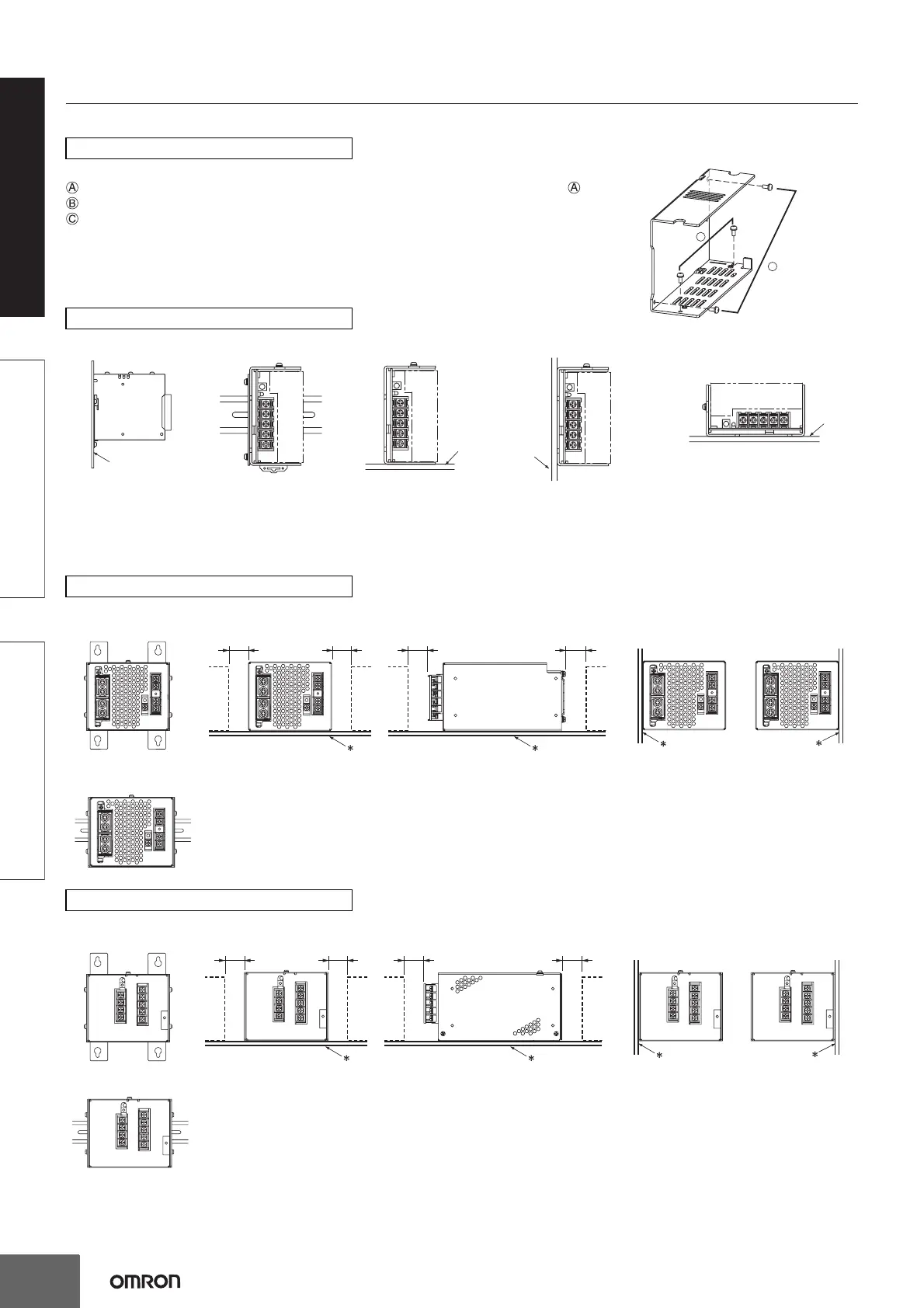

Common Precautions
Mounting
The following three mounting methods are possible.
.
Front-mounting: Refer to Mounting Bracket Provided with Front-mounting Power Supplies on page 26.
. Bottom-mounting
. Side-mounting
Note: Additional mounting methods are also available using DIN Rail-mounting models.
Standard Mounting
Note: 1. Improper mounting will interfere with heat dissipation and may occasionally result in deterioration or damage of internal parts. Use the
standard mounting method only.
2. When mounting the Power Supply, mounting it to a metal plate (*) is recommended.
3. Install the Power Supply so that the air flow circulates around the Power Supply, as the Power Supply is designed to radiate heat by
means of natural air flow.
ë
15-/35-/50-/100-/150-W Models
15-/35-/50-/100-/150-W Models
300-W 5V, 12V Model
300-W 24V, 48V Model
B
C
Front-mounting
*
DIN Rail-mounting
Bottom-mounting
*
Vertical Side-mounting
*
Horizontal Side-mounting
*
Front-mounting
Bottom-mounting
20mm min.20mm min.
20mm min.20mm min.
Side-mounting
DIN Rail mounting
Note: 1. Improper mounting will interfere with heat dissipation and may occasionally result in deterioration or
damage of internal parts. Use the standard mounting method only.
2. When mounting the Power Supply, mounting it to a metal plate (*) is recommended.
3. Do not cover the air holes (provided at fan mounted side and the opposite side) to have enough air-
cooling.
Front-mounting
20mm min. 20mm min. 20mm min.20mm min.
Bottom-mounting
Side-mounting
DIN Rail mounting
Note: 1. Improper mounting will interfere with heat dissipation and may occasionally result in deterioration or
damage of internal parts. Use the standard mounting method only.
2. When mounting the Power Supply, mounting it to a metal plate (*) is recommended.
3. Install the Power Supply so that the air flow circulates around the Power Supply, as the Power Supply
is designed to radiate heat by means of natural air flow.
