S8JX-G S8JX-P
Common Precautions

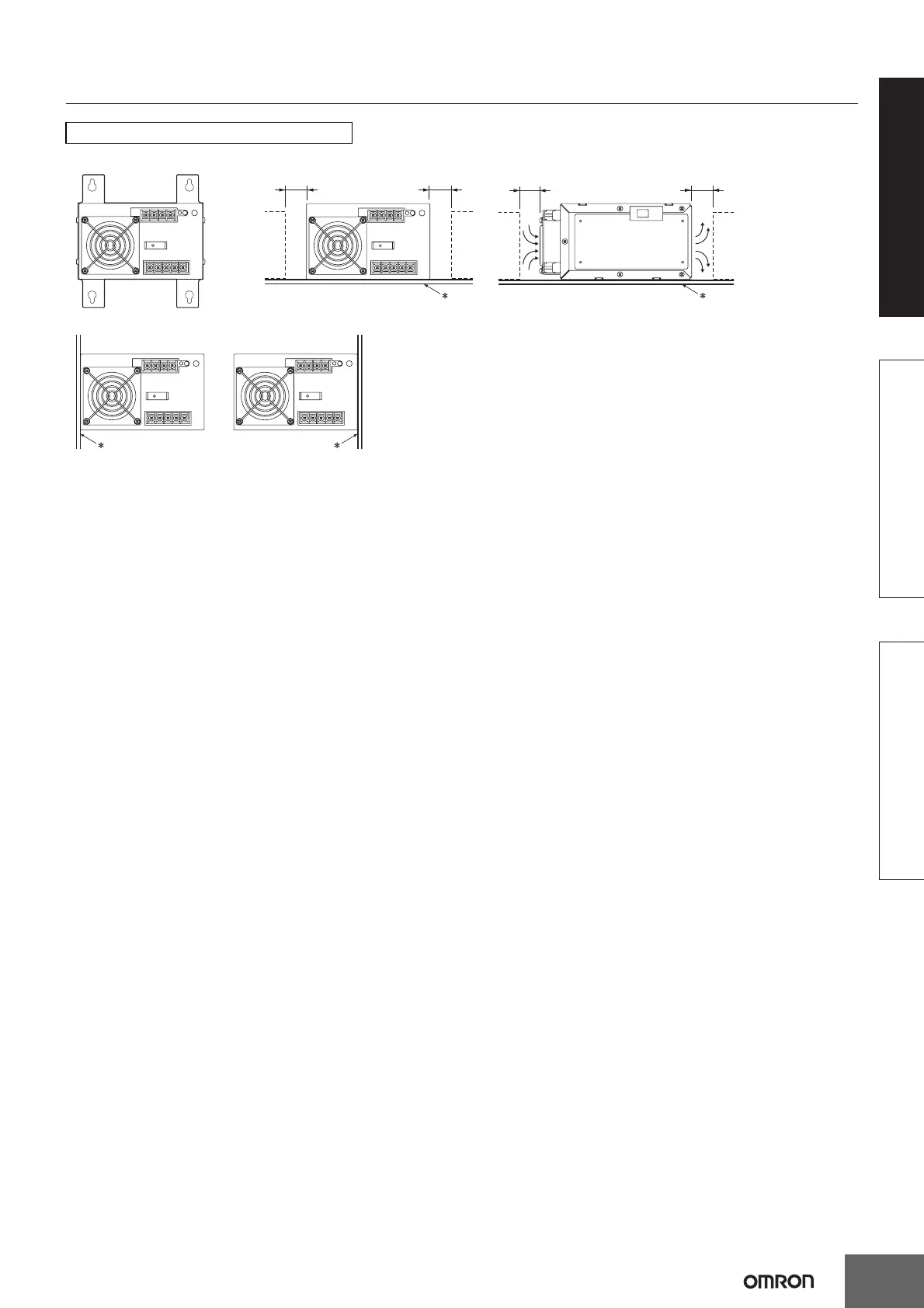

600-W Model
Front-mounting
20mm min.20mm min.
20mm min.
20mm min.
Bottom-mounting
Side-mounting
Note: 1. Improper mounting will interfere with heat dissipation and may occasionally
result in deterioration or damage of internal parts. Use the standard mounting
method only.
2. When mounting the Power Supply, mounting it to a metal plate (*) is
recommended.
3. Do not cover the air holes (provided at fan mounted side and the opposite
side) to have enough air-cooling.
