Common Precautions
Engineering Data
Derating Curves (Standard Mounting)
Front-mounting, DIN Rail mounting, Bottom-mounting,
Side-mounting
Note: 1. Internal parts may occasionally deteriorate or be damaged.
Do not use the Power Supply in areas outside the derating
curve (i.e., the area shown by shading in the above graph).
2. If there is a derating problem, use forced air-cooling.
3. (For Customers using 100-W type for a DC Input)
When using an input voltage of less than 100 VDC, reduce
the load calculated with the above derating curve by at least
the following coefficients.
When using a voltage exceeding 340 VDC, the ambient
temperature should be 60°C or less.
Note: 1. Internal parts may occasionally deteriorate or be damaged.
Do not use the Power Supply in areas outside the derating
curve (i.e., the area shown by shading in the above graph).
2. The ambient temperature is defined at a location 50 mm
forward from the center of the front surface of the product.
3. (For Customers using 300-/600-W type for a DC Input)
Reduce the load calculated with the above derating curve
by at least the following coefficients.
Front-mounting, DIN Rail mounting, Bottom-mounting
Horizontal-side-mounting
Note: 1. Internal parts may occasionally deteriorate or be damaged.
Do not use the Power Supply in areas outside the derating
curve (i.e., the area shown by shading in the above
graph).
2. If there is a derating problem, use forced air-cooling.
3. (For customers using 150-W type for a DC Input)
When using an input voltage of less than 100 VDC, reduce
the load calculated with the above derating curve by at least
the following coefficients.
When using a voltage exceeding 340 VDC, the ambient
temperature should be 60°C or less.

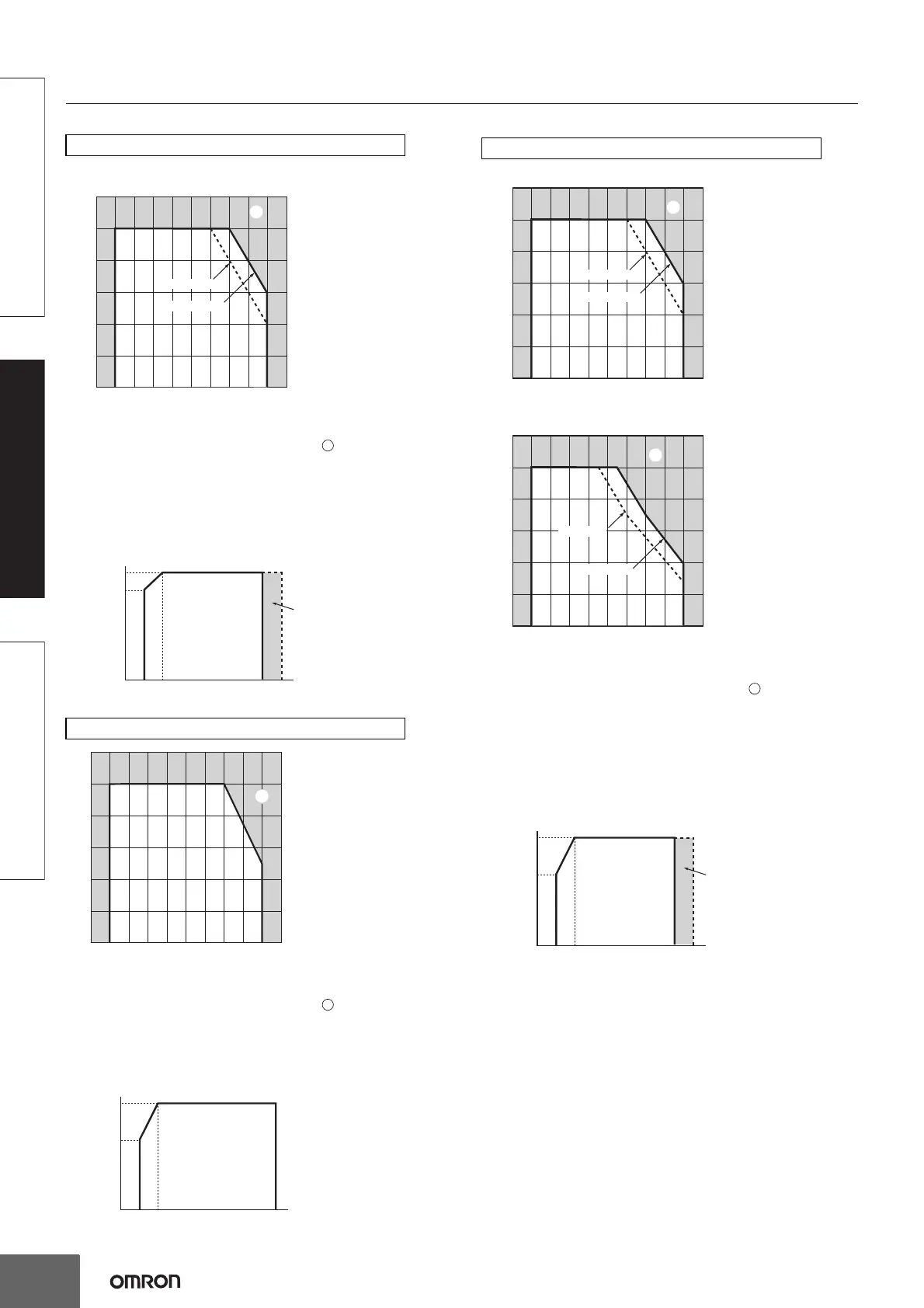

50-/100-W Models
300-/600-W Models
–20 –10 0 10 20 30 40 50 60 70 80
120
100
80
60
40
20
0
Ambient Temperature (°C)
Covered type
Open-frame type
1
Load rate (%)
1
0
0
Input voltage (VDC)
100
0.9
1.0
340 37080
Coefficient
Maximum operating
temperature 60°C
S8JX-P 100-W Models
–20 –10 0 10 20 30 40 50 60 70 80
120
100
80
60
40
20
0
Ambient Temperature (°C)
Load rate (%)
1
1
0
0
Input voltage (VDC)
Coefficient
100
1.0
0.8
37080
S8JX-P 300-/600-W Models
150-W Models
–20 –10 0 10 20 30 40 50 60 70 80
120
100
80
60
40
20
0
Ambient Temperature (°C)
Covered type
Open-frame type
1
Load rate (%)
–20 –10 0 10 20 30 40 50 60 70 80
120
100
80
60
40
20
0
Ambient Temperature (°C)
1
Load rate (%)
Covered type
Open-frame type
1
0
0
Input voltage (VDC)
100
1.0
0.8
340 37080
Coefficient
Maximum operating
temperature 60°C
S8JX-P 150-W Models
