Omron S8JX-G Series User Manual

S8JX
37
S8JX-G S8JX-P
Common Precautions
* The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 240 VAC (85 to 264 VAC).
* The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 240 VAC (85 to 264 VAC).

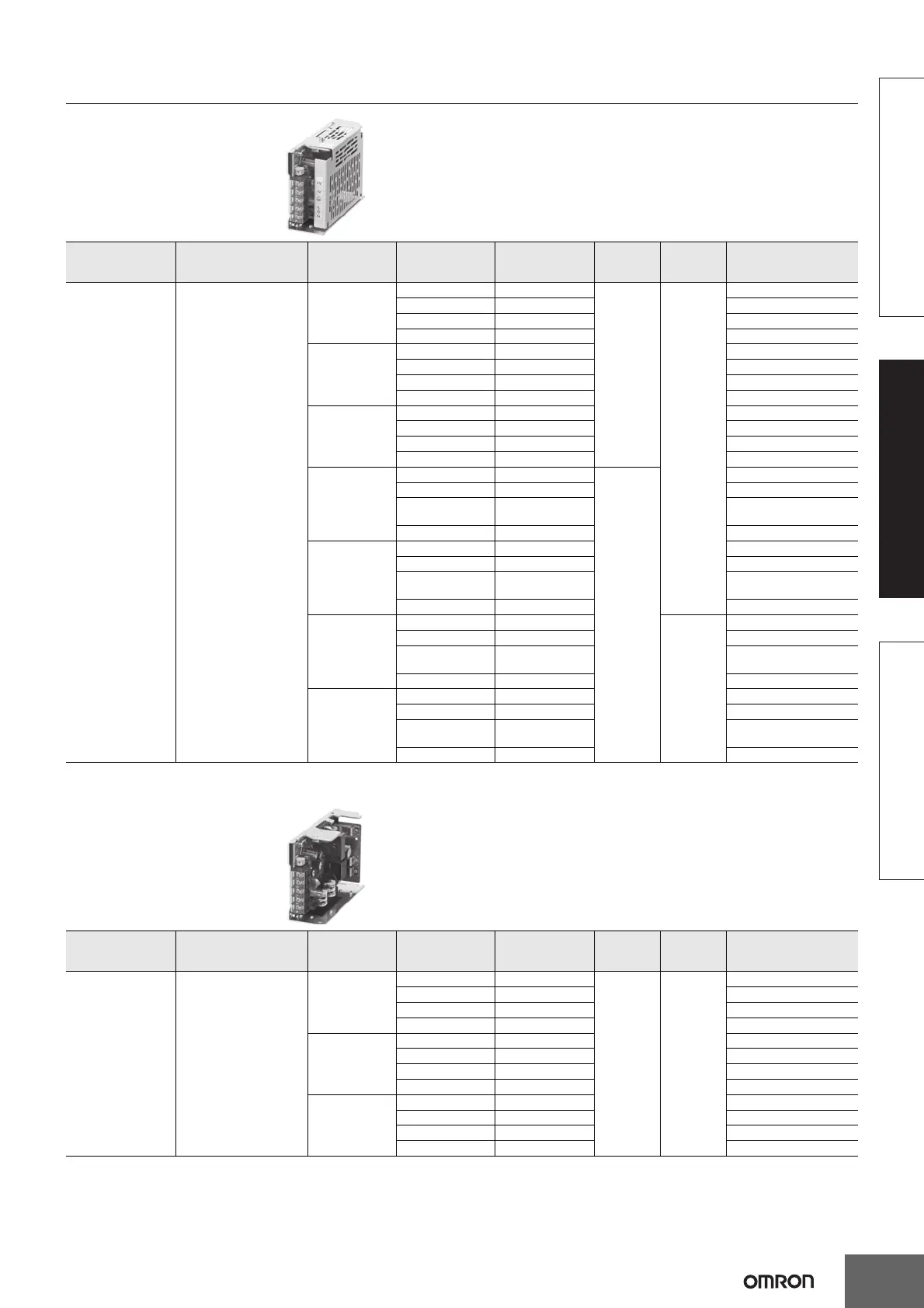

Configuration Input voltage Power ratings
Output voltage
(VDC)
Output current Built-in fan
Front-
mounting
bracket
Model
Covered Power
Supplies
100 to 240 VAC (free)
(80 to 370 VDC *)
050 W
05 V 10 A
No
Provided
S8JX-P05005C
12 V 4.2 A S8JX-P05012C
24 V 2.1 A S8JX-P05024C
48 V 1.1 A S8JX-P05048C
100 W
05 V 20 A S8JX-P10005C
12 V 8.5 A S8JX-P10012C
24 V 4.5 A S8JX-P10024C
48 V 2.1 A S8JX-P10048C
150 W
05 V 30 A S8JX-P15005C
12 V 13 A S8JX-P15012C
24 V 6.5 A S8JX-P15024C
48 V 3.3 A S8JX-P15048C
300 W
5 V 60 A
Yes
S8JX-P30005C
12 V 27 A S8JX-P30012C
24 V
14 A
peak current
16.5 A
(200 VAC)
S8JX-P30024C
48 V 7 A S8JX-P30048C
600 W
5 V 120 A S8JX-P60005C
12 V 53 A S8JX-P60012C
24 V
27 A peak current
31 A (200 VAC)
S8JX-P60024C
48 V 13 A S8JX-P60048C
300 W
5 V 60 A
No
S8JX-P30005N
12 V 27 A S8JX-P30012N
24 V
14 A peak current
16.5 A (200 VAC)
S8JX-P30024N
48 V 7 A S8JX-P30048N
600 W
5 V 120 A S8JX-P60005N
12 V 53 A S8JX-P60012N
24 V
27 A peak current
31 A (200 VAC)
S8JX-P60024N
48 V 13 A S8JX-P60048N
Configuration Input voltage Power ratings
Output voltage
(VDC)
Output current Built-in fan
Front-
mounting
bracket
Model
Open type Power
Supplies
100 to 240 VAC (free)
(80 to 370 VDC *)
050 W
05 V 10 A
No Provided
S8JX-P05005
12 V 4.2 A S8JX-P05012
24 V 2.1 A S8JX-P05024
48 V 1.1 A S8JX-P05048
100 W
05 V 20 A S8JX-P10005
12 V 8.5 A S8JX-P10012
24 V 4.5 A S8JX-P10024
48 V 2.1 A S8JX-P10048
150 W
05 V 30 A S8JX-P15005
12 V 13 A S8JX-P15012
24 V 6.5 A S8JX-P15024
48 V 3.3 A S8JX-P15048
Front-mounting *
Front-mounting *
