Omron S8VK-S Series User Manual

S8VK-S
7

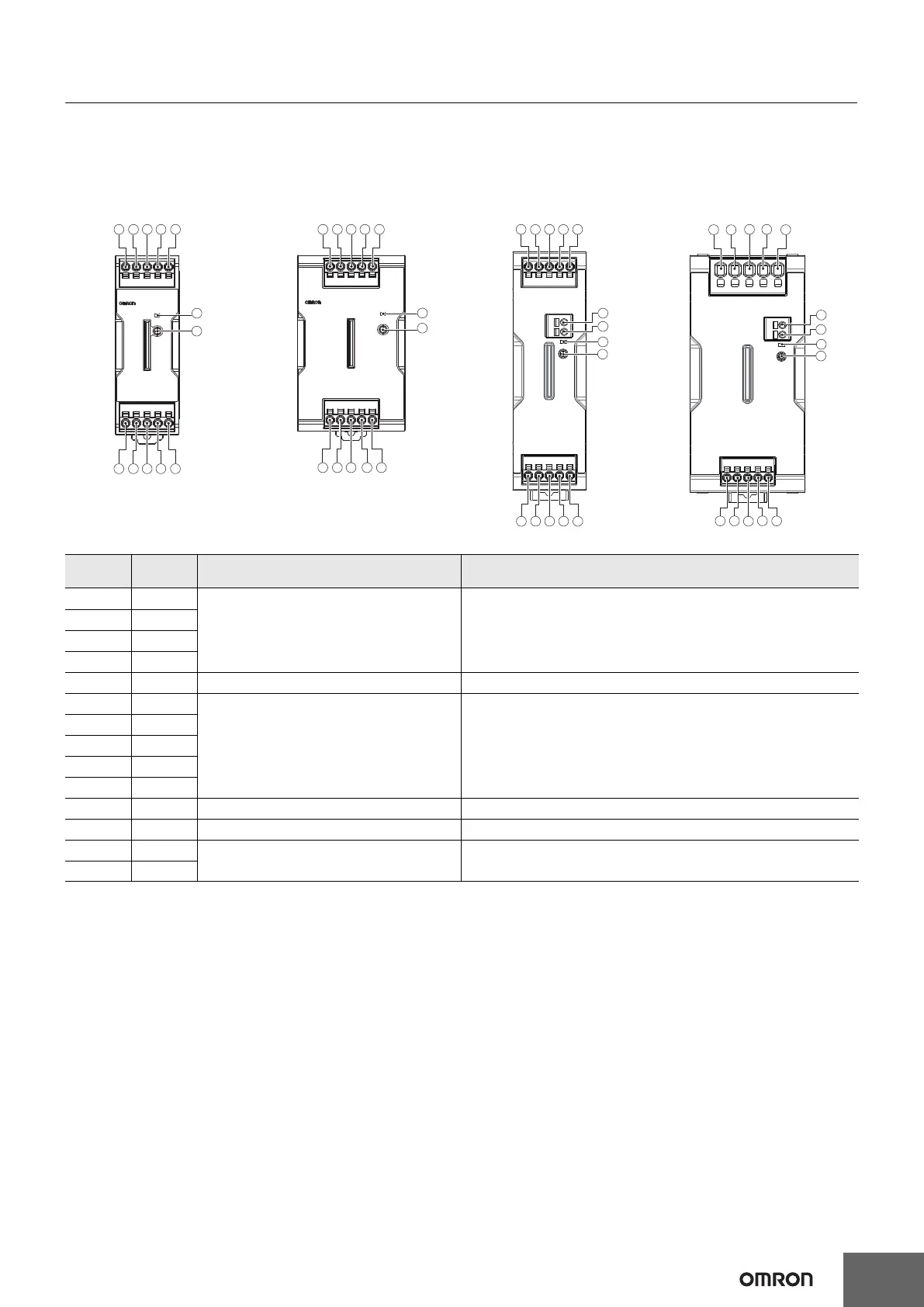

Construction and Nomenclature
Nomenclature
*1. The fuse is located on the (L) side. It is not user-replaceable. For a DC input, connect the positive voltage to the L terminal.
*2. This is the protective earth terminal specified in the safety standards. Always ground this terminal.
30-W and 60-W Models 120-W Models 240-W Models 480-W Models
S8VK-S03024
S8VK-S06024
S8VK-S12024 S8VK-S24024 S8VK-S48024
No.
Terminal
name
Name Function
1L1
Input terminals Connect the input lines to these terminals.
*1
2L2
3N1
4N2
5 PE Protective Earth terminal (PE) Connect the ground line to this terminal.
*2
6+V1
DC Output terminals Connect the load lines to these terminals.
7+V2
8-V1
9-V2
10 -V3
11 --- Output indicator (DC ON: Green) The green indicator indicates when a DC voltage is being output.
12 --- Output voltage adjuster (V.ADJ) Use to adjust the voltage.
13 DC LOW1
Low-voltage detection output terminals Low-voltage detection output signal wire is connected.
14 DC LOW2
6789 10
12345
11
12
6789 10
123 45
11
12
6
7
8
9
10
1
2 3 4
5
11
13
14
12
6
7
8
9
10
1
2
3
4
5
11
13
14
12
