Switch Mode Power Supply S8VM 15

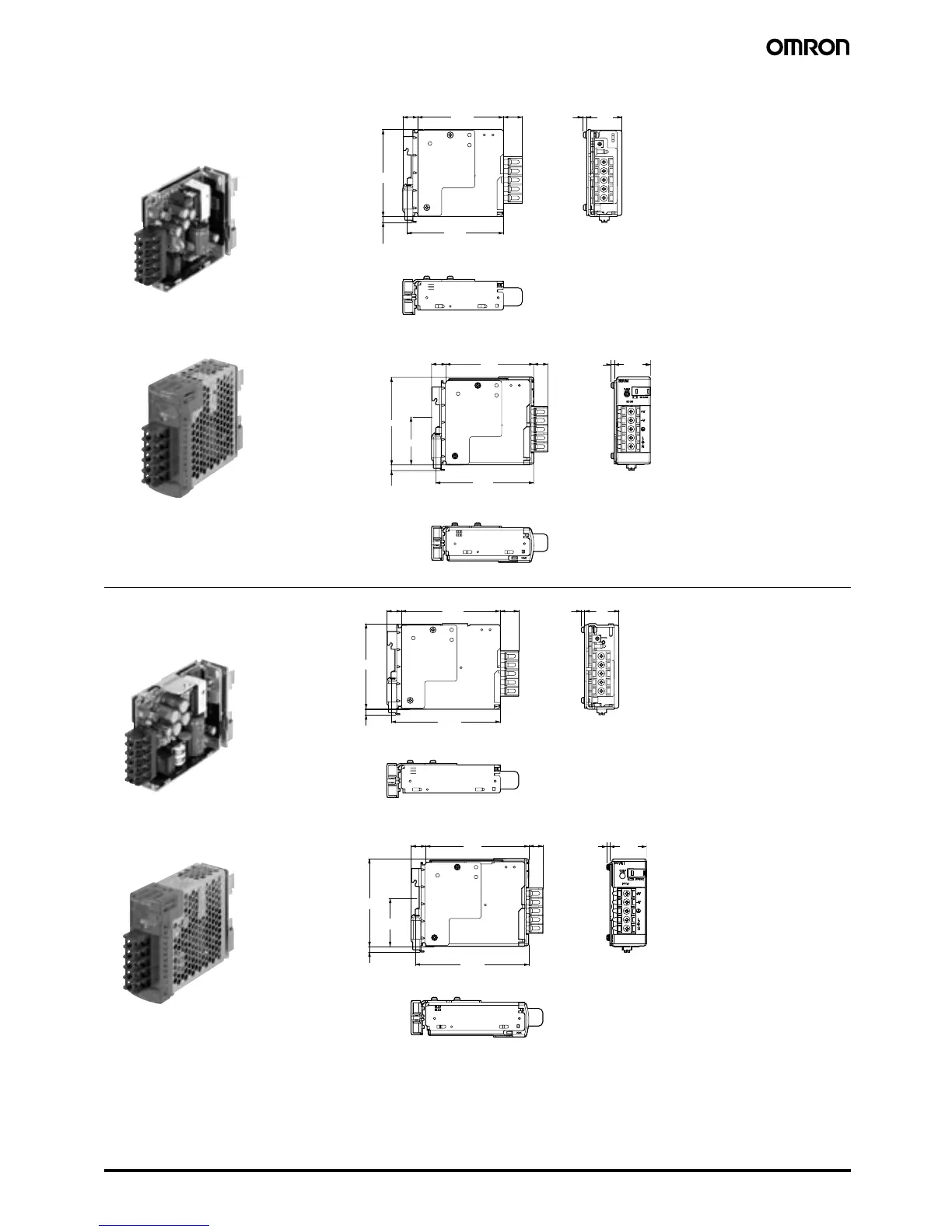

� DIN Rail Mounting Bracket Models
17.6 max.
3.5 max.
14
5.4 (Sliding: 9 max.)
80.5
81.5
90.4
33
84.5
46.2
84.5
94.4
15 max.
35.1
3.5 max.
14
5.4 (Sliding: 9 max.)
S8VM-015@@D
S8VM-015@@CD
S8VM-01524AD
Note: The image is the S8VM-01524D Model.
Note: The image is the S8VM-01524AD Model.
33
17.6 max.
3.5 max.
14
82
5.4 (Sliding: 9 max.)
105.4
95.5
99.5
15 max.
14
109.4
46.2
84.5
3.5 max.
35.1
5.4 (Sliding: 9 max.)
S8VM-030@@D
S8VM-030@@CD
S8VM-03024AD
Note: The image is the S8VM-03024D Model.
Note: The image is the S8VM-03024AD Model.
Switch Mode Power Supply S8VM 19

Omron S8VM Series Specifications

General

Input Voltage Range	85-264 VAC, 120-370 VDC
Output Voltage	5V, 12V, 15V, 24V, 48V
Output Power	100W, 150W, 300W
Protection	Overcurrent, Overvoltage
Cooling	Convection
Mounting	DIN rail mounting
Safety Standards	UL508, EN50178, EN60950-1
Dimensions	Varies by model (refer to datasheet)
Weight	Varies by model (refer to datasheet)
