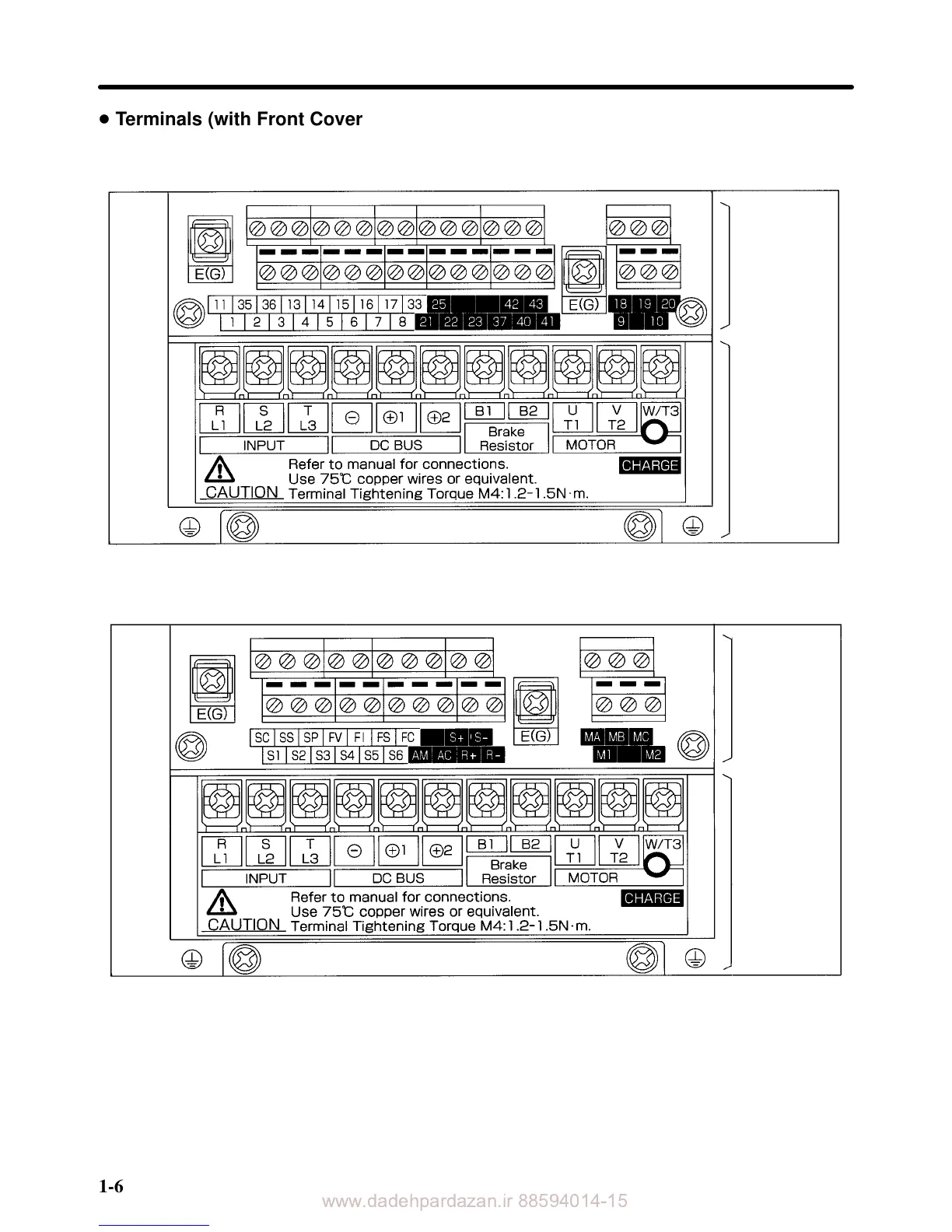

D Terminals (with Front Cover Removed)
3G3FV Series: 400-V Class Inverter with 3.7-kW Output
Control
circuit
terminals
Main circuit
terminals
3G3HV Series: 400-V Class Inverter with 3.7-kW Output
Control
circuit
terminals
Main circuit
terminals
