Omron SYSDRIVE 3G3FV-*-CUE - Page 22

www.dadehpardazan.ir 88594014-15
2-3

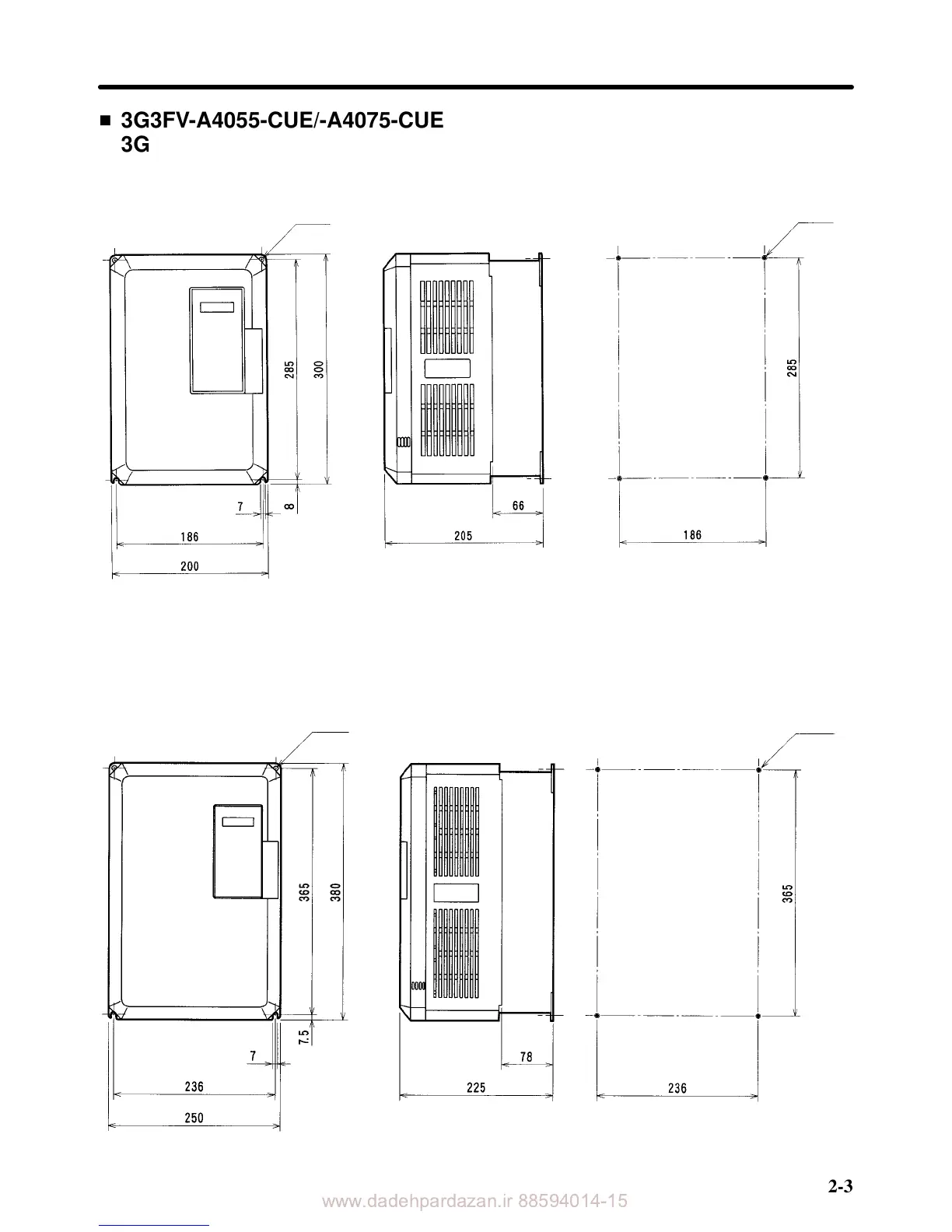

H 3G3FV-A4055-CUE/-A4075-CUE
3G3HV-AB022-CE/-AB037-CE/-A4055-CUE/-A4075-CUE
D External Dimensions D Mounting Dimensions
Two, 7 dia.
Four, M6
H 3G3FV-A4110-CUE/-A4150-CUE
3G3HV-A4110-CUE/-A4150-CUE
D External Dimensions D Mounting Dimensions
Two, 7 dia.
Four, M6
Installation Chapter 2
