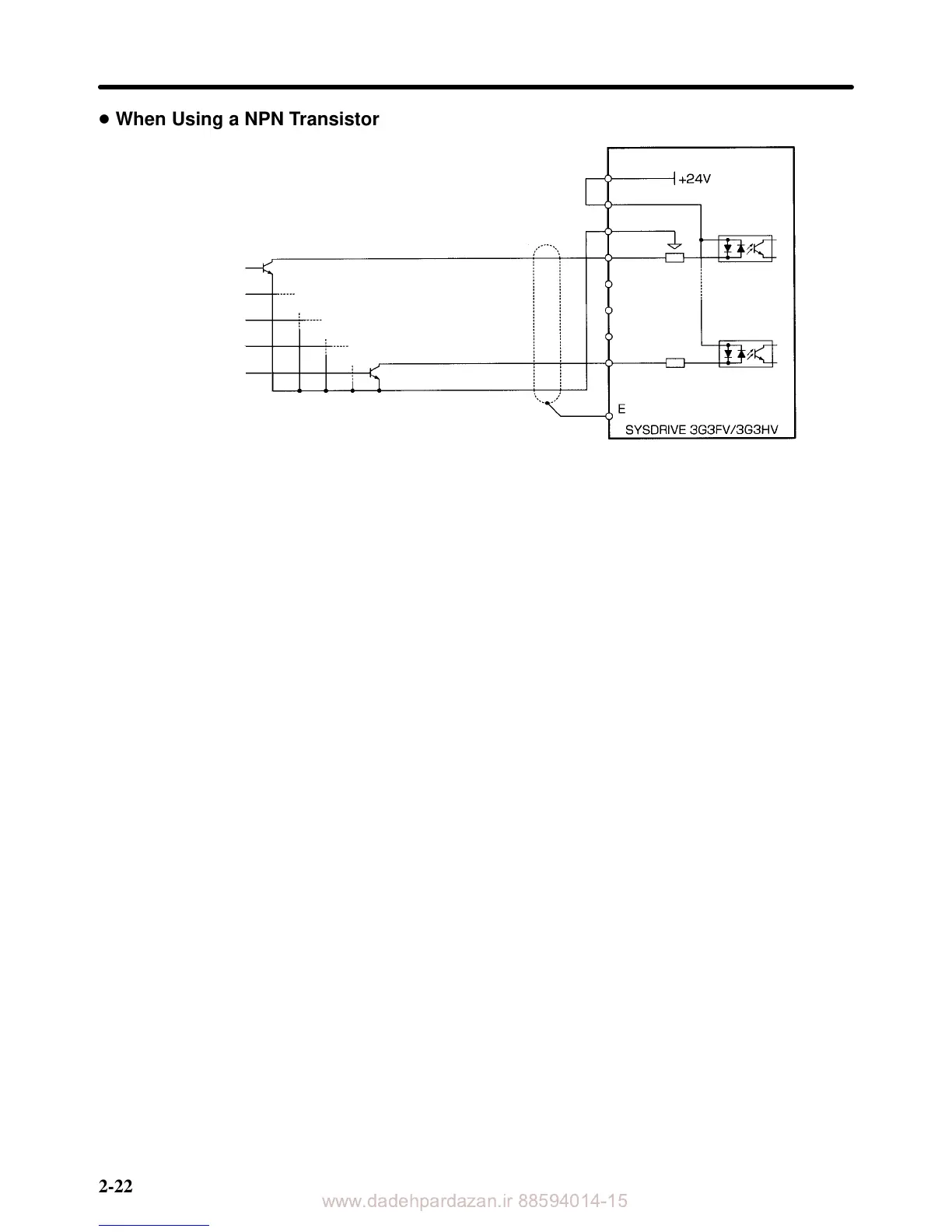

D When Using a NPN Transistor (Open Collector) for Control Signals
Forward/stop
(See note)
36/SP
11/SC
35/SS
1/S1
Note Numeric characters indicate terminal numbers for the 3G3FV and alphanumeric characters indi-
cate terminal numbers for the 3G3HV.
Installation Chapter 2
