2-27

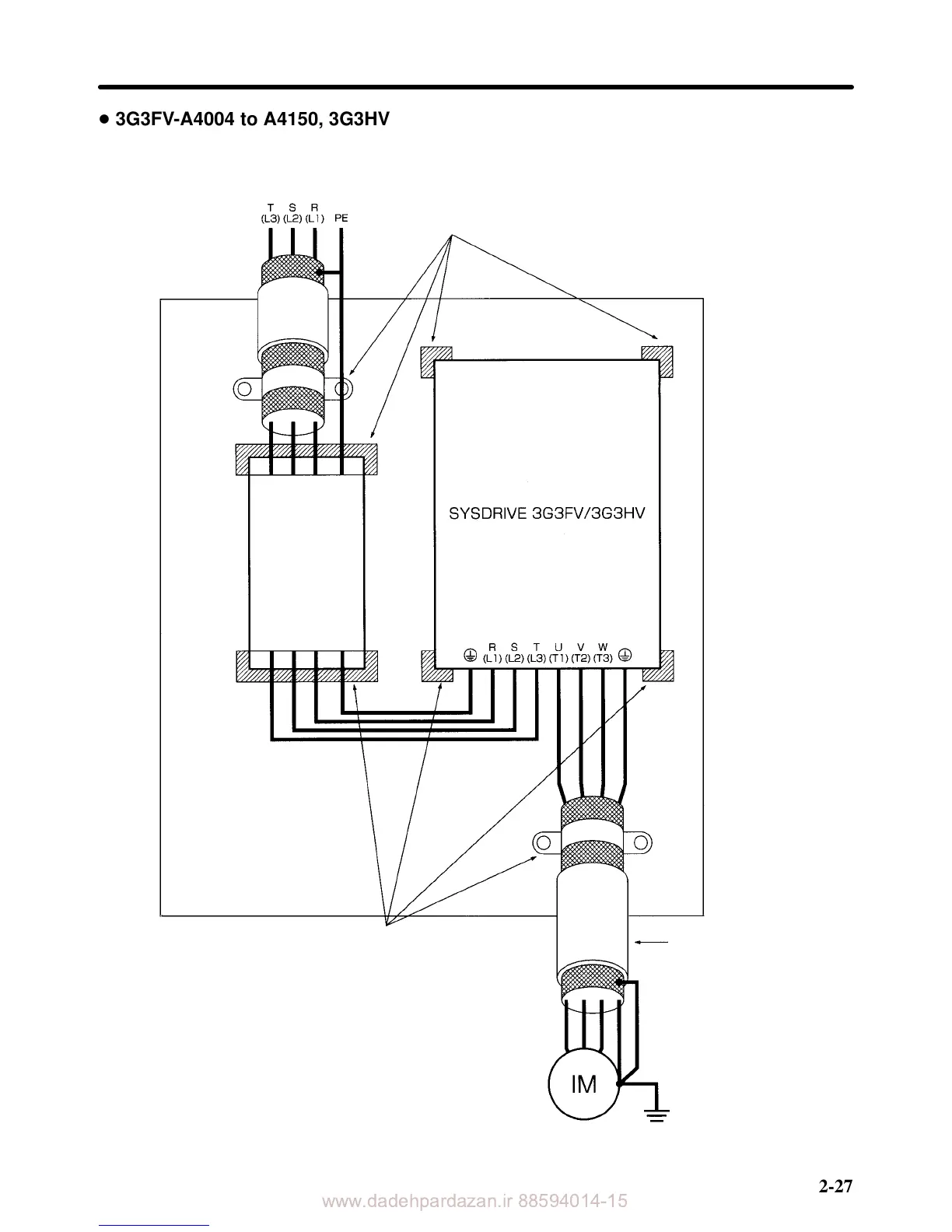

D 3G3FV-A4004 to A4150, 3G3HV-A4004 to A4150
Ground bonds (remove any paint.)
Mains
Filter
Load
Cable length: 40 cm max.
Metal plate
Ground bonds (remove any paint.)
Motor cable: 20 m max.
Installation of Noise Filter and Inverter
