V500/V520 Bar Code Reader Protocol Appendix M
Preset Data Set (V500) (Sequence No. 357 (Hex 0165))
This sequence sets preset data.
Send Data Word Allocation (3rd Operand of PMCR(260))
Receive Data Word Allocation (4th Operand of PMCR(260))
None.
BCR Connection Confirmation (V500) (Sequence No. 358 (Hex
0166))
This sequence confirms whether the Bar Code Reader is connected correctly or not.
Send Data Word Allocation (3rd Operand of PMCR(260))
None.
Receive Data Word Allocation (4th Operand of PMCR(260))
None.

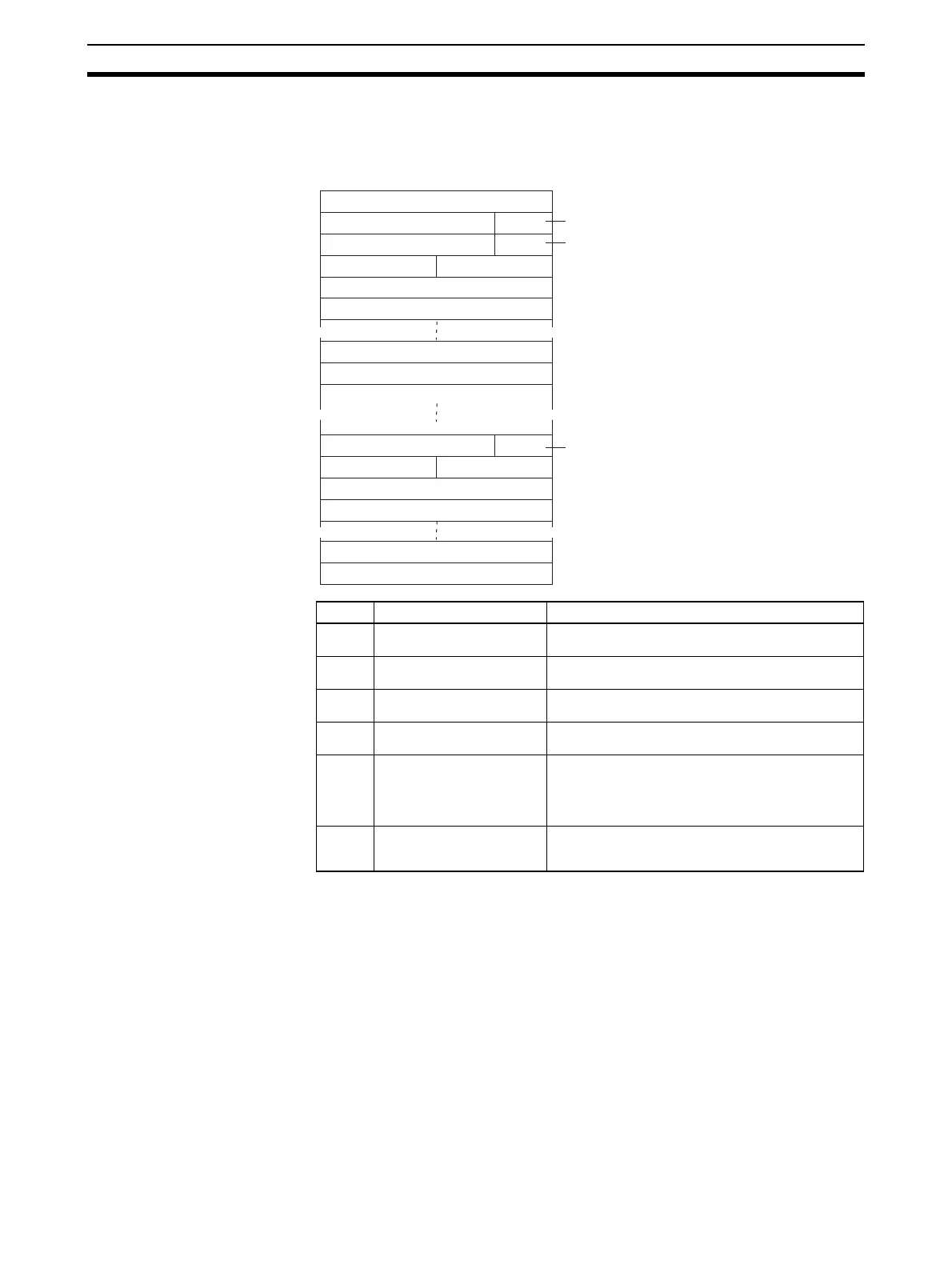

Offset Contents (data format) Data
+0 Number of send data words
(4 digits Hex)
18N+2 (N is number of presets 1 to 5)
+1 Number of presets
(1 digit BCD)
1 to 5
+2 Preset data No.
(1 digit BCD)
1 to 5
+3 Data length
(2 digits BCD)
01 to 32
+4 to
+19
Preset data (ASCII) Combination of the following ASCII characters and up
to 32 characters maximum:
30 (’0’) to 39 (’9’)
41 (’A’) to 5A (’Z’), 3F (’?’)
The area that is not used is undefined
+20 to
+91
Store repeatedly the contents of words with offsets +2
to +19 the same number of times as the number of
presets (N)
First word of
(Undefined)
Number of units
+0
+1
+2
+3
+4
+5
+18
+19
+(18N+2)
+(18N+3)
+(18N+4)
+(18N+5)
+(18N+18)
+(18N+19)
Number of send data words
send data
~ ~
Preset data
(Undefined)
Number of presets
Preset data
(Undefined)
Preset data No.
(Undefined)
Preset data No.
Preset data
Preset data
Preset data
~ ~
(Undefined)
Number of units
Preset data
~ ~
Preset data
Preset data
