Hayes Modem AT Command Protocol Appendix Q
MD144FB5V (OMRON, No longer manufactured.)
The following command is set in the words specified by the second operand of PMCR(260).
ATE0V0X4\V2\N3%C0*C0\Q0&M0&D0%B9600S26=10
ME1414BIII/ME2814BII (OMRON)
The following command is set in the words specified by the second operand of PMCR(260).
AT\J1B8E0V0S0=1X4\V2\N3&M0%C0&D0&E0\X1S26=10
Note Turn ON DIP switch SW3 on in the rear of the Modem.
Dialling (Sequences No. 561 (Hex 0231), No. 571 (Hex 023B), and
No. 581 (Hex 0245))
To dial a telephone numbers for the OMRON ME1414BIII/ME2814BII Modems using sequences No. 561, 571,
581, set the dialling command and telephone number in the words specified by the 3rd operand of PMCR(260).
However, for other Modems, make the following settings for the Data Communications sequence.
This is an example of telephone number settings for the above mentioned 4 OMRON Modems.

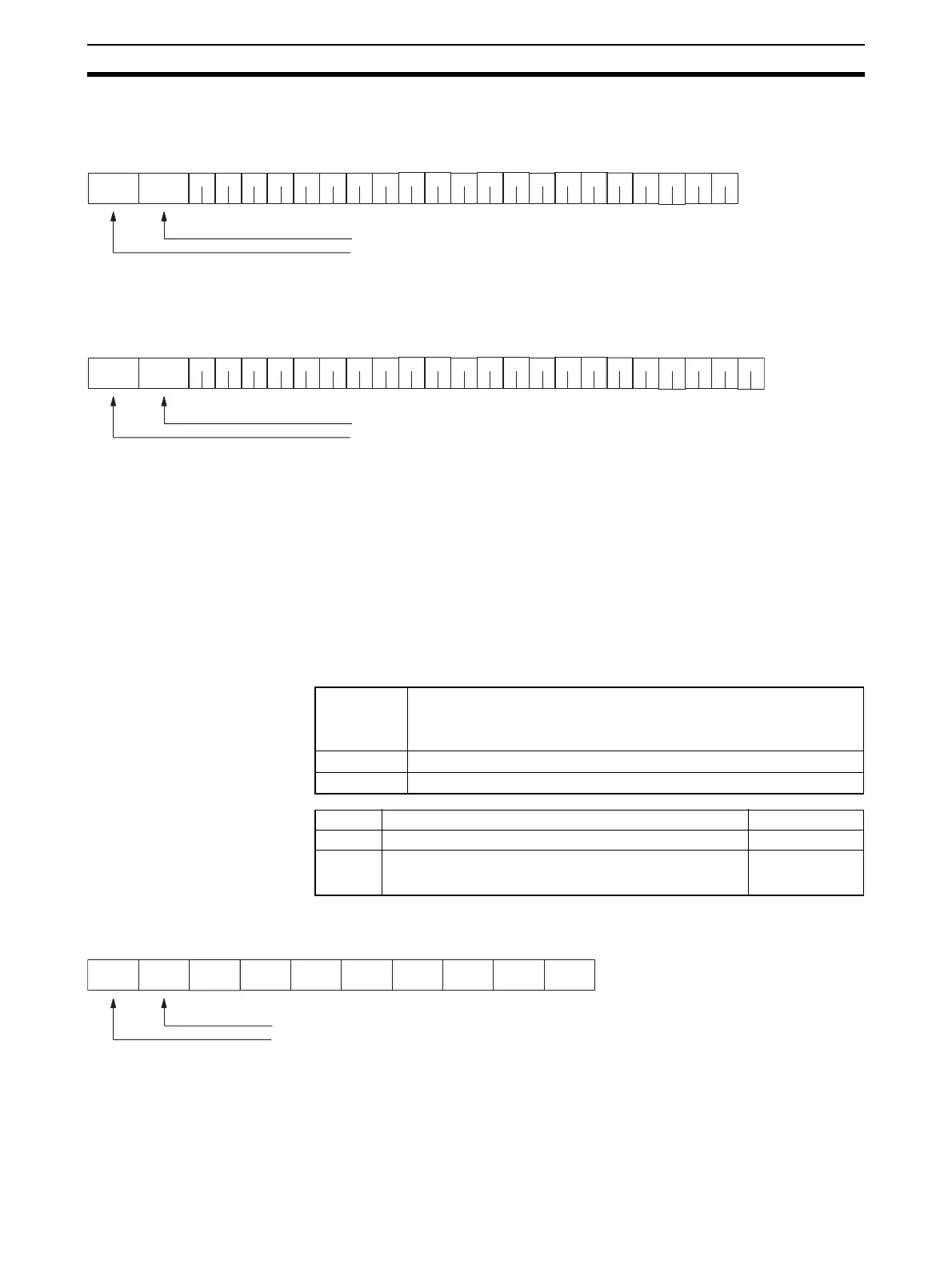

Operand and Send Data Word Settings of PMCR(260)
Setting Example
If telephone number is 03-0123-4567
Note 1. This example uses a tone line. Change ATDT to ATDP for pulse lines.
2. Fill the telephone number to the left in the words if the character string length of the dialling operation
is an odd number of bytes.
OPR 2 MD24FB10V #0231
MD144FB5V #023B
ME1414BIII/ME2814BII #0245
OPR 3 First address S of send data (dialling operation)
OPR 4 None (Set #0000)
S+0 Number of words from address set for operand 2 to end of data 4 digits Hex
S+1 Number of bytes of send data (dialling operation) 4 digits Hex
S+2
:
S+n
Send data (dialling operation)
(Fill data to left for odd numbers of bytes)
ASCII
Character string length of modem initialization command (bytes)
Code length of PMCR(260) when it is used (words)
A
TE0V0X4\V2 \N3%C0 *C0\Q0 &M0&D0%B 9
0029
0017
6
00S2 6=10
Character string length of modem initialization command (bytes)
Code length of PMCR(260) when it is used (words)
A
T\J1B8E0V0S0=1X
4
\V2
\
N
3
&M0
%
C
0
&D0
002C
0018
&
E0 \
X
1
S
26=
10
Character string length of dialling operation sent to modem (bytes)
Code length of PMCR(260) when it is used (words)
0010
000A 4154
A T
4454
D T
3033
0 3
2D30
– 0
3132
1 2
332D
3 –
3435
4 5
3637
6 7
