Checking the Result Section 8-5
180
8-5 Checking the Result

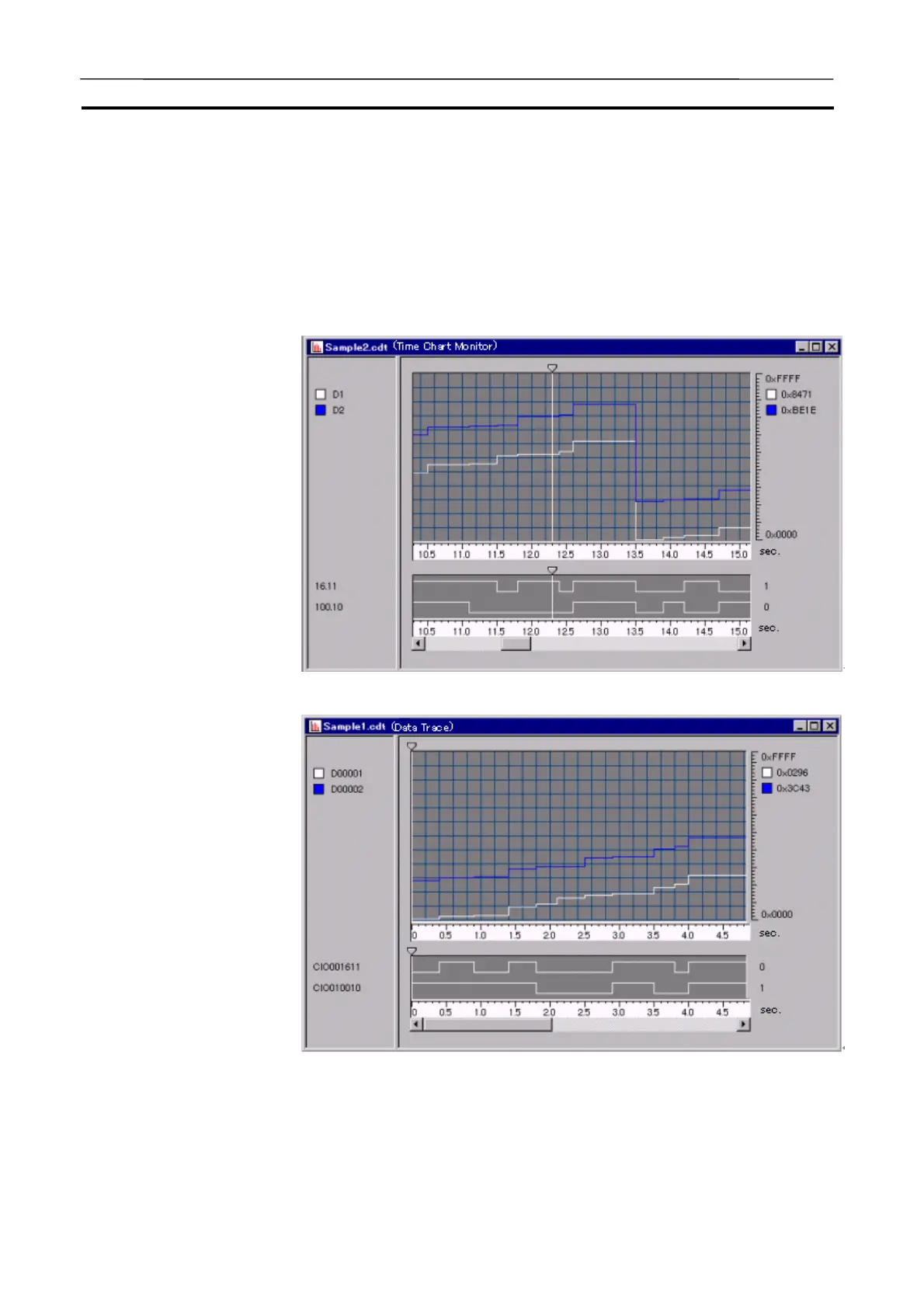

8-5-1 Checking by Time Chart Monitor of the CX-Programmer
The results from virtual external inputs can be checked by the time chart
monitor or the data trace of the CX-Programmer. Displaying the data of virtual
external inputs and its results simultaneously allows to confirm the operation
results and timing of the ladder program.
