4 - 15
4 Installation and Wiring
NX-series Communications Interface Units User’s Manual (W540)
4-3 Wiring the Terminals
4
4-3-1 Wiring the Screwless Clamping Terminal Blocks

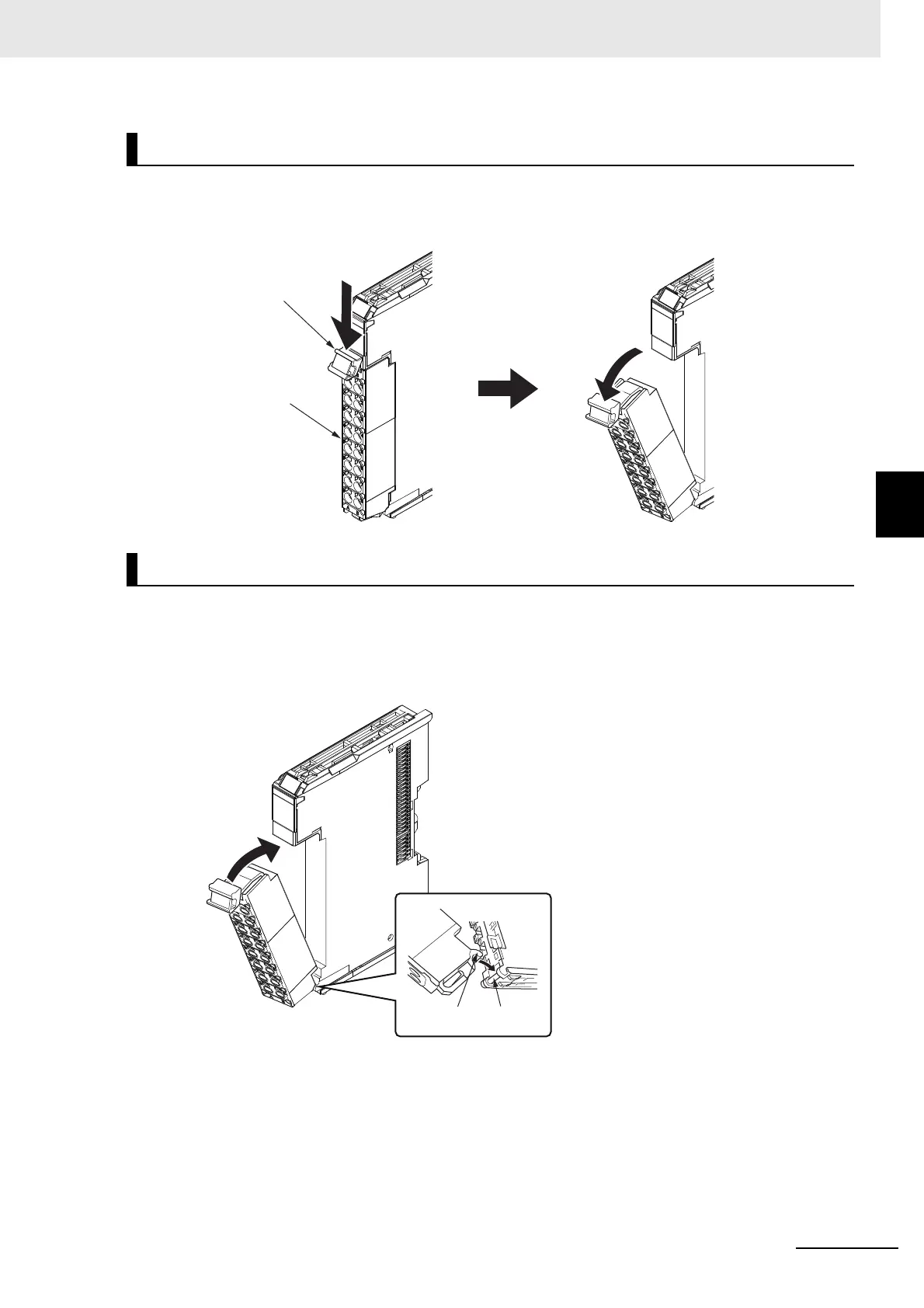

1 Press the lock lever on the terminal block and pull out the top of the terminal block to remove it.
1 Mount the terminal block hook on the guide at the bottom of the NX Unit, lift up the terminal
block, and press in on the top of the terminal block until you hear it engage.
The terminal block will click into place
on the Unit.
After you mount the terminal block, make
sure that it is locked to the Unit.
Refer to Terminal Block on pag
e 3-3 for the applicable terminal blocks.
Removing a Terminal Block
Attaching a Terminal Block
Lock lever
Terminal block
GuideHook
