80

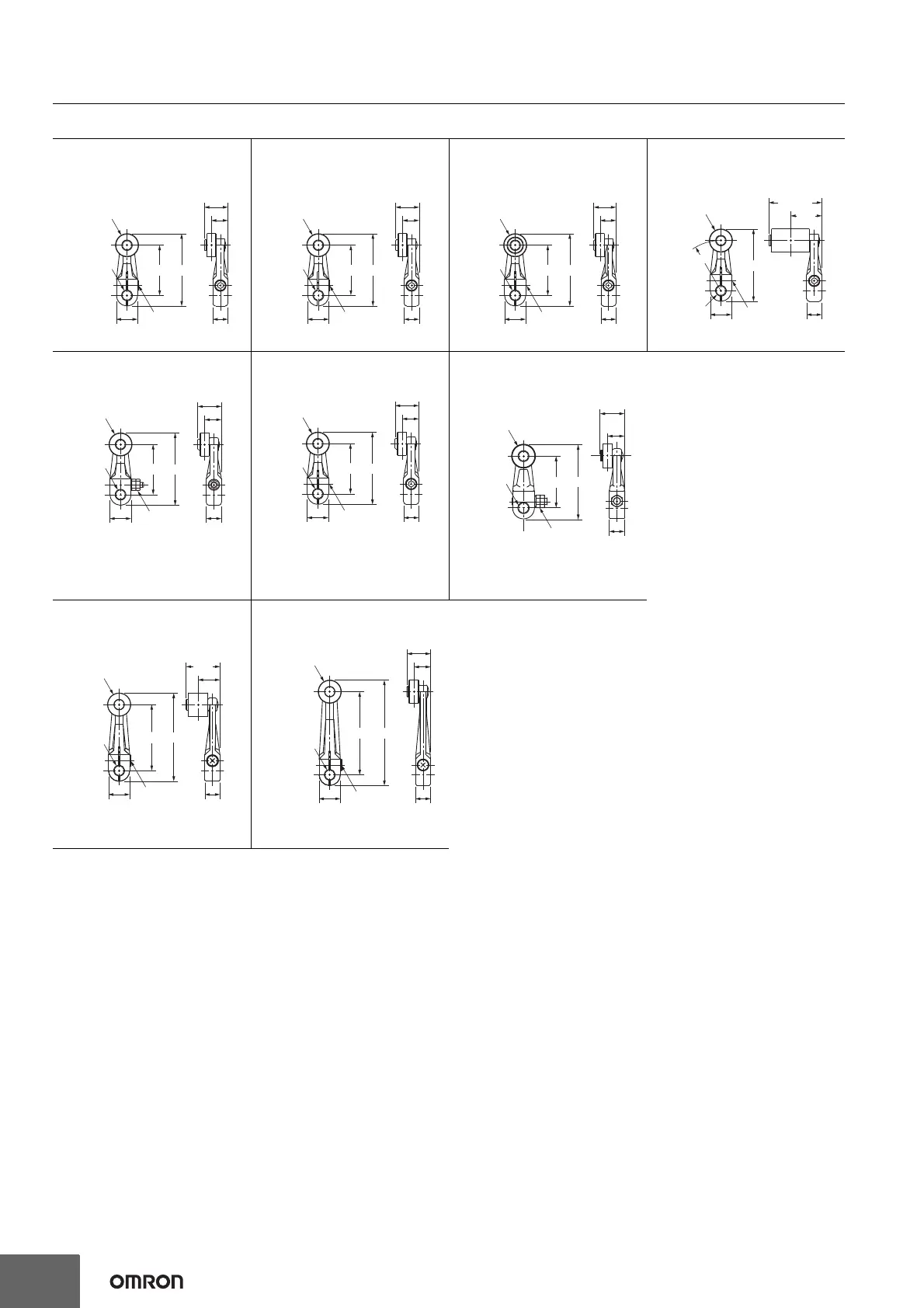

WL-N/WLG
Actuators
Note: Unless otherwise indicated, a tolerance of ±0.4 mm applies to all dimensions.
11.4
17.5 dia. (length: 7)
stainless sintered roller
7.3-dia.
mounting
holes
38
16
M5
Allen-head bolt
54.8
17.9
12.6
WL-1A100
Standard Lever
11.4
38
16
54.8
17.9
12.6
17.5 dia. (length: 7)
resin roller
7.3-dia.
mounting
holes
M5
Allen-head bolt
WL-1A115
Resin Roller
11.4
38
16
54.8
16.9
12.1
17 dia. (length: 6)
bearing roller
7.3-dia.
mounting
holes
M5
Allen-head bolt
WL-1A400
Bearing Roller
11.4
16
54.8
40.2
±0.8
23.6
R38
17.5 dia. (length: 30)
Nylon roller
7.3-dia.
mounting
holes
M5
Allen-head bolt
WL-1A118
Nylon Roller:
Roller Width: 30 mm
11.4
38
16
54.8
17.9
12.6
17.5 dia. (length: 7)
stainless sintered roller
7.3-dia.
mounting
holes
Two, M5 Allen-
head n
ut and
ar
m set screw
WL-1A105
Double Nuts
11.4
38
±0.2
16
54.8
17.9
12.6
17.5 dia. (length: 7)
stainless sintered roller
7.3-dia.
mounting
holes
M5
Allen-head bolt
WL-1A103S
Spatter Prevention
11.4
17.5 dia. (length: 7)
stainless sintered roller
7.3-dia.
mounting
holes
38
54.8
17.9
12.6
Two, M5
Allenhead n
ut and
ar
m set screw
WL-105S
Spatter Prevention
11.4
50
16
66.8
25.7
16.6
17.5 dia.
(length:
15)
stainless sintered roller
7.3-dia.
mounting
holes
M5
Allen-head bolt
WL-1A200
Lever Length: 50
Roller Width: 15
11.4
16
79.8
17.9
12.6
63 ±0.3
17.5 dia. (length: 7)
stainless sintered roller
7.3-dia.
mounting
holes
M5
Allen-head bolt
WL-1A300
Lever Length: 63
