on networks N300RE User Manual

Extender Network Settings
20
N300RE WiFi Range Extender

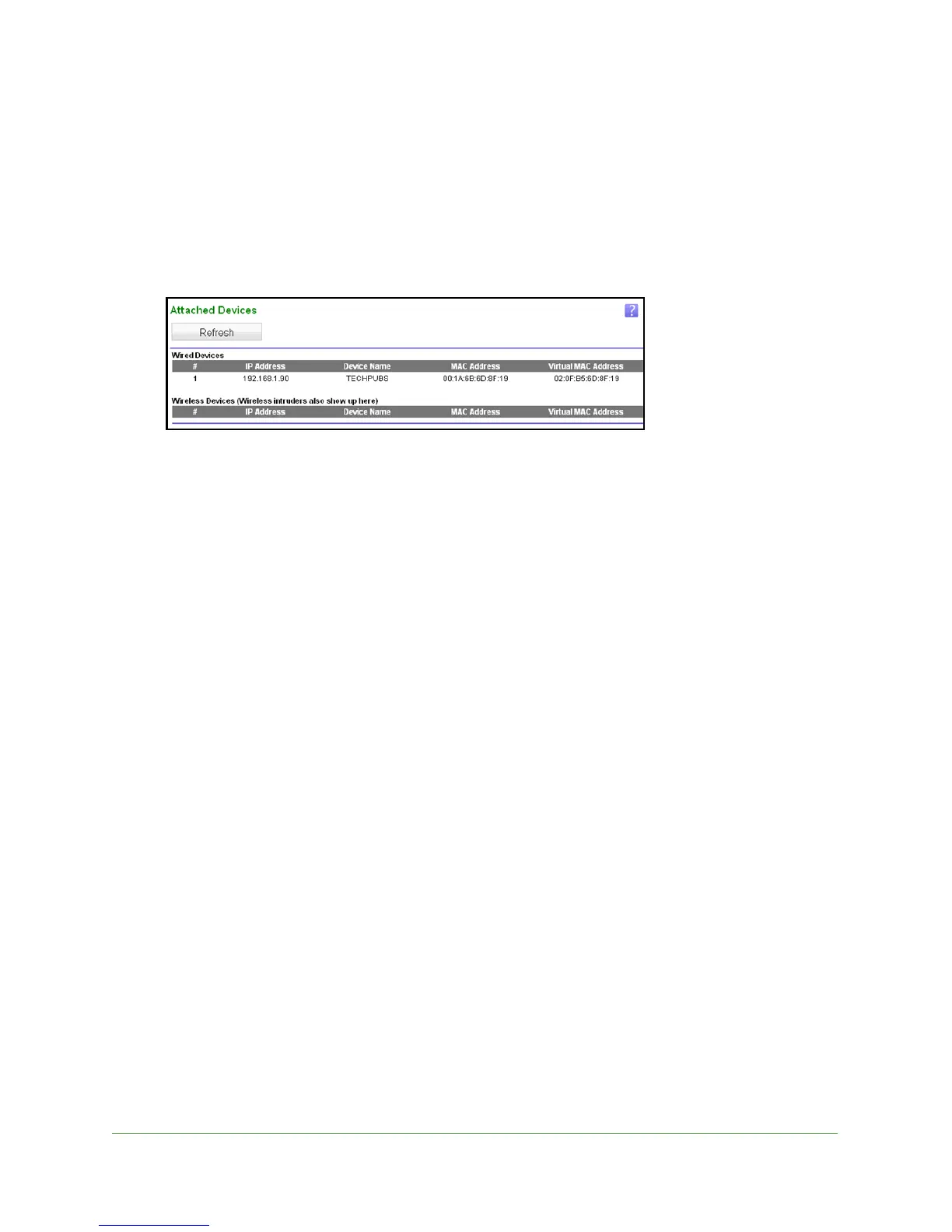

Attached Devices
Use the Attached Device screen to view all computers or devices that are currently
connected to your network.
 To view attached devices:
1. Select Maintena
nce > Attached Devices.
Wired devices are connected to the extender with Ethernet cables. Wireless devices
have joined the wireless network. The following information is displayed:
• # (n
umber). The order in which the device joined the network.
• IP Address. The IP a
ddress that the extender assigned to this device when it joined
the network. This number can change if a device is disconnected and rejoins the
network.
• MAC Address. The u
nique MAC address for each device does not change. The
MAC address is typically shown on the product label.
• Devic
e Name. If the device name is known, it is shown here.
2. Y
ou can click Refresh to update this screen.

on networks N300RE Specifications

General

Type	-
Maximum transfer distance	- m
Windows operating systems supported	Yes
Product color	White
Bandwidth	2.4 GHz
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Security algorithms	WPS
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi data rate (max)	300 Mbit/s
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Depth	45 mm
Width	74 mm
Height	112 mm
Weight	245 g
