on networks N300RE User Manual

Extender Network Settings
26
N300RE WiFi Range Extender

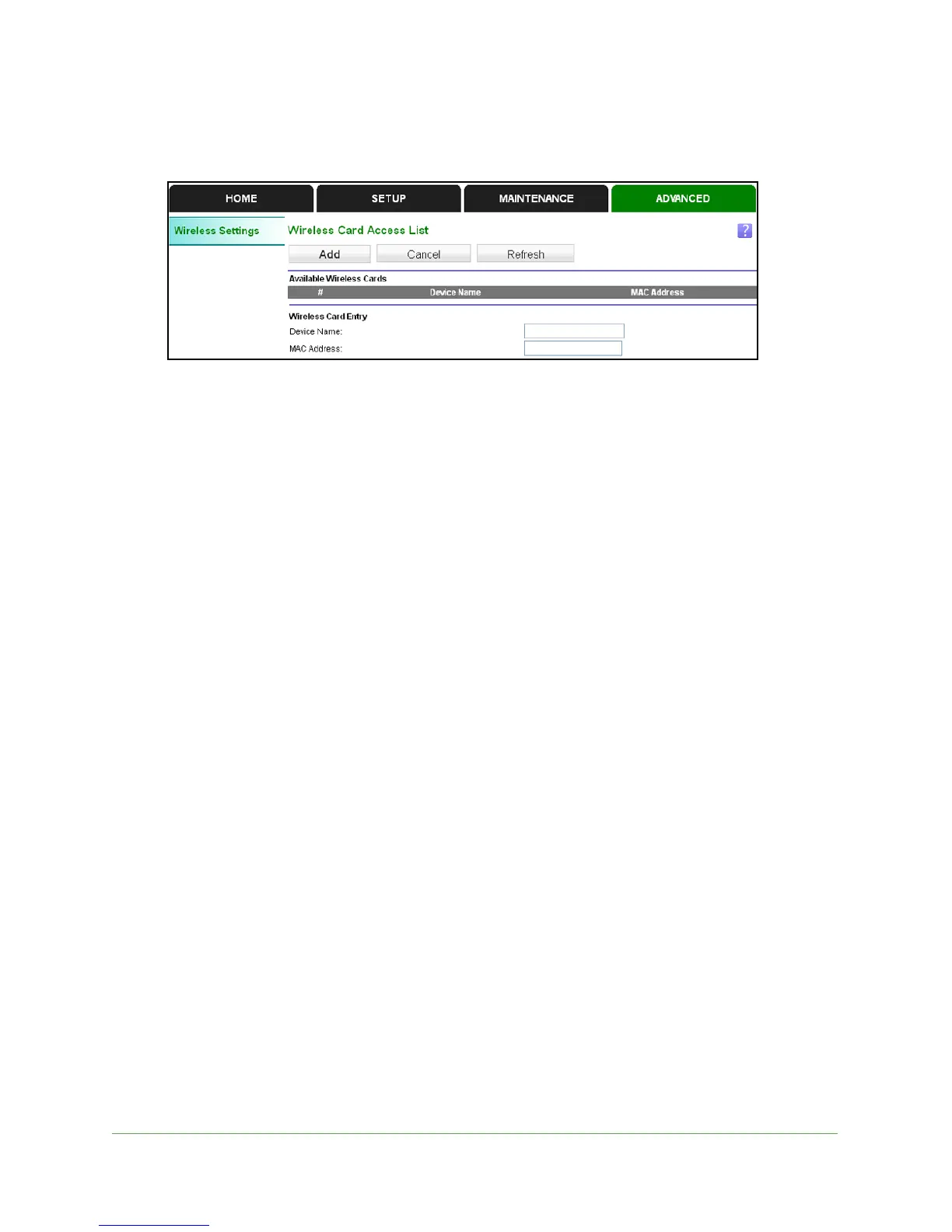

The Wireless Card Access Setup screen displays a list of currently active wireless cards
and their Ethernet MAC addresses.
4. If the computer or device you want is in the Available Wireless Cards list, select that radio
button; otherwise, type a name and the MAC address.
You can usually find the MAC address on the bottom of the wireless device.
Tip: Y
ou can copy and paste the MAC addresses from the Attached Devices
screen into the MAC Address field of this screen. To do this, use each
wireless computer to join the wireless network. The computer should
then appear in the Attached Devices screen.
5. Click Ad
d.
The screen changes back to the Wireless Card Access List screen
.
6. Add
each computer or device you want to allow to connect wirelessly.
7. Sele
ct the Turn Access Control On check box.
8. Click Ap
ply.
 To edit or delete a wireless device from the access list:
1. Select Adva
nced.
The Advanced Wireless Settings screen displays.
2. Click the Setup Access List but
ton.
3. In the t
able, select the radio button next to the wireless device that you want to edit or
delete.
4. Do
one of the following:
• Click the Edit b
utton.
The Edit Wireless Card screen displays.
a.Edit
the address information.
b. Click the
Accept button.
• Click the Delete butto
n.
The address is removed from the table.

on networks N300RE Specifications

General

Type	-
Maximum transfer distance	- m
Windows operating systems supported	Yes
Product color	White
Bandwidth	2.4 GHz
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Security algorithms	WPS
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi data rate (max)	300 Mbit/s
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Depth	45 mm
Width	74 mm
Height	112 mm
Weight	245 g
