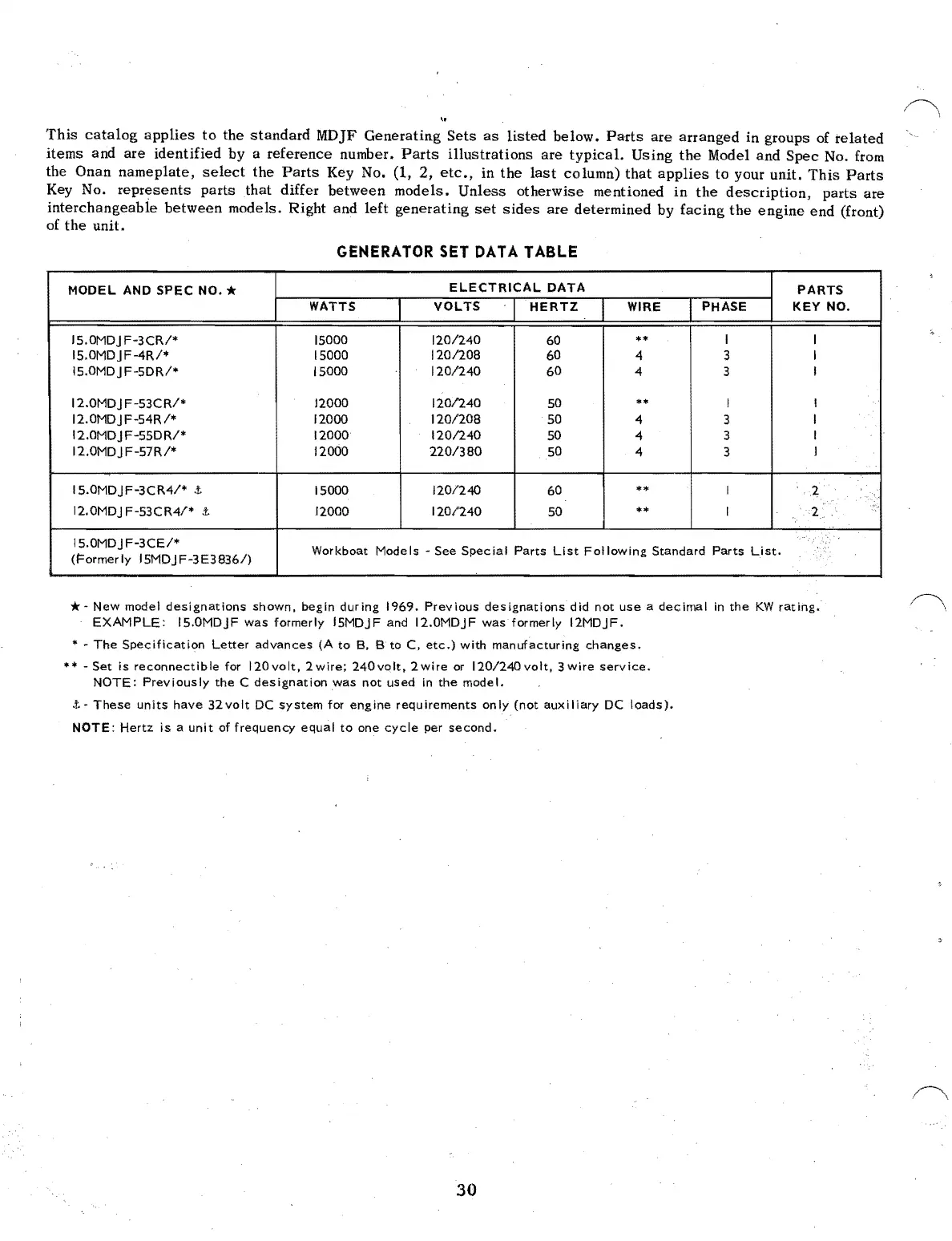

This catalog applies to the standard MDJF Generating Sets as listed below. Parts are arranged in groups of related
items and are identified by a reference number. Parts illustrations are typica1. Using the Model and Spec No. from
the Onan nameplate, select the Parts Key No. (1, 2, etc., in the last column) that applies to your unit. This Parts
Key No. represents parts that differ between models. Unless otherwise mentioned in the description, parts are
interchangeabie between models. Right and left generating set sides are determined by facing the engine end (front)
of
the unit.
GENERATOR SET DATA TABLE
MODEL AND SPEC NO. *
ELECTRICAL DATA
PARTS
KEY NO.
WATTS
VOLTS
HERTZ
WIRE
PHASE
J5.0MDjF-3CR/*
15.0MDjF-4R/*
15.0MDjF-5DR/*
12.0MD j F -53C R/*
12.0MDjF-54R/*
12.0MDjF-55DR/*
12.0MDjF-57R/*
15000
15000
15000
12000
12000
12000
12000
1201240
120/208
120/240
120/240
1201208
1201240
220/380
60
60
60
50
50
50
50
**
4
4
**
4
4
4
I
3
3
I
3
3
3
I
1
I
I
I
I
I
..
..
15.0MDJF-3CR4/* !
12.0MDJ
F-53CR4/*
!
15000
12000
1201240
120/240
60
50
**
**
I
I
2
2
',:
,:,
,.:
15.0MD j F-3CE/*
(Formerly 15MDJF-3E3836/)
Workboat
Models - See
Special Parts List Following Standard Parts List.
* New model designations shown. begin during 1969. Previous designations did not use a decimal in the KW rating.
EXAMPLE: 15.0MDJF was formerly 15MDJF and 12.0MDJF was formerly 12MDJF.
* -
The Specification Letter advances (A to B. Bto C. etc.) with manufacturing changes.
** - Set is reconnectible for 120volt. 2wire; 240volt. 2wire or 120/240 volt. 3wire service.
NOTE: Previously the C designation was not used in the model.
!- These units have 32volt DC system for engine requirements only (not auxiliary DC loads).
NOTE: Hertz is a unit of frequency equal to one cycle per second.
