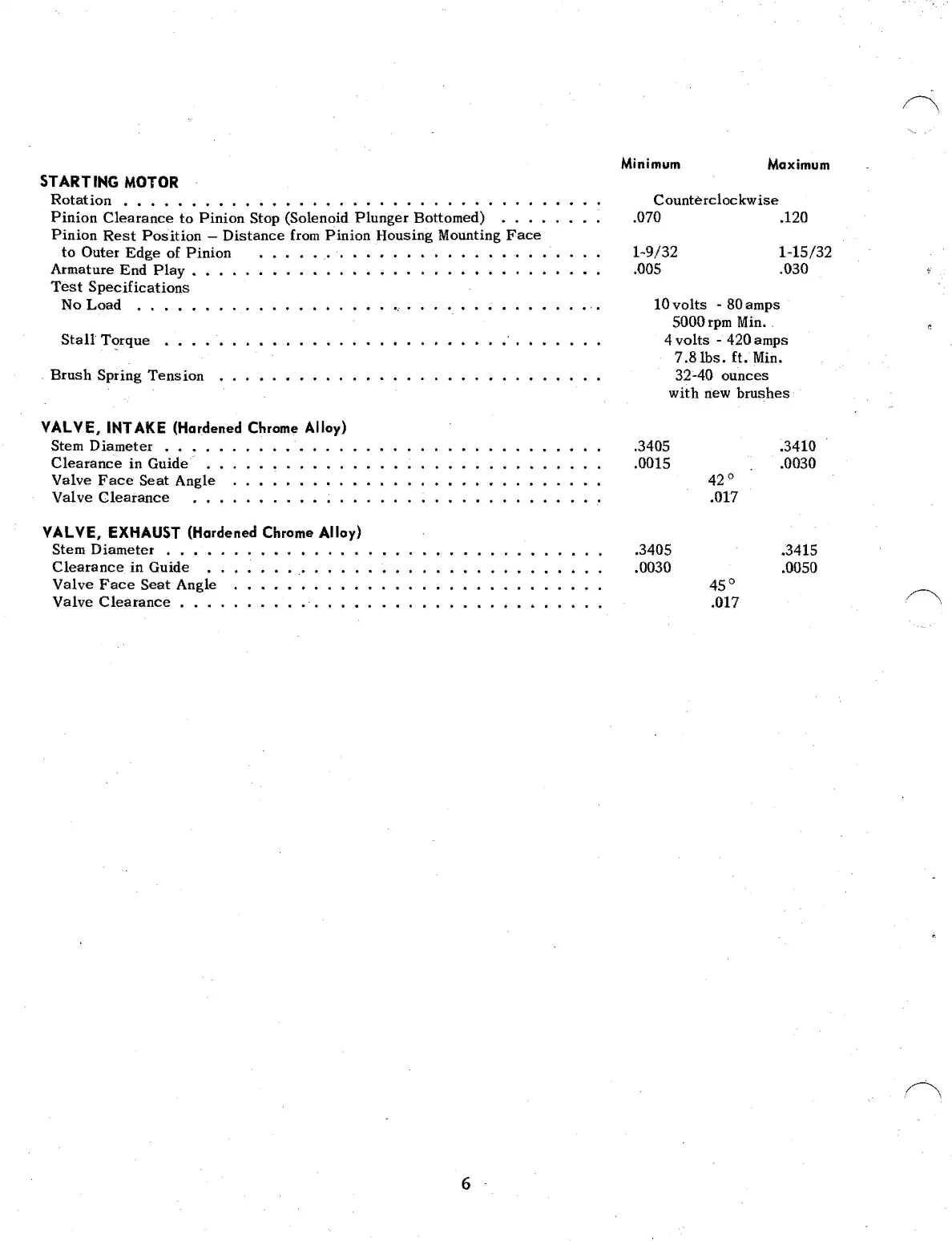

STARTING MOTOR
Rotation . • . • . . . . . • . . • . . • . • . . • . . . . . • . . • . .
Pinion Clearance to Pinion Stop (Solenoid Plunger Bottomed) •...
Pinion Rest Position - Distance from Pinion Housing Mounting Face
to Outer Edge of Pinion
Armature End Play .
Test Specifications
No Load •.
Stall T()rque
.
Brush Spring Tension
VALVE, INTAKE (Hardened Chrome Alloy)
Stem Diameter • . . ..
Clearance in Guide
Valve
Face Seat Angle
Valve
Clearance
VALVE, EXHAUST (Hardened Chrome Alloy)
Stem Diameter . . . • .
Clearance in Guide
..
Valve Face Seat Angle
Valve
Clearance • . . •
..
Minimum
Maximum
Counterclockwise
.070 .120
1-9/32 1-15/32
.005
.030
10
volts - 80 amps
5000
rpm Min.
4
volts - 420 amps
7.Blbs. ft. Min .
32~40 ounces
with new brushes
.3405 .3410
.0015 .0030
42°
.017
.3405
.3415
.0030 .0050
45°
.017
6
