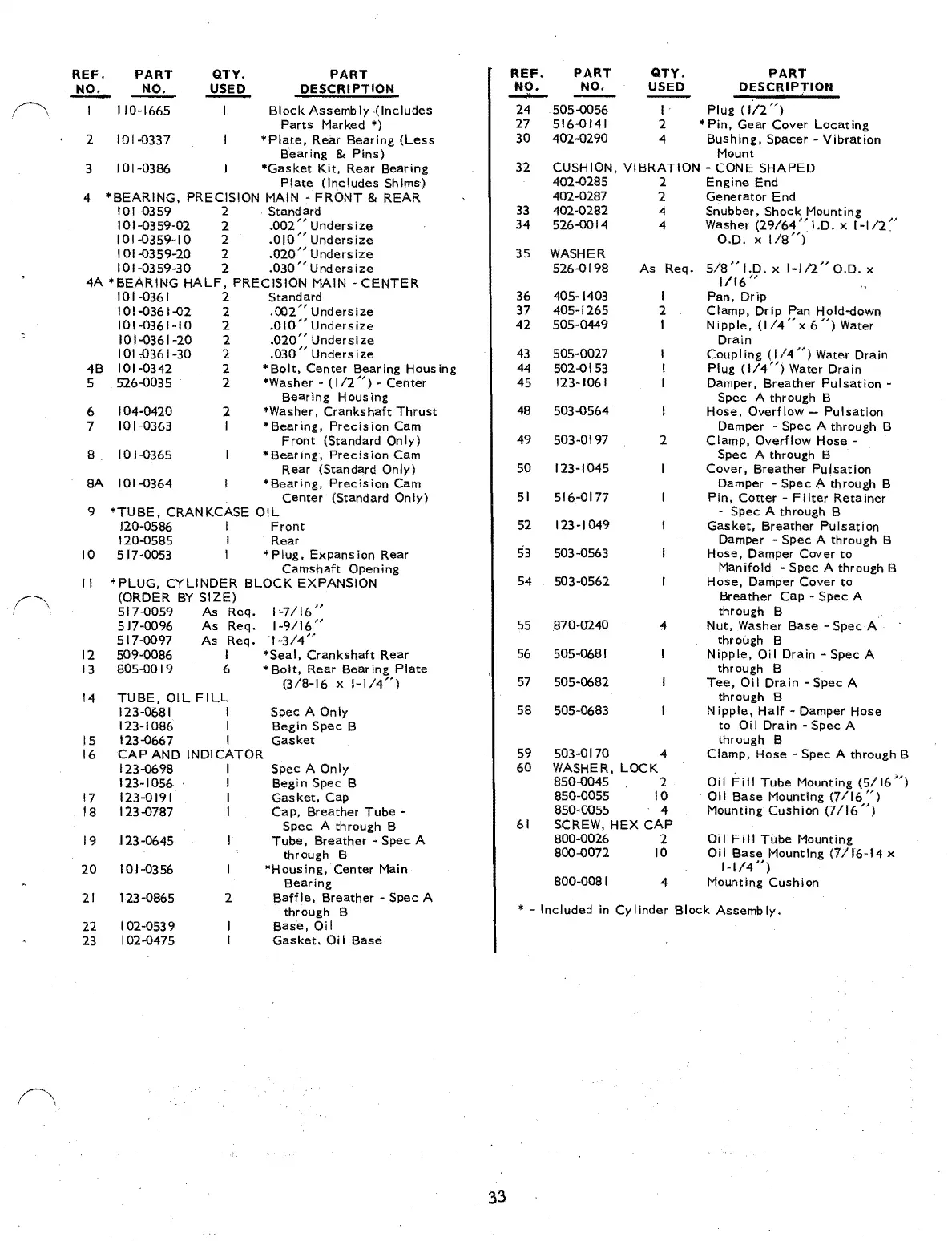

Onan 15.0MDJF-3CR User Manual

REF. PART
QTY.
PART
NO.
NO.
DESCRIPTION
~
-
f"\
I
110-1665
Block Assembly ·(Includes
Parts Marked
")
2 IOI-()337
*Plate, Rear Bearing (Less
Bearing & Pins)
3
101-0386
·Gasket Kit. Rear Bearing
Plate (Includes Shims)
4
·BEARING, PRECISION MAIN
FRONT & REAR
101-0359
2
Standard
101-0359-02
2
.002" Undersize
101-0359-10 2
.0 ION Unders ize
101-0359-20 2 .020" Undersize
101-0359-30
2
.030" Unders ize
4A ·BEARING HALF, PRECISION MAIN -CENTER
101-0361 2 Standard
10! -0361-02
2
.():)2" Undersize
101-0361-10
2
.010" Undersize
101-0361-20 2 .020" Undersize
101,,0361-30 2 .030" Unders i ze
4B
101-0342
2
"Bolt, Center Bearing Hous ing
5
.526-0035 2
.Washer - (112
n) - Center
Bearing H ous lng
6
104-0420
2
"Washer,
Crankshaft Thrust
7
101-0363 I
"Bearing, Precision Cam
Front (Standard Only)
8
101-0365
"Bearing, Precision Cam
Rear
(Stand~rd Only)
8A 101-0364 "Bearing, Precision Cam
Center (Standard
Only)
9
·TUBE, CRANKCASE OIL
120-0586
I
Front
120-0585
I Rear
10 517-0053
I
·Plug, ExpanSion Rear
Camshaft Opening
11
·PLUG, CYLINDER BLOCK EXPANSION
(ORDER BY SI ZE)
i~\
517-0059
As
Req.
1-7/16"
517-0096
As Req. 1-9/16"
517-0097
As Req.
1-3/4"
12
509-0086
1
"Seal, Crankshaft Rear
13
805-0019 6
·Bolt, Rear Bearing Plate
(3/8-16 x 1-114")
14
TUBE, OIL FILL
123-0681
I Spec A
Only
123-1086 I Begin Spec B
15
123-0667
I
Gasket
16
CAP AND INDICATOR
123-0698
I
Spec A
Only
123-105& I Begin Spec B
17
123-0191
I
Gasket. Cap
18
123-0787
I
Cap. Breather Tube -
Spec A through B
19 123-0645 Tube, Breather - Spec A
through B
20
101-0356
·Hous ing, Center Main
Bearing
21 123-0865 2
Baffle, Breather - Spec A
through B
22
102-0539
Base, Oil
23
102-0475
Gasket. OJ I Base
REF.
PART QTY.
PART
NO.
NO.
USED
DESCRIPTION
,
-
24 505-0056
I
Plug (1/2")
27 516-0141
2
• Pin, Gear Cover
Locat jng
30 402-0290
4
Bushing, Spacer - Vibration
Mount
32
CUSHION,
VIBRATION - CONE SHAPED
402-0285
2
Engine End
402-0287
2
Generator End
33 402-0282
4
Snubber, Shock Mounting
34 526-0014
4
Washer
(29/61:'1.0. x 1-112"
O.D. x 1/8 )
3S
WASHER
526-0198 As Req.
5/8" 1.0. x 1_112" 0.0. x
1116"
36 405-1403 I
Pan,
Drip
37
405-1265
2 Clamp, Drip Pan Hold-down
42 505-0449
I
Nipple, (1/4"x 6") Water
Drain
43 505-0027
Coupling (1/4") Water Drain
44 502-0153 Plug (1/4") Water Drain
45
123-1061
Damper, Breather
Pu Isation -
Spec A through B
48
503-0564
Hose,
Overflow - Pulsation
Damper - Spec A through B
49
503-0197 2
Clamp, Overflow Hose
Spec A through B
50 123-1045
Cover, Breather Pulsation
Damper - Spec A through B
51 516-0177
Pin, Cotter - Filter Retainer
- Spec A through B
52 123-1049
Gasket, Breather Pulsation
DamPer - Spec A through B
53 503-0563
Hose, Damper Cover
to
Manifold - Spec A through B
54
503-0562 Hose, Damper Cover
to
Breather Cap - Spec A
through B
55 870-0240
4
Nut, Washer Base - Spec A
through
B
56 505-0681
Nipple, Oil Drain - Spec A
through B
57 505-0682
Tee, Oil Drain -Spec A
through B
58
505-0683 Nipple, Half - Damper Hose
to
Oil Drain - Spec A
through B
59 503-0170
4
Clamp, Hose
Spec A through B
60
WASHER, LOCK
850-0045
2
Oil Fill Tube Mounting (5/16")
850-0055
10 Oil Base Mounting (7/16°)
850-0055
4
Mounting Cush ion
(7/16")
61
SCREW, HEX CAP
800-0026
2
Oil Fill Tube Mounting
800-0072
10
Oil Base Mounting (7/16-14 x
1-1/4")
800-0081
4
Mounting Cushion
•
Included in Cy I inder Block Assemb Iy •
33

Onan 15.0MDJF-3CR Specifications

General

Brand	Onan
Model	15.0MDJF-3CR
Category	Portable Generator
Language	English
