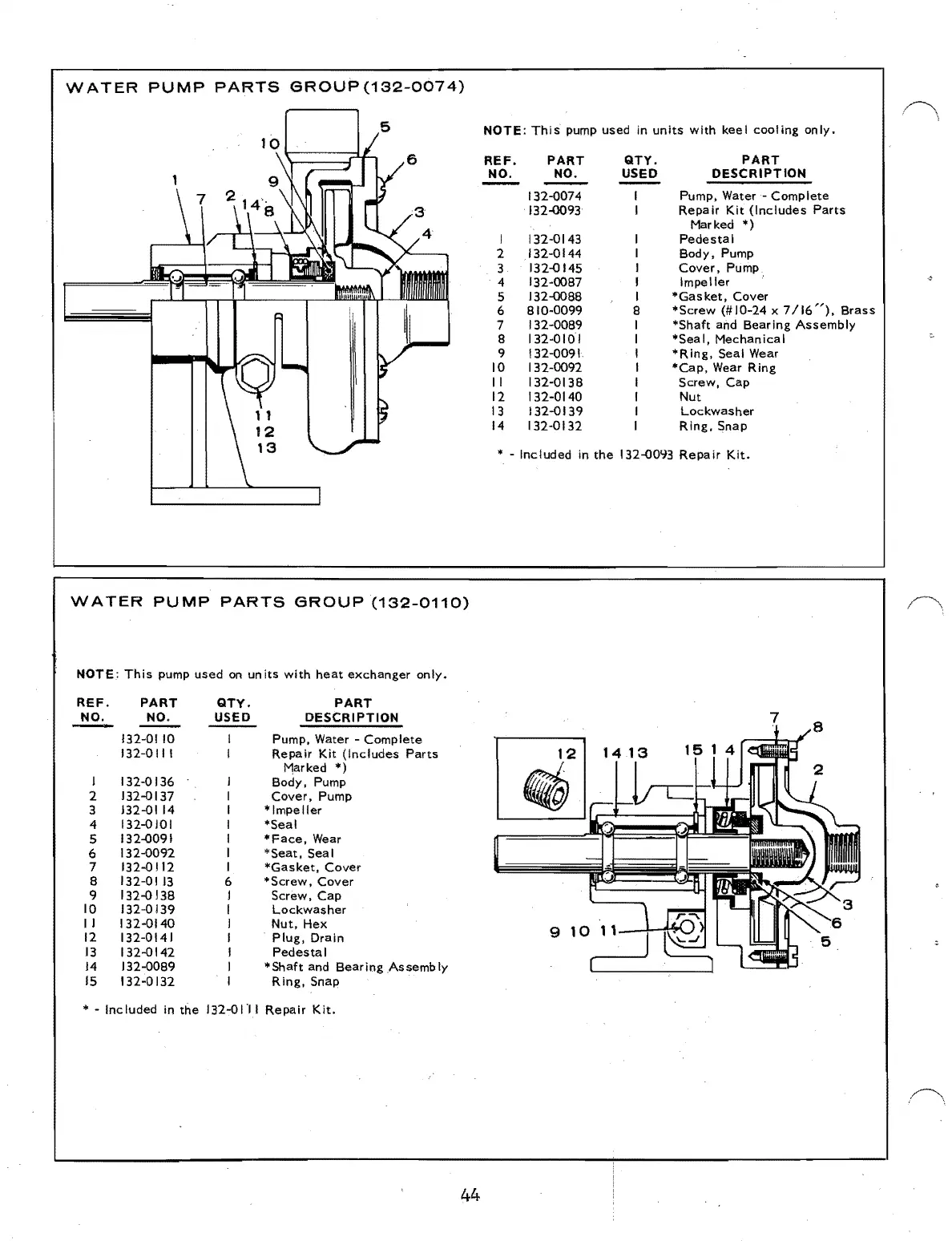

WATER PUMP PARTS GROUP(132-0074)
NOTE: This pump used in units with keel cooling only.
REF.
PART QTY.
PART
NO. NO. USED
DESCRIPTION
132-0074
Pump,
Water- Complete
132-0093
Repa ir
Kit (Includes Parts
Marked "')
1 132-0143 I
Pedestal
2
132-0144
I
Body, Pump
3
132-0145
1
Cover, Pump
4 132-0087
I
Impeller
5
132-0088 I
"'Gasket, Cover
6
810-0099
8
"'Screw (#10-24 x 7/16"), Brass
7
132-0089 I
"'Shaft and Bearing
Assembly
8
132-0101
I
"'Seal, Mechanical
9
132-0091 1
"'Ring, Seal Wear
10 132-0092
I
*Cap, Wear Ring
II
132-0138 1
Screw, Cap
12 132-0140 I
Nut
13 132-0139 I
Lockwasher
14
132-0132 I
Ring, Snap
'" - Included in the 132-0093 Repair Kit.
WATER PUMP PARTS GROUP (132-0110)
NOTE: This pump used on un its with heat exchanger only.
REF.
PART
QTY. PART
NO. NO. USED
DESCRIPTION
7
132-0110
Pump, Water - Complete
132-0111
Repair
Kit (Includes Parts
Marked *)
I
132-0136
I
Body, Pump
2 132-0137 I
Cover, Pump
3
132-01 14 I
"'Impeller
4
132-0101
I
"'Seal
5
132-0091
I
*Face, Wear
6
132-0092 I
"'Seat, Seal
7 132-0112
I
"'Gasket,
Cover
8 132-0113
6 "'Screw, Cover
9 132-0138 I Screw, Cap
10 132-0139
I
Lockwasher
II 132-0140
I
Nut, Hex
12
132-0141
I
Plug, Drain
13 132-0142
I Pedestal
14 132-0089
I
'" Shaft and Bearing Assemb Iy
15 132-0132 I Ring, Snap
'" - Inc luded in the
132-01"11 Repair Kit.
8
12
•
9
1
44
